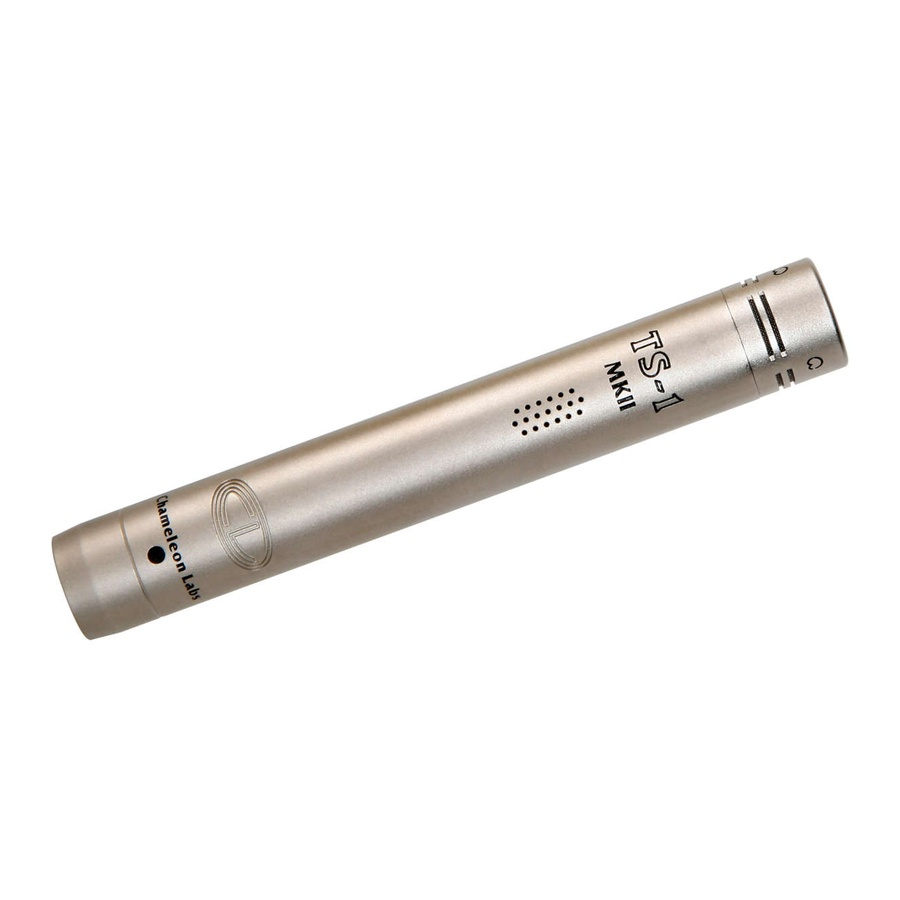

- Page 1 Chameleon Labs Model TS-1 Tube Condenser Microphone Owner’s Manual 704 228 Avenue NE, # 826 Sammamish, WA 98074 206-264-7602 www.chameleonlabs.com...
- Page 2 After ten to fifteen seconds, you can lift the STANDBY switch. The TS-1 will soon begin to output an audio signal from the 3-pin XLR jack. It requires about five minutes for the microphone to warm up completely, though a period of fifteen minutes is recommended to assure that the TS-1 has fully stabilized and has attained its optimum operating temperature.
- Page 3 It is not recommended that you use the TS-1 as a hand held microphone, or as a vocal microphone without a windscreen, or outdoors use on a windy day. This is because it has no internal shock mount or pop filter.
- Page 4 If you are not going to use your TS-1 for a long period of time, leave the microphone on for an extra 15 minutes after you are finished with it. This will drive out moisture that may have accumulated around the capsule during the session.
-
Page 5: Specifications
MODEL NUMBER ___________________________ SERIAL NUMBER ____________________________ DATE OF PURCHASE __________________________ PURCHASED FROM ___________________________ Specifications Output impedance: 200 ohms Sensitivity: -35dB (@ 1 KHz, re 0dB=1V/Pa) Noise: 19dB-A Maximum Output: 1.5, ~ 130dB SPL Frequency Response: Cardioid capsule – 70Hz – 20 kHz +/- 4 dB. Omni capsule –...
