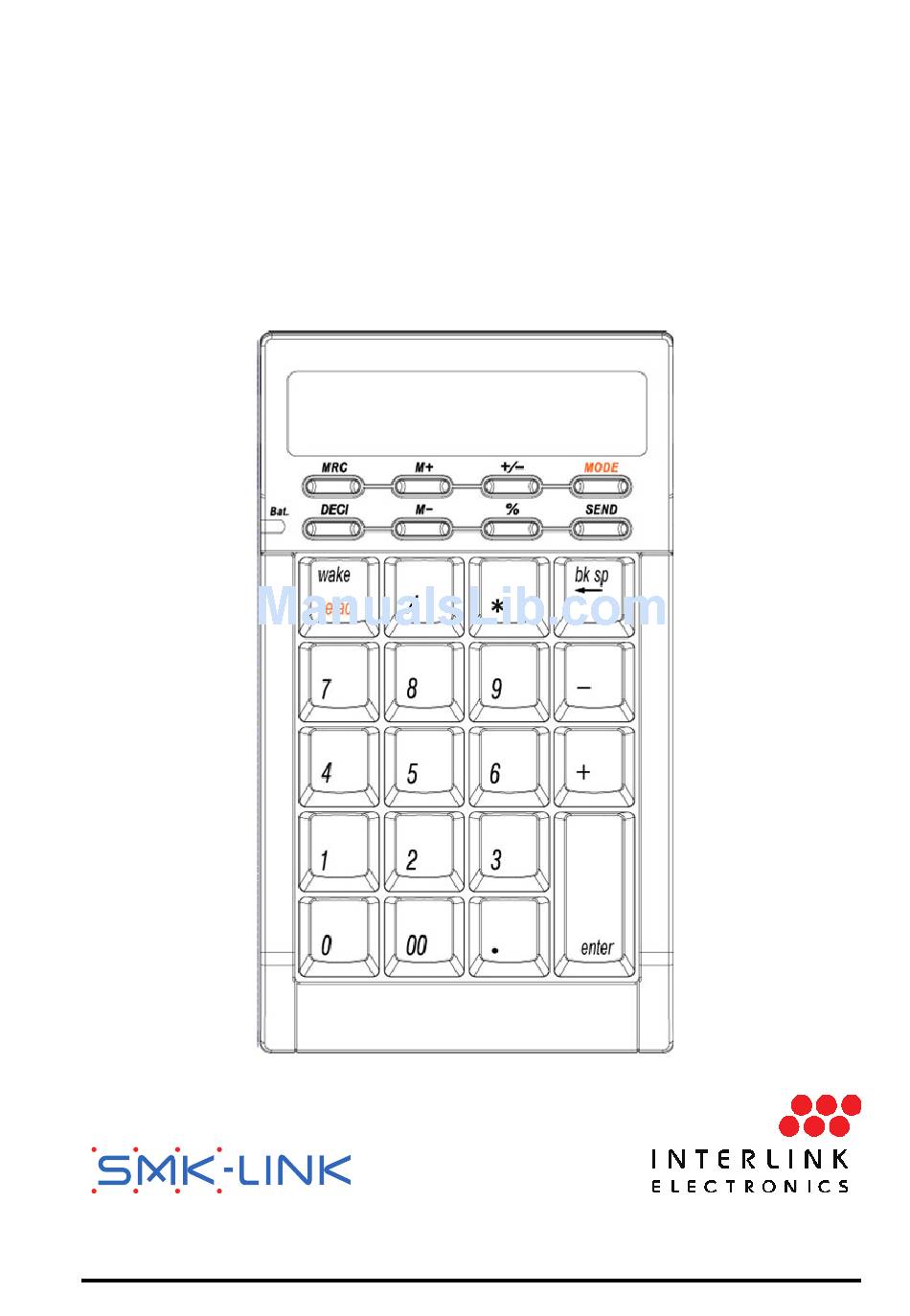

- Page 1 User’s Manual Bluetooth Calculator Keypad Page ...
- Page 2 Regulatory Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
-
Page 3: Declaration Of Conformity
The term “IC” before the certification/registration number only signifies that the Industry Canada technical specifications were met. Declaration of conformity Hereby, SMK-Link Electronics Corporation declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. -
Page 4: System Requirements
• Exception: Please note that this keypad supports OS using English alphabets on most keyboards with the exception of French keyboard layout. Package Contents • Bluetooth calculator keypad • 2 x AAA batteries • User’s manual Installing Batteries (Supplied) •... - Page 5 On/Off Connect • Snap the battery cover back into position. • Before connecting the keypad with your Bluetooth computer you must turn the keypad power on by sliding the on/off switch located at the bottom of the keypad to the ON position. Do not mix new and used batteries in •...
- Page 6 Before you can use Bluetooth devices for the first time you must connect your devices through a standard discovery and pairing process. The Interlink Bluetooth Calculator Keypad is designed to work with Bluetooth-enabled systems. Please review the documentations that come with your computer system...
- Page 7 Right click the Bluetooth icon located on your Desktop or the System Tray, select Add a Bluetooth Device. At this point, the keypad must be placed in discovery mode. First make sure the keypad is turned on (check the on/off switch located at the bottom of the keypad) then press the Connect button ...
- Page 8 The Interlink Bluetooth Calculator Keypad will be discovered and listed on the screen. Highlight the name of the device and click Next. The Bluetooth Wizard will ask you for a passkey. Select Choose a passkey for me and click Next.
- Page 9 The Wizard will provide you with a passkey. Use your Bluetooth keypad to enter the numbers displayed on the screen, followed by pressing the “enter” key on your keypad. Note: please do not use your keyboard to enter the passkey although the Wizard calls the keypad a keyboard.
- Page 10 OS will install the driver automatically. No other steps are necessary. The Bluetooth icon will turn to green. Your Bluetooth Calculator Keypad is ready to use. Macintosh Bluetooth Software Make sure your computer’s Bluetooth radio is turned on. Make sure your keypad is on Keypad Mode.
- Page 11 Or, click the Apple icon and click System Preferences, then click on the Bluetooth icon. Select Turn Bluetooth On to enable Bluetooth for your Macintosh computer if it’s not already on. Page ...
- Page 12 Select Set Up New Device. Bluetooth Setup Assistant screen will show up. Click Continue. At this point, the keypad must be placed in discovery mode. First make sure the keypad is turned on (check the on/off switch located on the bottom of the keypad) then press the Connect button ...
- Page 13 “keyboard” during the setup process. The computer will search for Bluetooth devices in the range (within 33 feet or 10 meters) and list each device on the screen. Select Interlink Bluetooth Calculator Keypad and click Continue. Page ...
- Page 14 The Wizard will provide you with a passkey. Use your Bluetooth keypad to enter the numbers displayed on the screen, followed by pressing the enter key on your keypad. Note: please do not use your keyboard to enter the passkey. You must type the numbers using the Bluetooth keypad you are connecting with.
- Page 15 12. On the Conclusion screen, click Quit to exit setup. Your Bluetooth Calculator Keypad is successfully installed. Page ...
- Page 16 Using the Bluetooth Calculator Keypad Mode Switch Between Keypad & Calculator Power-low indicator Send Calculated Numbers to PC (Note: only Wake-up numbers are sent; “enter” key doesn’t work on the PC under Calculator Mode) Press “enter” key to activate the Bluetooth connection every time the keypad is powered on.
- Page 17 feature is normally used when you need to transport the keypad. By turning off the keypad you can prevent power loss during travel. Remember to power on when you are ready to use the keypad. Activate Bluetooth Connection • When the keypad power is turned off, it sends the Bluetooth to inactive mode.
- Page 18 Mode Switch Between Calculator and Keypad • To switch between calculator and keypad modes, press the MODE key. The mode you are in is indicated on the LCD display. Sending Calculated Result to Your Computer • When the keypad is in calculator mode, you can send the calculated result to the cursor location on your computer’s active document by pressing the SEND key.
- Page 19 Function Key Function Definition Pressing once transfers the number in the memory onto the LCD display. Pressing again clears the value stored in the memory. DECI Specifies the number of decimal places in rounding Changes signs for the displayed value between positive (+) and (-) Converts number into percentage when combined...
- Page 20 LCD Display Status Indicators: Display Definition - MINUS Negative value indicator Memory calculator functions (M+, M-, MRC) are engaged Error indicator ‘ (apostrophe) 3-digit separator CALC Calculator mode and calculator functions are engaged KEYPAD Keypad mode is engaged, values will be shown on your computer and will not be displayed on the LCD Grand total...
- Page 21 Display Definition Auto mode automatically adds a decimal point and 2 decimal places to all values entered. Examples: •Enter “1” resulting in “0.01” •Enter “10” resulting in “0.10” •Enter “100” resulting in “1.00” •Enter “1000” resulting in “10.00” •Enter “1.1” resulting in “1.10” •Enter “1.499”...
- Page 22 Bluetooth software update on your system vendor’s website. Warranty: SMK-LINK Electronics warrants to the original end-user purchaser of the Product (“you”) that the Product, excluding batteries, will be free from defects in materials or workmanship under normal use and service for one-year from date of purchase.
- Page 23 In no case shall SMK-LINK Electronics be liable for any indirect special, incidental, or consequential damages based upon breach of warranty, breach of contract, negligence, strict tort or any other legal theory.
-
Page 24: Thank You
Thank you for purchasing the Bluetooth Calculator Keypad. We know you had other choices and we appreciate that you chose Interlink Electronics Bluetooth Calculator Keypad by SMK-LINK for your product needs. So that we may better serve you in the future, please register online at www.smklink.com/register.
