SMK-Link iCalc VP6274 User Manual

Bluetooth calculator keypad
Hide thumbs Also See for iCalc VP6274:

Advertisement

iCalc
RemotePoint
Sapphire Presenter
VP4585
Bluetooth
Calculator Keypad
®
VP6274

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iCalc VP6274 and is the answer not in the manual?

Questions and answers

Summary of Contents for SMK-Link iCalc VP6274

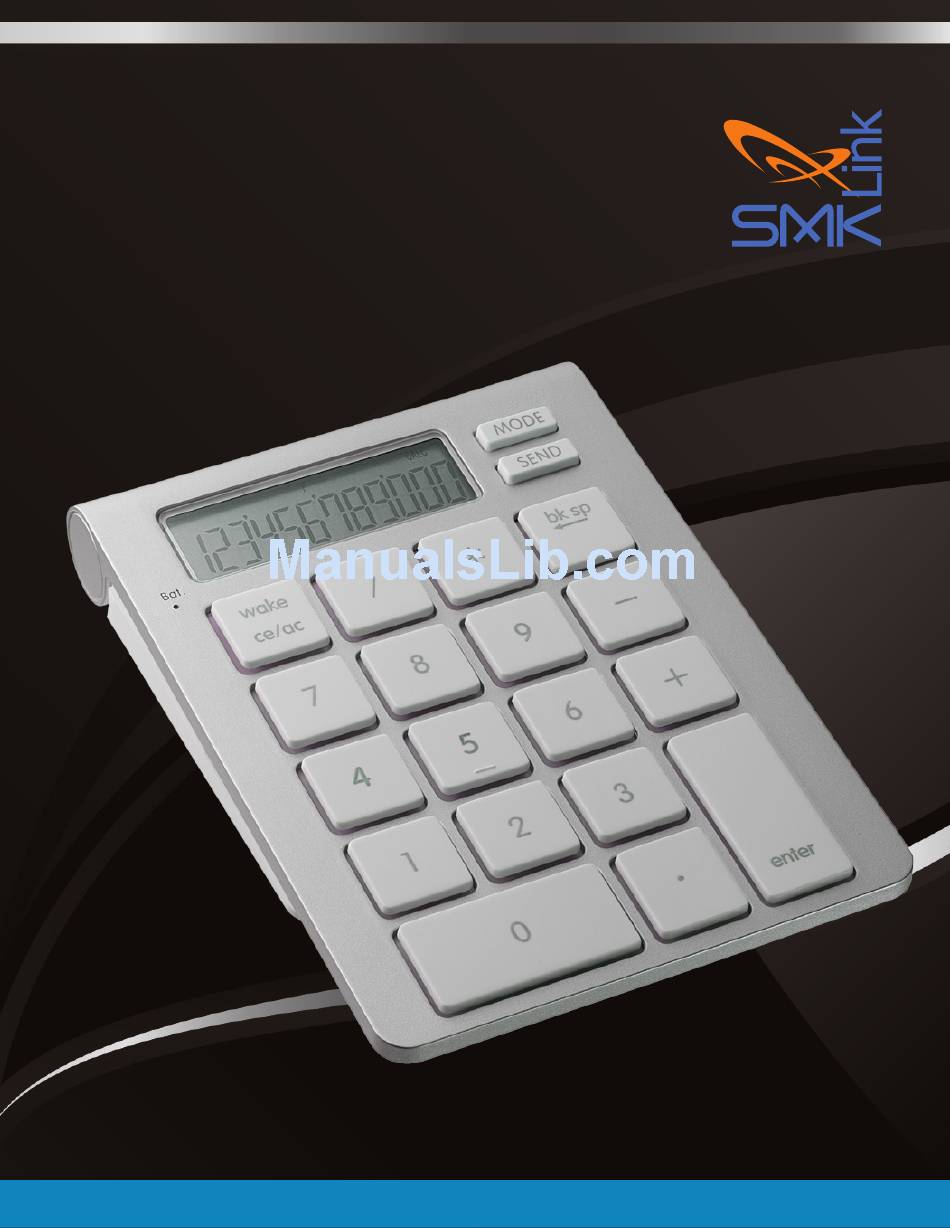

  • Page 1 iCalc RemotePoint ™ Sapphire Presenter VP4585 Bluetooth Calculator Keypad ® VP6274...
  • Page 2: System Requirements

    System Requirements Hardware: Package Contents: • Bluetooth-enabled • iCalc Bluetooth ™ computer (with Calculator Keypad either built-in • Magnetic Alignment Bluetooth wireless Wedge capability or external Bluetooth dongle) • 2 x AAA Batteries • Optional for the iCalc • Quick Reference attachment: Apple ®...
  • Page 3 Magnetic Alignment Wedge 2x AAA iCalc Bluetooth ™ Batteries Calculator Keypad (supplied) Page...
  • Page 4 Step 1 Install Batteries (Supplied) • Remove the battery cover from the bottom of the iCalc. • Insert the 2 AAA batteries (supplied) into the battery slots. Make sure the positive (+) and negative (-) ends of the batteries match the polarity markings inside the battery compartment.
  • Page 5 Battery Door Mac / PC Conn. Switch Button Battery On/Off Compartment Switch Page...
  • Page 6 Step 2 (Optional - For Magnetically Aligning the iCalc to the Apple Wireless Keyboard) This step is optional if side of the keyboard. you wish to magnetically • Affix the wedge to align the iCalc to the the Apple Wireless Apple Wireless Keyboard.
  • Page 7 Remove the Affix the wedge to the keyboard (Edge of the wedge aligns with the side of Sticker the keyboard) Place the iCalc to the right of the keyboard Page...
  • Page 8 Step 3 Connect the iCalc to Your Bluetooth Computer • Make sure the power is on and the OS Selector at the bottom of the keypad is switched to the correct OS. The LCD display should say “On Keypad” and a “0” is displayed. •...
  • Page 9 Mode by tapping on the Mode key until the word “Keypad” appears on the LCD display. Note: The iCalc defaults to Keypad Mode when you turn the power on. If it was switched to Calculator Mode, you must press the Mode key to switch it to Keypad Mode before connecting to your Bluetooth computer.
  • Page 10 and click “Continue.” • Select “Bluetooth Calculator Keypad” and click on “Continue.” • On your iCalc Bluetooth Calculator Keypad, type the passkey (numbers) provided on your computer screen, followed by “enter” key on the keypad. Please note that the numbers will not be displayed on the keypad’s LCD screen as you type them in.
  • Page 11 of the keypad. The battery indicator LED will begin flashing green. • Click on the Bluetooth icon on your computer screen, or access the Control Panel of your computer and select “Devices and Printers”. Click on “Add a Device”. The computer will display Bluetooth devices within range.
  • Page 12: Function Keys

    Step 4 Using the iCalc Bluetooth Calculator Keypad Function Keys MODE Switch between Keypad (communicating with your computer) and Calculator (offline) modes. SEND Send the calculation result displayed on the keypad LCD to the computer when the device is in Calculator Mode. WAKE Press once to wake the keypad from sleep mode.
  • Page 13 Operation Status CALC GT Allows for cumulative arithmetic operations. • Your iCalc Bluetooth Calculator Keypad is designed with a power-saving feature which goes into sleep mode with the LCD display shuting off after approximately 30 minutes of inactivity. To wake up the keypad from sleep mode, press the “WAKE”...
  • Page 14: Warranty

    Product regulatory label has been removed, altered or rendered illegible; nor does it cover accessory or consumable items. SMK-Link shall not be liable for any indirect special, incidental, or consequential damages. SMK-Link’s total liability for damages for any cause related to, or arising out of, the use or inability to use the Product shall not exceed the original price paid for the Product even if SMK-Link has been informed of such possibility.
  • Page 15: Regulatory Compliance

    Link is at your expense. The contact information can be found on the SMK-Link website: www.smklink.com. The warranty does not affect your statutory rights and you may have other rights which vary from state to state and country to country. This warranty is understood to be the complete...
  • Page 16 against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed correctly and used in accordance with the instruction guide, it may cause harmful interference to radio communications. However, there is no guarantee that this radio interference will not occur in a particular installation.
  • Page 17: Declaration Of Conformity

    Declaration of Conformity Manufacturer: SMK-Link Electronics Corporation 3601-B Calle Tecate Camarillo, CA 93012 Hereby, SMK-Link declares that the VP4585 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. EMC/EMI/Safety Standards EN 300 440-2 V1.1.1 (2001-09) EN 301 489-1 V1.4.1 (2002-08)
  • Page 18 Link Electronics to meet your wireless needs and look forward to serving you in the future. To learn about new SMK-Link products as they become available, and to ensure the best possible customer support, please register your product online at www.smklink.com/register.
  • Page 19: Canada, Industry Canada (Ic) Notices

    ©2013 SMK-Link Electronics Inc. SMK-Link, the SMK-Link logo, and iCalc are trademarks of SMK-Link Electronics, Inc. Bluetooth® is a registered trademark of Bluetooth SIG, Inc. Apple, MacBook, and iMac are registered trademarks of Apple Inc. Windows is a registered trademark of Microsoft Corporation in the United States and other countries.
