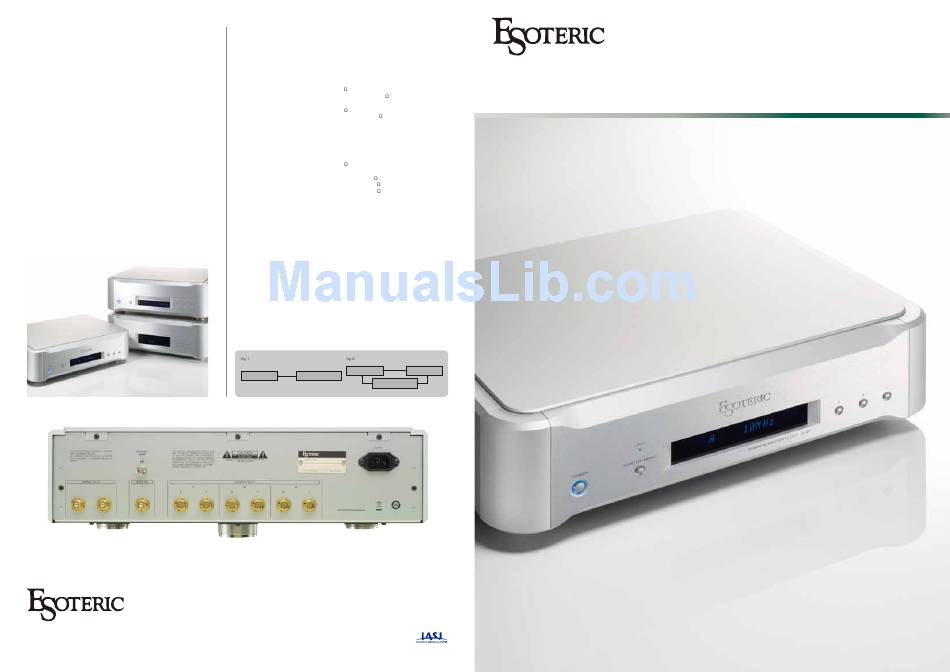

Esoteric G-01 Specifications

ESOTERIC's original gold-plated BNC ports
G-01 uses ESOTERIC's original BNC ports that provide highly reliable
contact. These durable and secure ports can handle even the heaviest
and thickest high-end cables.
Superb chassis construction for optimal performance
Since the oscillator is generally susceptible to vibrations, chassis
construction has been designed with the utmost care. G-01 has an
extraordinarily thick and highly-rigid aluminum chassis that minimizes the
small vibrations that could affect clock precision.
Aesthetic rounded form
Thick aluminum material is used for the front, side and top panels, as well
as the front corners. The G-01 chassis design has inherited the tradition
of the rest of the ESOTERIC product line with screw-less rounded top and
corners. The appearance of G-01 is in perfect harmony with ESOTERIC
digital players.
The front panel, engraved with the ESOTERIC logo, is finished off with a
refined short scratch proof material and gives off an aura of dignity as the
main component controlling the entire operation of a digital reproduction
system.
P R O U D L Y M A D E I N T O K Y O
ESOTERIC COMPANY
1-47 Ochiai, Tama-shi, Tokyo 206-8530, Japan
Fax: (042)356-9240
www.esoteric.jp http://esoteric.teac.com/
Specifications
Clock outputs
CLOCK OUT
44.1 kHz setting 44.1, 88.2, 176.4, 352.8, 705.6 kHz
1.4112, 2.8224, 5.6448, 11.2896, 22.5792 MHz
48 kHz setting 48, 96, 192, 384, 768 kHz
1.536, 3.072, 6.144, 12.288, 24.576 MHz
Both settings 100 kHz, 10 MHz
Connectors BNC coaxial (75 )
Output level Rectangular wave (TTL level / 75 )
10MHz OUT 10 MHz
Connectors BNC coaxial (50 )
Output level Sine wave : 0.5 ± 0.1 Vrms / 50
Master clock input
Input frequency
Rb+EXT1pps mode 1pps signal (GPS precision or better)
Rb+EXT10M mode 10MHz (GPS precision or better)
EXT 10M-IN mode 10 MHz (within ±10 ppm)
Connector BNC coaxial (50 )
Input levels
10MHz Sine wave: 0.5–1.0 Vrms/50
Square wave:1.5–3.0 Vpp/50
1pps signal Positive pulse,TTL level/100 k
Output clock stabilization (approximate time in minutes)
Until oscillator stabilizes after power turned on 10
PLL locking time 1
1pps locking time 10
Frequency stability Within ±0.1 ppb (-20°C to +65°C)
Frequency precision Within ±0.05 ppb (when shipped new)
General
Power supply AC 230V, 50Hz
AC 120V, 60Hz
AC 220V, 60Hz
Power consumption 85W (while warming up)
28 W (when stable)
Dimensions (W × H × D) (including protrusions)
445 x 131 x 360 mm (17 1/2"x 5 1/8"x 14 1/8")
Weight 13kg (28 1/2 lbs)
Included accessories
Power cord x 1
Owner's manual x 1
Warranty card x1
Digital Audio
SACD/CD Transport
Clock
SACD/CD Player Master Clock Generator
Clock
Master Clock Generator
- This product is available in three different power supply variations shown in the chart above. Make sure that the voltage shown on the rear panel matches the
AC line voltage in your area.
- The shape of the AC inlet and plug of the supplied power cord depends on the voltage rating and destination country.
- Specifications and appearance are subject to change without notice.
- Weight and dimensions are approximate.
Please note that Esoteric products are available at authorized distributors in respective countries.
" ESOTERIC " is a trademark of TEAC Corporation, registered in the U.S. and other countries. "Super Audio CD" is a registered trademark.
©2012 TEAC Corporation. All Rights Reserved. All text, images, graphics and other materials on this catalogue are subject to the copyright and other intellectual
property rights of TEAC Corporation. These materials shall not directly or indirectly be published, reproduced, modified or distributed in any medium.
Design and specifications are subject to change without notice.
