Esoteric G-0s Owner's Manual

Esoteric G-0s Owner's Manual

Master clock generator
Hide thumbs Also See for G-0s:
Table of Contents

Advertisement

Quick Links

G - 0s
Master Clock Generator
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G-0s and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Esoteric G-0s

  • DVD Player Esoteric A-100 Product Comparisons
    DVD Player Esoteric A-100 Product Comparisons
    Cd/sacd and cd/sacd/dvd-a audio players, cd/sacd/dvd audio video players, disc transports, digital to analog converters, integrated amplifiers and mono-block amplifier, master clocks, magnesium based loudspeakers (1 page)

Summary of Contents for Esoteric G-0s

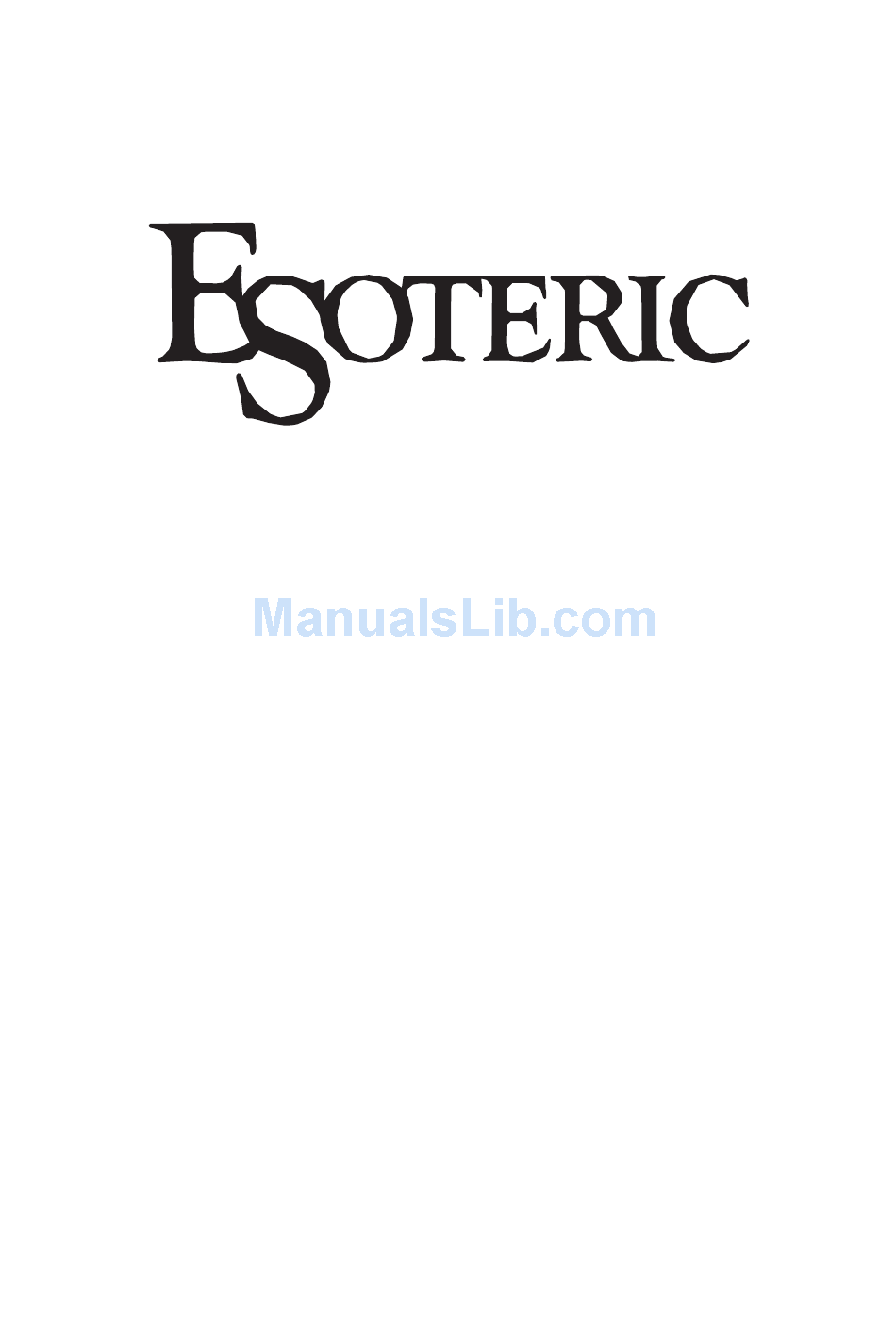

  • Page 1 G - 0s Master Clock Generator Owner’s Manual...

  • Page 2: Important Safety Instructions

    CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER- SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...

  • Page 3: Table Of Contents

    Connections ........6 Set Up for Esoteric Units ......8 Set Up for DVD Player, Universal Player, etc.

  • Page 4: Features

    CD players to process both the video and audio signals at the same time. The G-0s comes with a 100 kHz clock output intended for universal players (in PAL FILM mode, the output is switched to 96 kHz). If your universal players are 100 kHz-capable, you can control them by this high-precision clock.

  • Page 5: Names Of Each Control

    UNIVERSAL CLOCK OUT button Use this to switch the Universal Clock output on or off. Universal Clock is the TEAC-ESOTERIC original clock for universal players. When the FREQUENCY MODE is set to 44.1kHz or 48kHz, the frequency of the universal clock is set to 100kHz. When the FREQUENCY MODE is set to PAL FILM, the frequency of the universal clock is set to 96kHz.
  • Page 7 < Each of the A, B, and C channels is switch-selectable between 1xFs, 2xFs, and 4xFs. So you can, for example, connect an 88.2 kHz and a 176.4 kHz machine to the single G-0s and synchronize them. Three buttons (A, B, and C) are provided on the front panel for each channel.

  • Page 8: Set Up For Esoteric Units

    Press the MASTER button to select which oscillator you will use for the reference frequency. < “Rb” is recommended. Set Up for Esoteric Units Select 44.1kHz using the FREQUENCY MODE button. Select the frequency of the word clock for each line by pressing the A, B or C button.

  • Page 9: Set Up For Dvd Player, Universal Player, Etc

    Set Up for DVD Players, Universal Players, etc. This is the recommended set up for synchronizing DVD players, D/A converters and other similar digital devices. Connect WORD CLOCK OUT terminals to word synchronization input terminals of your units, using commercially available BNC coaxial cables. If your unit can be synchronized with the universal clock signal (ex.

  • Page 10: Dimmer

    Dimmer The front display can be dimmed to suit your preferred environment. There are two levels and an “off” setting. Press the A button for more than 2 seconds to switch the dimmer mode. LEd OFF 1: All the illuminations are turned off except the MASTER button indicator (Xtal, Rb, Ext).

  • Page 11: Specifications

    ........10 minutes If the G-0s is in standby mode and the Rubidium oscillator is stabilized.
  • Page 12 TEAC CORPORATION 3-7-3, Nakacho, Musashino-shi, Tokyo 180-8550, Japan Phone: (0422) 52-5081 TEAC AMERICA, INC. 7733 Telegraph Road, Montebello, California 90640 Phone: (323) 726-0303 TEAC CANADA LTD. 5939 Wallace Street, Mississauga, Ontario L4Z 1Z8, Canada Phone: (905) 890-8008 TEAC MEXICO, S.A. De C.V Campesinos N°184, Colonia Granjas Esmeralda, Delegacion Iztapalapa, CP 09810, México DF Phone: (525) 581-5500 TEAC UK LIMITED 5 Marlin House, Croxley Business Park, Watford, Hertfordshire, WD18 8TE, U.K.
