Digital Camera User Manual

CD310T1GF-PMS4-1

Please read this manual carefully

Before using your Digital Camera

Table of Contents

Need help?

Do you have a question about the CD310T1GF-PMS4-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Advanced Plus CD310T1GF-PMS4-1

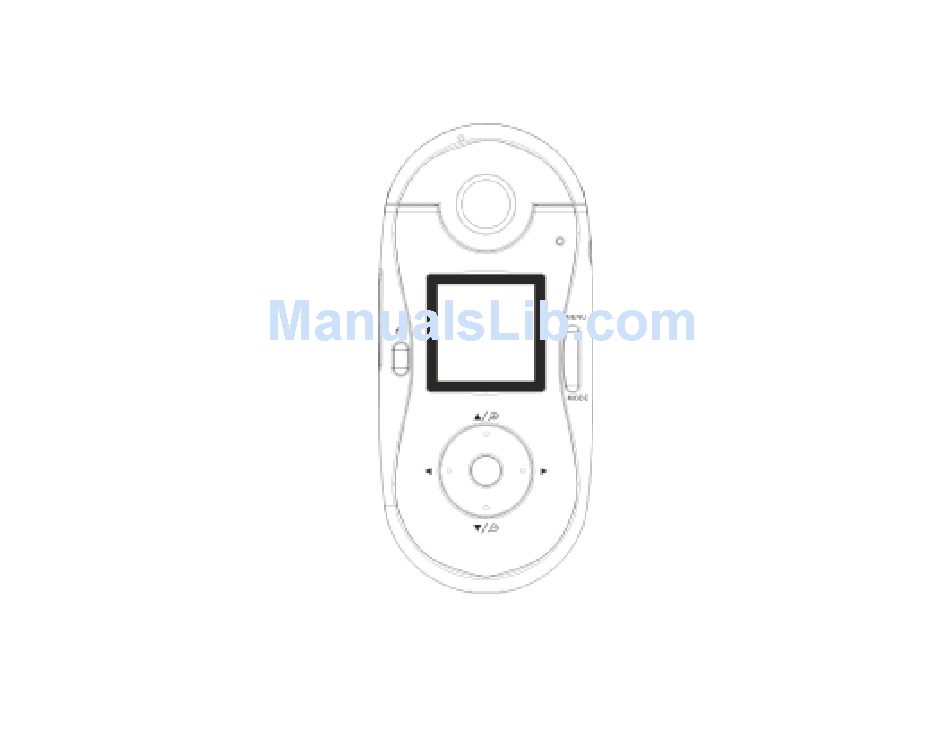

Page 1 Digital Camera User Manual CD310T1GF-PMS4-1 Please read this manual carefully Before using your Digital Camera...
Page 2: Table Of Contents
Introduction................................2 Key Features ................................. 2 What your camera includes ..........................2 Computer System Requirements for Windows 2000/XP................. 3 Computer System Requirements for Windows Vista ..................3 Computer System Requirements for Macintosh ....................3 A Quick Look at Your Camera..........................4 Preparing Your Camera for Use..........................
Page 3: Introduction
Introduction Thank you for purchasing this 5.1 Mega pixel Digital Camera, your camera not only can take digital photos, but also can be shoots quality video clips, an SD compatible memory card of up to 8 GB needs to be inserted for normal use and to expand the memory of your camera.
Page 4: Computer System Requirements For Windows 2000/Xp
Computer System Requirements for Windows 2000/XP To be able to download photos to your PC, you will need the following minimum configuration: Ÿ Pentium process or above with windows 2000, XP Ÿ 64 MB RAM, more than 250MB free disk space Ÿ...
Page 5: A Quick Look At Your Camera
A Quick Look at Your Camera...
Page 6: Preparing Your Camera For Use
Preparing Your Camera for Use Battery Installation Your camera requires 4 AAA alkaline batteries (included). It is recommended to use alkaline batteries. Please refer to the following diagram for installation: Slide and open the battery compartment and Insert batteries according to the correct polarity as shown in the battery compartment.
Page 7: Installing Sd Memory Card
2. Please don’t remove the battery away or power off your camera at will, otherwise the test photo in your Digital Camera will be lost if without SD memory card, so please download your test photo to PC as soon as possible.
Page 8: Starting Your Camera
Push the card in until you feel it “click” into position. The top of the card should be flushed with the surface of the camera. An icon will appear on the LCD screen after you turn on your camera. Once an external memory card is inserted in the camera all the images taken will be stored on the external memory card.
Page 9 How to rotate the lens correctly Please refer to the following method for correctly lens rotate:...
Page 10: Camera Mode
Press and hold the Power button to turn on your camera, the LCD screen will be light up, This will confirm that your camera is on and ready for use. Press and hold the Power button about 3 seconds to power off your camera. Camera Mode Taking photos Power on your camera, the default mode is camera mode.
Page 11 Press the Shutter/OK button again to confirm your selection. Press the MENU button to exit. Quality The quality of your photos also affects the number of shots you can take. A HIGH setting means you can take fewer photos, but they will be of better quality. The default value is STANDARD. Press the Menu button .
Page 12 Press the Shutter/OK button to save your choice. Press the MENU button and exit to the camera standby mode. The LCD screen will be adjusted as per the White Balance option you selected. Exposure This setting allows you to control the brightness of your images. 1.
Page 13 Press the Up/Down button to select the“Self timer”option. Press the Shutter/Right button. The Self -Timer menu appears in the center of the LCD. Press the Up/Down button to select one of the self timer options, 10S or 2S. Press the Shutter/OK button to confirm, save your choice Press the MENU button and to exit the camera standby mode.
Page 14 photos. To set as below: Press the Menu button. Press Up/Down button to select Anti-shake. Press the Shutter/Right button. Use Right/Left button to select: “On” - to activate and turn the anti-shake on. Icon will show on the screen. “Off” - to exit or turn the anti-shake off. Icon will appear on the screen.
Page 15 Press the Shutter/OK button to confirm your choice. Press the MENU button to exit the camera standby mode. Power Save Press the MENU button. Press the Left/Right button to enter Setup menu. Press the Up/Down button to select” Power Save” option. Press the Shutter/Right button.
Page 16 6. Press the Left/Right button to select next. 7. Press the Shutter/OK button to confirm your setting. 8. Press the MENU button to exit. Format This function will format the memory card and will erase all files in memory including files that have been protected.
Page 17: Video Mode
Press the MENU button. Press the Left/Right button to enter Setup menu. Press the Up/Down button to select Default in the menu. Press the Shutter/Right button. Press the Up/Down button to select Yes or NO. Press the Shutter/OK button to confirm. Video mode Note: You need to press and hold the Mode button few seconds to enter Video mode when your device is...
Page 18: Playback Mode
Note: Please insert an SD memory card to take photo/videos for normal using. Please do not rotate the lens when video recording that will cause the recording failed. “Memory Full!” will appear on the LCD if you attempt to press the shooting video button when the SD memory card is full.
Page 19 Play Video file in your camera Use the left or right button to select the video (AVI file). The icon will appear on the bottom left corner of the LCD screen. Press the Shutter/OK button to play back the video. Press the Shutter/OK button again to stop playing the video or wait for it to automatically stop when playing is over.
Page 20 Color This feature will allow you to set the photographs color 1. Set the Camera to playback mode by Pressing MODE button. 2. Press the Menu button. 3. Press the Up/Down button to select Color option from menu. 4. Press the Shutter/Right button. 5.
Page 21 Press the Menu button. Press the Up/Down button to select Slide Show option. Press the Shutter/Right button. Press the Up/Down button to select “Start”, “Interval” or “repeat”. 1 .If you select “Start”, press the Shutter/OK button to start play. 2. If you select “Interval”, you can set the interval time by pressing the Left/Right button. 3.
Page 22: Installing Photags Express Software
Press the Shutter/OK button Press the MENU button to exit. Print with Pictbridge You can print the photos directly from the camera with a Pictbridge compatible printer. Select the photo you wish to print. Press the Shutter/OK button. Press the Up/Downt button to select the Pictbridge option. Press the Shutter/OK button twice to enter the Pictbridge mode A message will appear on the LCD to “Wait for printer”.
Page 23 Install PhoTags Express Click on the “Install AP” to start installing process. The language window will be shown on the screen and you can choose the language you want to use Choose your language And then the installer window will be shown as below.
Page 24 Click to start installing After you click “Install PhoTags Express” button, there will be showing some windows that help you to finish the installing. You are only required to follow the description and click the buttons that it’s defaulted by the software.
Page 25: Everything You Need To Get The Most From Your Photos
2. Browse CD Click “Browse CD” on the main window, you can see what is included in the CD. Everything you need to get the most from your photos Select photos Select the photos that you download from your camera. And edit it in the software.
Page 26: Transferring Photos To Your Pc
Workshop Create “Calendars”, two sides “Greeting cards” and “Postcards” on standard photo paper. You can purchase “Album” and “Video CD”. Two additional workshop project online at any time and create Photo Album and slide shows on CD that can be viewed on your PC and VCD for viewing on your TV using your DVD player.
Page 27 NOTE: Now you can download the photos to your computer with two methods as below: 1. Download photos directly from windows Choose “copy pictures to a folder on my computer” on the Removable Disk (H:) window. After you click “OK”, there will be shown some windows on the screen step by step, you are only required to follow the description and click the buttons that are defaulted by the system to finish transferring.
Page 28 “custom copy” to download photos with your individuation. Or you can select “Express” option to download all photos to the computer without the option of selecting photos. In this mode you will not see a preview of the photos transferred. Custom copy This mode is used to manually select the photos you wish to copy to your computer.
Page 29 Add active captions to the picture. With this feature you can add a date, keywords and categories. Click “Next” to continue. Choose a position where you want to place the photos. Click “Finish” to copy the photos to the location you selected.
Page 30: Photags Express Software Owner Manual
PhoTags Express software owner manual You can edit, printing, sharing photos with PhoTags Express. You can operate it as following step to know how to use PhoTags Express: Launch the PhoTags Express. Click “tour” button on the main window to view how to use the PhoTags Express in detail. Click here Attention：...
Page 31: Maintenance Of Your Digital Camera
Maintenance of Your Digital Camera The digital camera is a delicate device. Please handle your camera with care to avoid damaging it. Appendix A: Specifications Sensor CMOS sensor (5M) 2592x1944 pixels, (3M) 2048x1536 pixels Image resolution (2M) 1600x1200 pixels, (VGA) 640x480 pixels Digital Video resolution (VGA) 640x480 pixels QVGA 320x240 pixels Lens...
Page 32: Appendix B: Troubleshooting
Appendix B: Troubleshooting Q: I have taken photos but my computer says, “No photos in camera.” What do I do? A: First ensure that you have in fact taken photos. Press the Shutter/OK button a few times to take some sample photos and then try downloading them again.
Page 33 Once your computer is back up, plug the camera into your computer’s USB port. Right-click on the “My Computer” icon. Select properties. If you are running Windows 2000 or XP: click on hardware and then Device Manager. If the camera is installed correctly, there will be a category listed for “Imaging Devices” and clicking on the “+” next to it should reveal your camera.
