Definitive Technology Mythos Six Owner's Manual

Definitive Technology Mythos Six Owner's Manual

On-wall and on-shelf audiomdeo magnetically shielded loudspeakers
Hide thumbs Also See for Mythos Six:

Advertisement

Quick Links

Download this manual See also: Reference, User Manual

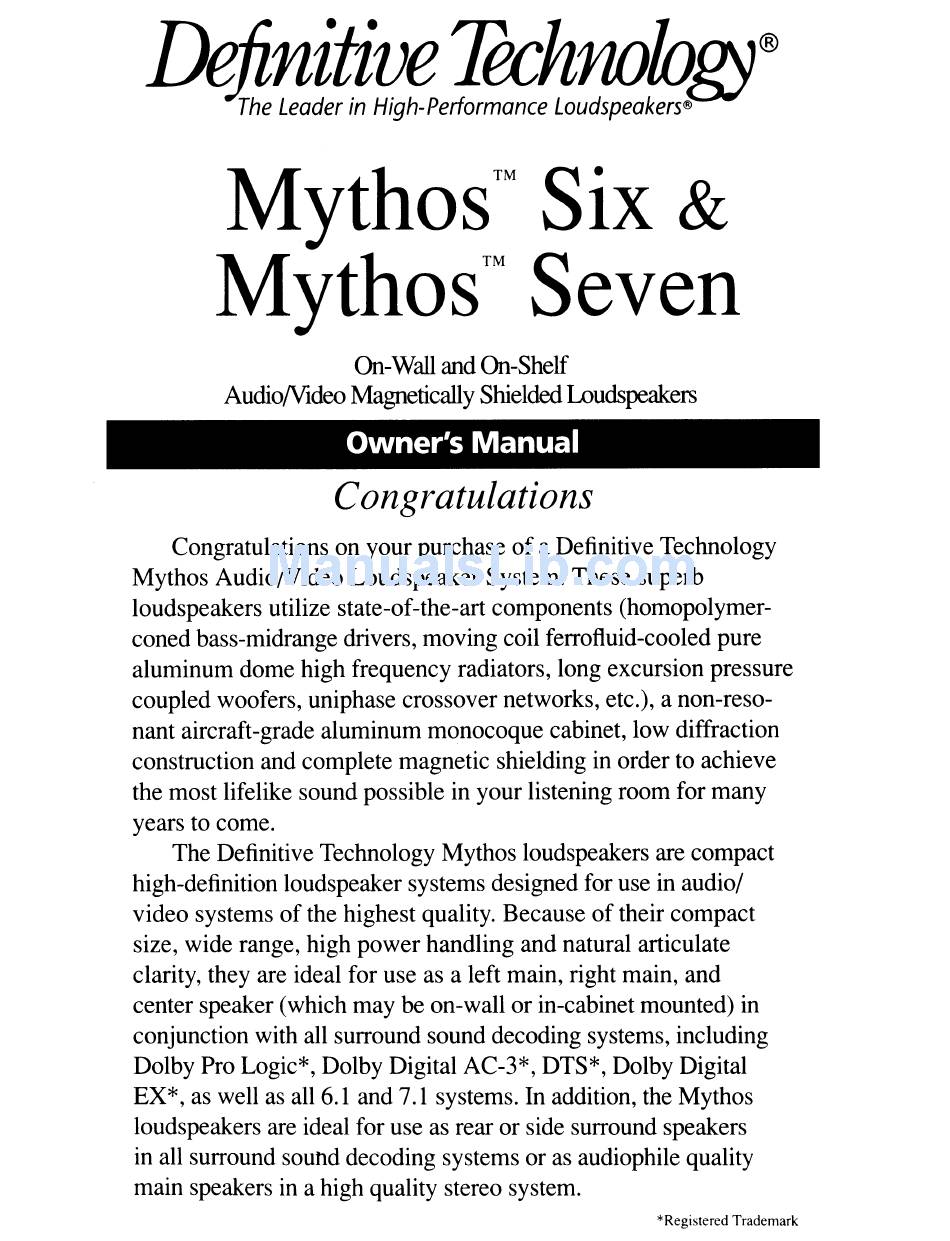

Mythos™ Six
&
Mythos™ Seven
On-Wall and On-Shelf
AudioMdeo Magnetically Shielded Loudspeakers
Owner's Manual
Congratulations
Congratulations on your purchase of a Definitive Technology
Mythos AudioNideo Loudspeaker System. These superb
loudspeakers utilize state-of-the-art components (homopolymer-
coned bass-midrange drivers, moving coil ferroftuid-cooled pure
aluminum dome high frequency radiators, long excursion pressure
coupled woofers, uniphase crossover networks, etc.), a non-reso-
nant aircraft-grade aluminum monocoque cabinet, low diffraction
construction and complete magnetic shielding in order to achieve
the most lifelike sound possible in your listening room for many
years to come.
The Definitive Technology Mythos loudspeakers are compact
high-definition loudspeaker systems designed for use in audio/
video systems of the highest quality. Because of their compact
size, wide range, high power handling and natural articulate
clarity, they are ideal for use as a left main, right main, and
center speaker (which may be on-wall or in-cabinet mounted) in
conjunction with all surround sound decoding systems, including
Dolby Pro Logic*, Dolby Digital AC-3*, DTS*, Dolby Digital
EX*, as well as all 6.1 and 7.1 systems. In addition, the Mythos
loudspeakers are ideal for use as rear or side surround speakers
in all surround sound decoding systems or as audiophile quality
main speakers in a high quality stereo system.
*Registered Trademark

Advertisement

loading
Need help?

Need help?

Do you have a question about the Mythos Six and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Definitive Technology Mythos Six

Summary of Contents for Definitive Technology Mythos Six

  • Page 1 On-Wall and On-Shelf AudioMdeo Magnetically Shielded Loudspeakers Owner's Manual Congratulations Congratulations on your purchase of a Definitive Technology Mythos AudioNideo Loudspeaker System. These superb loudspeakers utilize state-of-the-art components (homopolymer- coned bass-midrange drivers, moving coil ferroftuid-cooled pure aluminum dome high frequency radiators, long excursion pressure coupled woofers, uniphase crossover networks, etc.), a non-reso-...
  • Page 3 Positioning Mythos Six as Left/Right Main Speakers Because of its vertical orientation, the Mythos Six will nonnally be used as a right or left main front speaker or as a rear or side surround speaker.
  • Page 4 Positioning Mythos Six as Rear/Side Surrounds When used as rear or side surround speakers, Mythos Six may be located on the side or behind the listeners. When used on the sides, take care never to locate the speakers forward of the listeners. The speakers may be placed at or above ear level.
  • Page 5 Connecting Your Mythos Loudspeakers Hooking Up Your Mythos Loudspeakers Your Mythos loudspeakers each have one pair of gold 5-way binding posts. Normally, you will hook up the left main/front channel red( terminal of your receiver or amplifier to the red( terminal of your left Mythos loudspeaker and the left main/front channel black(-) terminal of your receiver or amplifier to the black(-) terminal of your...
  • Page 6 To determine the bracket's position on the wall, the following measure- ments will be helpful. When the Mythos Six is installed on the bracket, the top edge of the speaker is 1...
  • Page 7 (82 mm) below the bottom edge of the bracket. To install the Mythos Six on its bracket, securely fasten the two mount- ing screws supplied into the two threaded holes on the rear of the speaker, screwing them in as far as they will go. The speaker will then hang in the two "keyholes"...
  • Page 8 (or any other solid object), please allow an extra 1 inch (35mm) for the speaker to slide onto its bracket. If your speaker wires are to be hidden inside the wall, be sure to conform to your local building codes. When installed on the bracket, the Mythos Seven speaker terminals will be even with the right edge of the bracket.
  • Page 9 In this case, also start with the subwoofer low-pass crossover at about 80 Hz and experiment. Use of Mythos Six as Rear or Side Surround Speakers Mythos loudspeakers make excellent rear or side surround speakers. In order to use the Mythos speakers as rear or side surround speakers,...

  • Page 10: Technical Assistance

    Technical Assistance It is our pleasure to offer assistan.ce if you have any questions regarding your Mythos loudspeakers or their set-up. Please contact your nearest Definitive Technology dealer or contact us directly at 410-363-7148 or www.definitivetech.com. Service Service and warranty work on your Definitive loudspeakers will normally be performed by the Definitive Technology dealer from whom you have purchased your loudspeakers.
  • Page 11 "Lari:e" left and right main speakers, "Lari:e" center, "Large" surrounds, and "No" subwoofer. (Also, do not be afraid to experiment.) Remember, whatever sounds best to you is correct. Mythos Loudspeakers Specifications Mythos Six Dimensions 4.07" W 4" D 19.57"...
  • Page 12 If, upon examination at the Factory or a Definitive Technology Franchised Dealer, it is determined that the unit was defective in materials or workmanship at any time during this Warranty period, Definitive Technology or the Definitive Technology Franchised Dealer will, at its option, repair or replace this Product at no additional charge, except as set forth below.
  • Page 13 i i i i i i ALLOW MINIMUM CLEARANCE OF 1 1/2" ABOVE TOP OF SPEAKER Definitive Techno1fJgy® ' - - PILOT HOLE PILOTHQLE WALL BRACKET TEMPLATE FOR MYTHOS'" SEVEN PILOT HOLE PILOTHQLE PART NUMBER: 2732A 101 DRILL PILOT HOLES TO APPROPRIATE SIZE FOR FASTENER 199/16"...
  • Page 14 No Internet access? Call Definitive Technology Customer Service M-F 9:30 AM - 6:30 PM US Eastern Standard Time at (410) 363-7148, and we'll help you with the simple registration process. Or you can send us a letter to Definitive Warranty Registration at the address below with your name, address, phone number, serial number(s) of the product(s) and...

This manual is also suitable for:

Mythos seven
