1
Introduction and Package Contents
Introduction
Congratulations on your purchase. You can expect only the
sharpest and most brilliant color images from this monitor.
Featuring easy to use OSD controls and built in speakers, you will
find this monitor both easy to use and a pleasure to look at.
Please unpack the monitor with care, and verify that all the parts
listed below are included. If any parts are missing, please
contact with your local distributor.
Please save the packing box for possible future return for service.
Package Contents
One LED Monitor
12V DC Adapter/Power cord
D-Sub 15-pin VGA connector Cable
User's Guide
Remote controller

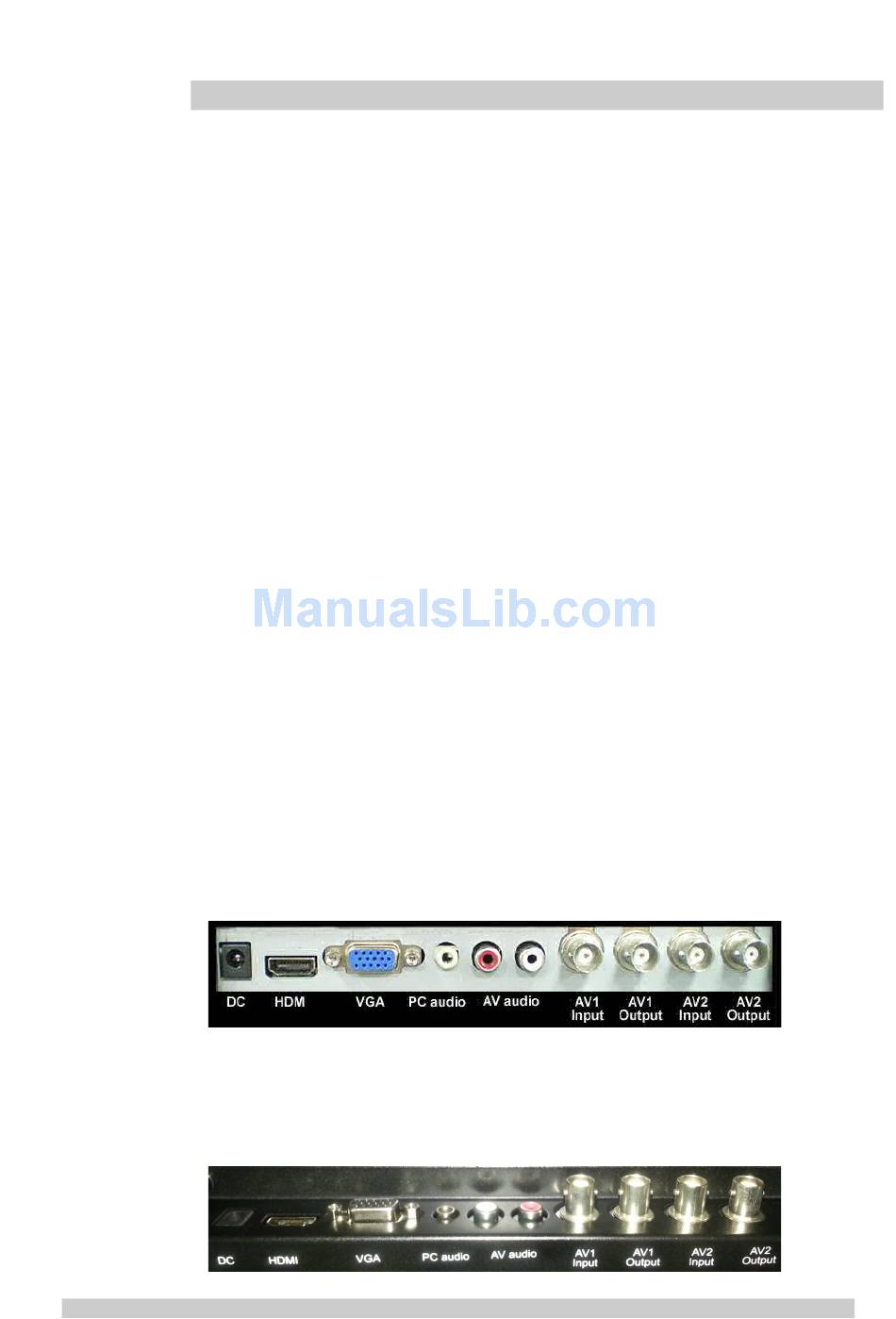

Hardware Installation
The following sections in this guide give clear, step-by-step
descriptions of the installation process and explain how to use
the monitor for optimum results.
Please pay attention to the Regulations and Warnings Section of
this user's manual before setting up the display monitor. Failure
to do so may inadvertently result in personal injuries or machine
damage.
19"
23.6"
1
1DUSCL1B-A.0
Advertisement
Table of Contents
Related Manuals for Syscom Video EPMON19LED
Summary of Contents for Syscom Video EPMON19LED
- Page 1 Introduction and Package Contents Introduction Congratulations on your purchase. You can expect only the sharpest and most brilliant color images from this monitor. Featuring easy to use OSD controls and built in speakers, you will find this monitor both easy to use and a pleasure to look at. Please unpack the monitor with care, and verify that all the parts listed below are included.
- Page 2 32” Specifications for 19 “ Size EPMON19LED Composite Output (BNC) x 2 Composite Input (BNC) x 2 Single Connector (VGA) x 1, (RCA) x 2 (PC Audio) x 1, (HDMI) x 1 Speaker 1.5W x 2 Display Mode Video 1/ Video 2/ PC/ HDMI...
- Page 3 Specifications for 23.6 Model EPMON23LED Composite Output (BNC) x 2 Composite Input (BNC) x 2 Single Connector (VGA) x 1, (RCA) x 2 (PC Audio) x 1, (HDMI) x 1 Speaker 1.5W x 2 Display Mode Video 1/ Video 2/ PC/ HDMI AC power AC 100~240V 50/60Hz Temperature...
- Page 4 Specifications for 32 Model EPMON32LED Diagonal size 32" Panel type TFT LCD Aspect ratio 16:9 Number of pixels 1920 x 1080 Pixel pitch (H x V) 0.12125 x 0.36375 mm Color depth 16.7 Million Colors Backlight Brightness 400 cd/m2 Contrast ratio 5000:1 Response time ( Tr + Tf) 8.5 ms...
- Page 5 Accessories Monitor, Power cord, VGA cable, User Manual, Remote controller VGA Timing Item Resolution H Freq.(kHz) V Freq.(Hz) 640x400@70 31.460 70.080 640x480@60 31.469 59.940 640x480@72 37.861 72.809 640x480@75 37.500 75.000 720x400@70 31.460 70.080 800x600@56 35.156 56.250 800x600@60 37.879 60.317 800x600@72 48.077 72.188 800x600@75...
-
Page 6: Monitor And Osd Control
Features – AC 100-240V Power Supply – NTSC/PAL Auto Detect – High Resolution Display 1280 x 1024 – VGA Input – Composite Video Input – HDMI Input On-screen Display (OSD) with Multiple Languages – – PIP / POP Function Quick Installation 1. - Page 7 The LED color monitor has a simple control layout for controlling the monitor and OSD (On Screen Display) functions. The table below summarizes the control keys and their related functions. 5-Key Feature Keys Function Description Toggle the display between standby mode and on. (Press Power “Power”...
- Page 8 Illustration of the remote controller (For 21.5” ) POWER SWITCH MENU VOLUME – / Switch setting item VOLUME + / Switch setting item VIDEO – Switch to AV1/AV2/ HDMI/VGA MODE – Source menu / switch setting item Remote Controller (Only for 32” LED Monitor) 1DUSCL1B-A.0...
- Page 9 Source Select Select Press the button to bring up source selection Use the keys to advance to the proper selection (－)OR (＋) S / Select and press button to confirm the setting. Note: The message will be displayed on the screen if there’s no VGA signal detected in VGA mode, and the power will be off automatically after 10 seconds.
-
Page 10: Osd Control Function List
Note: The LED will also be red if AV1 or AV2 is selected and there is no video signal detected. OSD Control Function List OSD Menu Picture Mode 1. Picture Mode Press (－)OR (＋) to select the picture mode “User, Standard, Movie, Vivid ” 2. -
Page 11: Setting Mode
1. Volume Press (－)OR (＋) to adjust volume level. 2. Mute Press (－)OR (＋) to select sound “ Off, On ”. Setting Mode AV/HDMI Mode VGA Mode 1. Language Press (－)OR (＋) to select language. 2. H. Position Move the display picture left or right. Press (－)OR (＋) to adjust the parameter. - Page 12 Press (－)OR (＋) to adjust “ Full, 16:9 ”. 9. Reset Recall Default value. Note: “ Clock” and “Phase ” setting only in VGA Mode PIP/POP Setup Mode 1. Multi Window Press (－)OR (＋) to select “PIP, POP, Off ” mode. 2.
- Page 13 Mounting VESA Bracket Lay the LED display face down on a towel or blanket. Note the 4 screws that secure the hinge on the lower part of the back casing. These may be removed to release the desk mount bracket if required. Attach a VESA compatible mounting bracket VESA 75mm x 75mm (for 17”...
- Page 14 Caring for Your LED Monitor Caring for your LED Monitor The LED color monitor is a sensitive piece of electronic equipment. Proper care can prevent accidentally damaging the LED panel or the monitor itself. By following these guidelines you can ensure many years of trouble free use. 1.
-
Page 15: Frequently Asked Questions
WARNING: Any unauthorized modification to this equipment could result in the revocation of the authorization to operate the equipment and void the product warranty. Frequently Asked Questions Power button does not respond Check the power cord to ensure that it is securely plugged into the monitor base and also into the electrical outlet. -
Page 16: Regulations And Maintenance
Inspect the audio cable for any apparent damage. Double check by switching to another audio cable to see if the audio works. Regulations and Maintenance FCC compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause... - Page 17 Product ＊ Do not cover or block the vent holes in the case. Do not insert sharp objects or spill liquid into the LED monitor through cabinet slots. They may cause accident fire, electric shock or failure. Disconnect the power plug from the AC outlet if you will not use it for an indefinite period of time.
- Page 18 Power and extension cords ＊ Do not allow anything to rest on the power cord. Do not locate this product where persons will walk on her cord. Use the proper power cord with correct attachment plug type. If the power source is 120 V AC, use a power cord that has UL and C-UL approvals.
