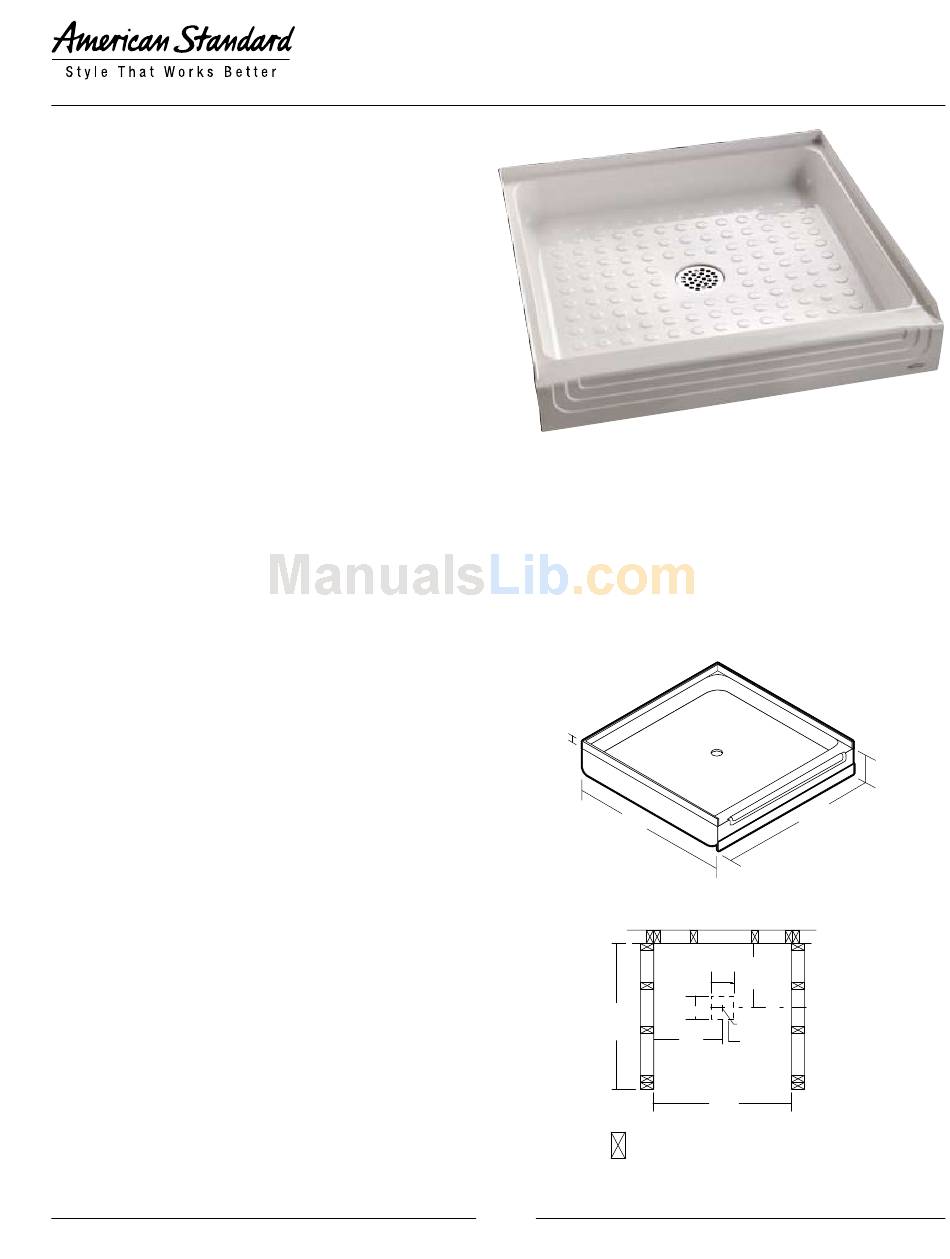

ACRYLUX 36" x 36" SHOWER BASE
❑ 3636Y1.ST SHOWER BASE

Product Features:

• High-gloss acrylic-capped ABS with
fiberglass reinforcement
• Single threshold
• Integral three-sided, tiling/water retention flange
• Textured bottom

Nominal Dimensions:

35-7/8" x 35-7/8" x 5-1/8"
(911 x 911 x 130mm)

For use with:

• 3636Y1.SW Shower Wall Set
• Base can also be installed without Acrylux
wall set

Compliance Certifications -

Meets or Exceeds the Following Specifications:
• ANSI Z124.2 for Plastic Showers
• ASTM E162 for Flammability
• NFPA 258 for Smoke Density
© 2008 AS America Inc.
1"
(25mm)
35-7/8"
(9-11mm)

STUD LAYOUT

37-1/2"
(152mm)
(952mm)
(457mm)
6" x 6" (154 x 154mm)
= Stud Location
H167
ACRYLUX 36" x 36"
™
SHOWER BASE
HIGH GLOSS
35-7/8"
(9-11mm)
6"
(152mm)
6"
Drain C L
16-1/2"
18"
(419mm)
Floor Cut Out
36"
(914mm)
5-1/8"
(130mm)
Revised 5/08
