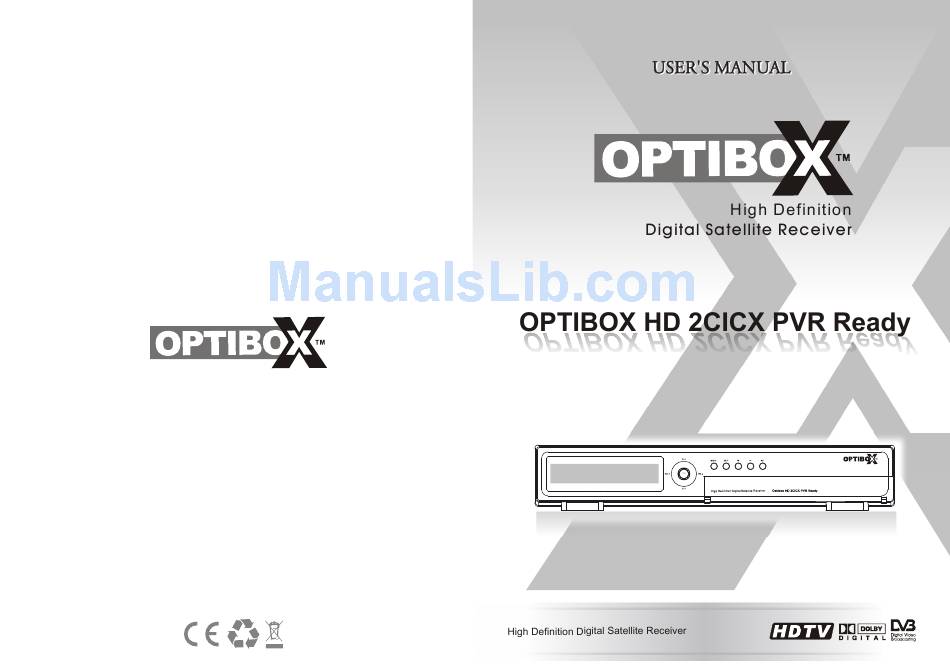

Optibox 2CICX User Manual

Pvr ready high definition digital satellite receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Optibox 2CICX

Summary of Contents for Optibox 2CICX

  • Page 2: Table Of Contents

    1. Features A. Specifications………………………………………………………………………………...………….5 B. What's inside the package……………………………………………………………………………..6 2. Hardware Controls A. Front/Rear panel …………………………………………………………………………………….…..7 B. Remote controller…………………………………………………………………………………….….8 3. Connections A. Connecting TV & Receiver…………………………………………………………………….………..9 B. Connecting to Dish …………………………………………………………………….………………12 C. Connecting to CI Module (CI Model Only) …………………………………………………………...14 D.

  • Page 3: Safety Instructions

    Safety Instructions 1. Be sure to read this User's Manual before starting the operation of the receiver. 2. Never open the cover. It is dangerous to touch the inside of the receiver due to possible electric hazard. 3. Remove the plug from wall outlet when you don't use this receiver for a long time. 4.

  • Page 4: Features

    1. Features A. Specifications Common Parts Easy Graphic MENU Interface RS232C Port for Updating Control Software and Additional Service Supports DiSEqC1.0/1.2, 13/18V, 22Khz Tone 2-SCART Connectors & Composite video & Audio L/R output 1-Component video output (YCbCr output) HDMI (High Definition Multimedia Interface) supported Multi-language Function (Menu, Audio) Last Channel Memory OSD : Transparency &...

  • Page 5: What's Inside The Package

    B. What's inside the package Satellite Receiver User's Manual, Remote Controller, 2 of AAA Batteries...

  • Page 6: Hardware Controls

    2. Hardware Control A. Front / Rear panel Watching TV status (Live mode) OSD operating status (OSD mode) 1. VFD Display Shows information of selected channel, local time, system status, etc. 2. Channel +/- Change current channel. Move cursor up/down. 3.

  • Page 7: Remote Controller

    B. Remote controller Watching TV status OSD operating status Buttons (Live mode) (OSD mode) POWER Turns the receiver on/off. Control numeric, alphabetic Access specific channel directly. operations. MUTE Mutes audio output. Shows TV channel. RADIO Shows Radio channel. MENU Shows system setup software. Quits system setup software.

  • Page 8: Connections

    3. Connections A. Connecting TV & Receiver Connect between Satellite receiver & TV Connect coaxial cable from LNB OUT (Satellite) to LNB IN (Receiver). Connect HDMI cable from HDMI OUT (Receiver) to HDMI IN (TV). Digital You can enjoy best video qualitiy with this connection. Connect Component cable(3wires) from Component OUT (Receiver) to Component IN (TV).
  • Page 9 Connection between Receiver & Audio amplipier Connect SPDIF Cable from SPDIF OUT (Receiver) to SPDIF IN (Audio Amplifier) Digital You can enjoy best audio qualitiy with this connection. Connect RCA cable (2wires) from Audio Out (Receiver) to Audio IN (TV) Select one audeo connection type between A2, A3 Connection between Receiver &...
  • Page 10 3. Connections Complexed connection between Receiver & TV & Audio amp & VCR Connect Scart cable from VCR Scart (Receiver) to Scart IN (VCR) Connect Coaxial cable from Antenna OUT (VCR) to Antenna IN (TV)

  • Page 11: Connecting To Dish

    B. Connecting to Dish Fixed Single Satellite Connection 1. Aim your dish towards preferred satellite. 2. Connect coax cable from LNB/F to LNB IN of the receiver. Fixed Multiple Satellites Connection 1. Aim your dishes towards preferred satellites. 2. Connect LNB/Fs to the inputs of Switch (DiSEqC) 3.
  • Page 12 3. Connections DiSEqC Positioner Connection 1. Aiming to TRUE SOUTH : Attach the antenna to the DiSEqC mount. Make sure it's at the center of the mounting tube. Rotate the mount together with the antenna toward TRUE SOUTH. (Use a compass to find TRUE SOUTH and calculate the magnetic offset) 2.

  • Page 13: Connecting To Ci Module (Ci Model Only)

    C. Connecting to CI Module (CI Model Only) Insert CI module into CI slot for watching TV program from Service Provider. This CI can be use only SAT program. D. Connecting to CA Module(CA Model only) Insert Smart Card into Smart Card slot for watching TV programmes from Service Provider. This CA can be use both of Terrestrial and SAT program.

  • Page 14: Quick Startl

    4. Quick Start Easy Install & Easy Config shows most necessary processes to see TV quickly and easily. At the first time you power on (or after Factory Reset), these features will be displayed. A. Easy Install Press Red button to enter EZ Install menu and is started. Ez Install has three steps below. 1.
  • Page 15 3-a. Scanning channels in satellite you selected. 3-b. Press Yes button if correct channel list appears. Before Settings Make sure you connected lines between Satellite and Receiver and TV correctly. Turn on your TV and receiver. Press menu button on Remote Controller to display main menu. You can navigate menus using Tab buttons on the front panel.

  • Page 16: Easy Config

    4. Quick Start B. Easy Config Press blue button to enter EASY Config Menu. 1. Setup main menu. Menu Language : Select the language for software menus. 1st Audio : Select the language for audio in broadcast. Subtitle Language : Select the language for subtitle. HD Mode : Select HD Mode between 576p, 720p, 1080i.

  • Page 17: Software Operations

    5. Software Operations OSD software consists of main-menu and sub-menu, as you see in the screen above. Main-menu has 5 items. Each main-menu item has its sub-menu items. Our software has 3 blocks. Leftside block is top level menus. (INSTALL, SYSTEM, PREFERENCE, CA, CHANNEL), Rightside block display sub-menus which is included main icons of each top window.
  • Page 18 5. Software Operations Elements for antenna setup menu HOTBIRD Satellite list ASTRA 19E Move the cursor to a satellite and press OK to select the satellite or press INTEL701/C EXIT on the remote controller to go back. … Sub Menu Parameters Function / Tips Select Transponder which you want to test...
  • Page 19 Sat Scan In this menu you can search for specific TPs. If you have already set the Antenna set up, you can scan the satellite. In this menu, there are Scan Mode, Network search and Radio. If you press OK in Sat Scan button, the <Satellite Scan> will appears.
  • Page 20 5. Software Operations Transponder Scan 1. If you press OK in TP Scan button, the <Transponder Scan> will appear. 2. Use the Up/Down button to select the item, and set up the parameter with the Left/Right button. 3. If you have completed setting, use Yellow(Scan) button to scan current transponder channel, Red(Add) button to add TP, Blue(Del) button to delete TP, Green(Edit) button to edit TP information.

  • Page 21: System Setup

    B. System setup TV Setup Set the TV output according to selected channel source. Sub Menu Parameters Function / Tips You can select OSD & video display mode to one of Multi, PAL, NTSC. When PAL mode is selected, for example All HD Mode 720p / 576p / 1080i screen is displayed as the PAL mode in spite of the current...
  • Page 22 5. Software Operations Timer You can set the time to make the receiver perform the designated actions including timer based and turn on/off the set-top-box with Wake Up/Sleep function. Sub Menu Parameters Function / Tips Index Timer 1~8 You can select up to 8 timers. Off, One time, You can set the cycle of the action designated in the timer Cycle...

  • Page 23: System Preferences

    C. System preferences Language setup You can select OSD menu language, Audio language and subtitle language. Use the Right or OK button to view language list. Sub Menu Parameters Function / Tips Menu Languages available. Set language which indicates Ul and messages. Set language which you want to displayed first in the Audio 1st Audio Languages available.
  • Page 24 5. Software Operations Prental Lock Changes the Personal Identification Number(PIN) which is used to control the access to the receiver and individual channel. Sub Menu Parameters Function / Tips Lock Level No, Install, Menu No : Do not use Parental Lock. Install : Lock to enter Install menu.

  • Page 25: Channel Setup

    E. Channel setup Channel Edit You can set channel as your favor. Buttons Function / Tips Skip Skip this channel when scrolling with channel +- buttons. Lock Lock this channel for a password. Remove this channel from list. Move Move up, down in channel list. Favorite Channel Edit You can select 8 channels to set as Favorate channel.

  • Page 26: Usb Functions

    5. Software Operations F.USB FUNCTIONS USB Device Connection Connect to USB Device( USB HDD, USB Memory ) You can see the Message "USB initial.. Please wait!" If the file system was FAT, you can see the message "USB detect OK!" If the file system was NTFS, USB Device will not be connected.
  • Page 27 You can check the file list in USB Device. · RED button is used to change drive. · Green button is used to Change the file name · Yellow button is used to delete the file. USB MENU - Data Transfer Transfer with STB to USB Device( Application / XKey / Channel / All Data ) You can see the “*.tbn”...
  • Page 28 5. Software Operations · to *.TBN download, press yellow button, then you can see "Do you want to Download?" window. If you select the OK, STB will start to download from USB to set top box. USB MENU – Management USB Device Management Disk Information / Format / Default Recording Driver Disk Information( Menu or Red button )·...
  • Page 29 USB MENU – PVR Play the file in USB Device Recording USB Device file list Normal Recording This function is used for recording a program while watching it by applying the following steps : 1. Press the record button on your remote control for recording. You can see the “Do you want to record?”window on the screen.
  • Page 30 5. Software Operations Now STB is Recording the current program. To stop recording . You must press the stop button of remocon, then you can see “ Do you want to stop recording ?”. to select YES , press the stop button again . to select NO , press the record button.

  • Page 31: Playing Tv (Or Radio)

    G. Playing TV (or Radio) In live mode, various menus are displayed on the screen with remote controller action. You can change the current status and mode with various buttons including the Up/Down, SAT, INFO and EPG. You can see the banner contains channel information when you press the INFO button. TV/Radio List in Live Mode If you press OK on remote controller at Live mode, the screen will display as follows.
  • Page 32 5. Software Operations Information Press the INFO button once to display short and extended information. If you press the button again before the banner disappears, a new banner will be displayed showing the details of the current channel. EPG shows the event information on the current TP channel by time Zone.
  • Page 33 PAUSE Pause the video/audio output of receiver, To clear pause press PAUSE button again. A/V Mode Sets the current channel audio to stereo, left-mono, right-mono. Audio : Set up Audio Output. Screen Mode : Set up Screen Mode. Apply Teletext Shows the list of subtitle languages the current channel supports.

  • Page 34: Appendix A. Trouble Shooting

    Appendix A. Trouble Shooting There may be various reasons for the abnormal operation of the receiver. Check the receiver according to the procedures shown below. If the receiver does not work properly after checking it, please contact the dealer. Don't open the receiver cover. It may cause a dangerous situation. Symptom Cause Remedy...
  • Page 35 3. Tuner & Demodulation Transmission Standard DVB-S, DVB-S2 Network LG TDQR-C003F Interface - ZIP PLL IC : Conexant CX24118A Module - Demodulation IC (8PSK, QPSK) : Conexant CX24116 RF-in Connector Type IEC 60169-24, Female, 75 nominal Loop Through Output IEC 60169-24, Female,75 nominal Input Frequency Range 950MHz to 2150MHz Input Signal Level...
  • Page 36 Appendix 5. A/V In/Out & Connectivity HDMI Output: Digital Video & Audio TV SCART Output: CVBS, Audio L/R with Volume control Output: CVBS, Audio L/R VCR SCART Input: RGB, CVBS, Audio L/R Output: CVBS, Audio L/R with Volume Control Component video (Y, Pb, Pr) SPDIF Output : Digital Audio (Optical) Smart card...

  • Page 37: Glossary Of Terms

    C. Glossary of Terms C band 3.7 ~ 4.2 GHz Frequency. Ku band 11 ~ 18GHz Frequency. DiSEqC Digital Satellite Equipment Control. LNB (Low-Noise Block converter) The LNB is an electronic unit mounted on the satellite dish. It receives the signals reflected by the dish and converts them to signals that can be used by Satellite receiver.
