  • Page 1 BrickHouse Keychain Spy Camera User’s Guide Page 1 BrickHouse Security User’s Guide...

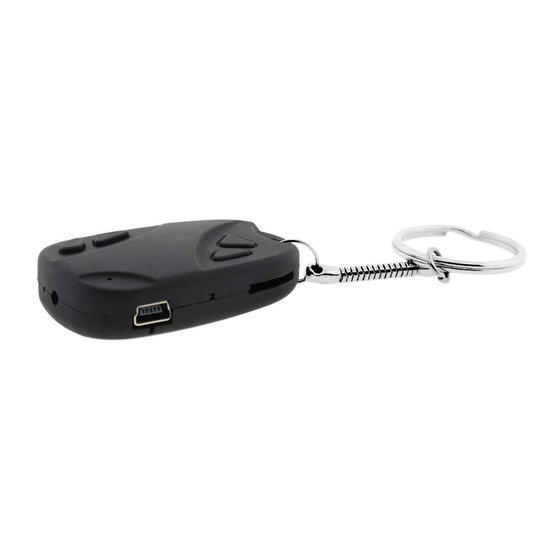

  • Page 2 The BrickHouse Keychain Spy Camera is a covert recording device with an internal DVR. Photos and videos are stored to a micro SD card for easy retrieval and simple file transfer via USB.
  • Page 3 In the Box The box contains the BrickHouse Keychain Spy Cam, a USB cable, and this manual. Page 3 BrickHouse Security User’s Guide...
  • Page 4 BrickHouse Security User’s Guide Page 4...
  • Page 5 Page 5 BrickHouse Security User’s Guide...
  • Page 6: Getting Started

    AC outlet with the included adapter. While charging, the LED will glow yellow. Before first use, be sure to charge the device for at least 4 hours. BrickHouse Security User’s Guide Page 6...
  • Page 7 Keychain Spy Cam is compatible with micro SD cards up to 32GB capacity. If you plan on viewing your files on your computer, we sug- gest using VLC Player. The most recent version can be down- loaded at no cost from http://www.videolan.org. Page 7 BrickHouse Security User’s Guide...
  • Page 8 LED will flash. If the device is left in Standby mode for longer than a minute without being given any commands, it will power itself off. BrickHouse Security User’s Guide Page 8...
  • Page 9: Recording Video

    Record button again and the device will return to Standby mode. Taking Photos To take a photo, press the Record button. The LED will blink once to indicate that a photo has been stored. Page 9 BrickHouse Security User’s Guide...
  • Page 10 Off. It will connect as a removable drive, and depending on the settings on your PC, it may automatically notify you that new hardware has been detected. If so, select Open Folder to View Files. BrickHouse Security User’s Guide Page 10...
  • Page 11 Removable Disk under the Devices With Removable Storage section. Open that drive, which will contain a folder called DCIM. Within the DCIM folder will be another folder named 100MEDIA. This folder will contain all your recorded files. Page 11 BrickHouse Security User’s Guide...
  • Page 12 Setting the time and date stamp on your device is easy. Simply create a .txt file on your computer and name it “TAG”. In that file you will enter the date and time information in the following format: yyyy-mm-dd hh:mm:ss Example: 2012-01-31 09:34:12 BrickHouse Security User’s Guide Page 12...
  • Page 13 After you have loaded the file, safely disconnect the device from your computer, turn the device on and off, and the time and date you loaded should appear on any new photos and videos you record. Page 13 BrickHouse Security User’s Guide...
  • Page 14 Basic Specifications Format Resolution Battery Life Record Time Video 720x480 ~90 min. 30 min. per Photo 1280x960 ~90 min. 9000 per GB BrickHouse Security User’s Guide Page 14...
  • Page 15: Troubleshooting

    My video playback is “choppy” or “stuttering.” Solution: If this is occurring, try copying the video files to your PC. This hap- pens when the file is too large to be played back using your USB connection. Page 15 BrickHouse Security User’s Guide...
  • Page 16 Solution: This is caused by the device being unable to access its memory card. Make sure you have a micro SD card in the device and that it is properly formatted. BrickHouse Security User’s Guide Page 16...
  • Page 17 SD memory cards. As electronic devices are becoming smaller, Micro SD cards are becoming more and more common in the marketplace. Currently, the highest capacity of micro SD card is 32GB. Page 17 BrickHouse Security User’s Guide...
  • Page 18 USB can connect computer peripherals such as mice, keyboards, PDAs, gamepads and joysticks, scanners, digital cameras, printers, personal media players, flash drives, and external hard drives. BrickHouse Security User’s Guide Page 18...
  • Page 19 WWW.BRICKHOUSESECURITY.COM BrickHouse Security User’s Guide Page 19...
