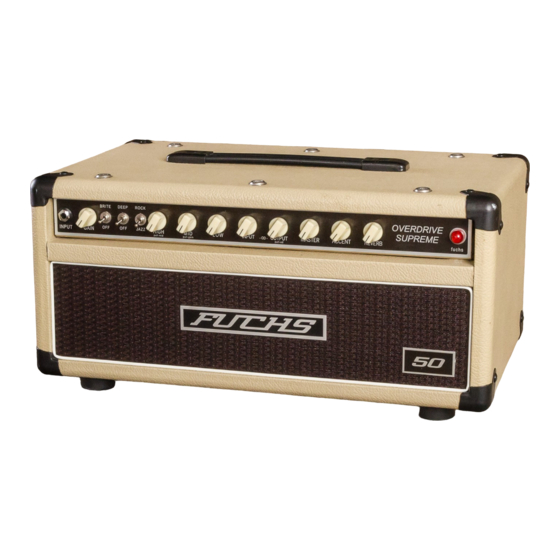

- Page 1 ® Overdrive Supreme (ODS) ® Instrument Amplifiers V 2.0 Operations Manual For ODS Models (head and combo) ODS-30 ODS-50 ODS-50/100 ODS-100 ODS-150 Fuchs Audio Technology 357 Broad St (REAR) Bloomfield, NJ 07003 (973) 680-1200 Website: www.fuchsaudiotechnology.com Email: info@fuchsaudiotechnology.com ODSm 3/2005...
- Page 2 Sincerely, Andy Andy Fuchs President Fuchs Audio Technology ® Fuchs Audio Technology® 357 Broad St, Bloomfield, NJ, 07003 (973)-680-1200 www.fuchsaudiotechnology.com info@fuchsaudiotechnology.com (“Fuchs Audio Technology” & “Overdrive Supreme” are registered trademarks of Fuchs Audio Technology) ODSm 3/2005...
- Page 3 (Please note: Many of our ODS amplifiers are custom-made, so not all features appear on all models. This operation manual will indicate features your particular ODS model may or may not have. (such as: 50/100 power switch, Artist footswitch or other options.) ®© 2000-2005 Fuchs Audio Technology. All rights reserved. ODSm 3/2005...
- Page 4 Introduction to Fuchs Audio Technology Amplifiers What makes our products unique? The recent proliferation of "Boutique” amplifiers, allow guitarists to recognized what audiophiles have known for years, properly designed tube circuits can offer the finest musicality, detail, and sensitivity to playing subtleties of any type amplifier.
- Page 5 All passive parts are carefully chosen for both reliability and sonic attributes. Each and every Fuchs amplifier undergoes 20-40 hours of “burn-in” before leaving our shop. This ensures every Fuchs amp is built for the long haul. ®© 2000-2005 Fuchs Audio Technology. All rights reserved. ODSm 3/2005...
- Page 6 Please read before powering up your ODS Please see Panel Diagrams in next section 3 for assistance. 1) Inspect to make sure power & pre-amp tubes are intact & snuggly seated in their sockets. 2) Make certain a speaker (load) is plugged into the correct speaker input jack on the back of the amplifier (4 or 8 ohm).
-
Page 7: Front Panel
Diagrams of FRONT & REAR Panels and FOOTSWITCHES Front Panel Rear Panel Effects Loop Standard Footswitch (2-way) Artist Footswitch (4-way) Artist Plus Footswitch (6-way) (Please note that external appearances of footswitches may vary depending on production date. All functions remain the same regardless) ODSm 3/2005... -
Page 8: Front Panel Controls And Their Functions
Front Panel Controls and Their Functions Input Jack(s): Input jack(s), are 1/4" phone plugs, designed for 1-Meg impedance, guitar-level signal. This input will readily accept pedals/effects without any loss in performance. The design of the ODS amplifier is quite flexible, so we first suggest exploring its performance without any effects or pedals initially. - Page 9 There are no “correct” Overdrive settings, finding the desired tone setting depends on the guitars/pickups used, as well as your own personal tastes. (Note: An internal trimmer pot, factory set at approx 1/3 rotation, sets the amount of signal fed from the clean channel into the overdrive stage's first tube.
- Page 10 (A)-REAR Panel Controls, inputs/outputs, (B)-Effects Loop (A)-REAR panel Controls/input/output jacks AC power cord input: Using the supplied 120vac power cord. Connect AC POWER IN on amplifier and to AC power source. AC power Fuse: This fuse protects the amplifier if any malfunction occurs. Use ONLY stock fuse rating as supplied by factory.
- Page 11 (B)-Effects Loop Using the Loop: When inserting a device like an equalizer, or perhaps a Sonic Maximizer (or similar processor), the loop should be set in series mode. The mix controls on the outboard device can be used to control all effects and the balance between clean and dirty effects.
- Page 12 Footswitches Your ODS will be provided with either: a 2 button standard, 4 button “Artist” , or 6 button “Artist Plus” footswitch depending on your purchase selection. Standard 2-Way footswitch: Connects via ¼” phone cable (supplied) to rear panel input. Left button controls Clean/Overdrive switching, Right button controls Reverb on/off.
-
Page 13: Hum Balance
Biasing ODS power tubes and other technical info Biasing and Internal Adjustments: Part of chassis and circuit board is shown below with the chassis sitting on its transformers, and front panel facing you. There are exposed high-voltages in this chassis, even with the amplifier shut-off! If you are not familiar with tube amplifiers and/or high voltages, do not attempt to remove the chassis from its cabinet or to attempt to service this amplifier. - Page 14 ODS Sample Setting diagrams & notes (make copies & use!) GAIN BRITE DEEP ROCK HIGH INPUT OUTPUT MASTER ACCENT REVERB OFF OFF JAZZ (IN) (OUT) (IN) (OUT) (IN) (OUT) 50-100 NOTES: ______________________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ GAIN BRITE DEEP ROCK HIGH INPUT OUTPUT...
-
Page 15: Warranty Information
Audio Technology® within 30 days of purchase, or your warranty will not be in effect. Fuchs Audio Technology® reserves the right to suspend or terminate the above warranty at our sole discretion, should damage from any of the above limitations and or exclusions be detected upon examination Keep the information on this page for your records. -
Page 16: Warranty Registration Form
® WARRANTY REGISTRATION FORM This completed form must be returned to Fuchs Audio Technology within 30 days of purchase along with a copy of your receipt from your authorized dealer. Please fill in all requested information on this form so we may register you for future warranty repairs or future upgrades, should they become available.
