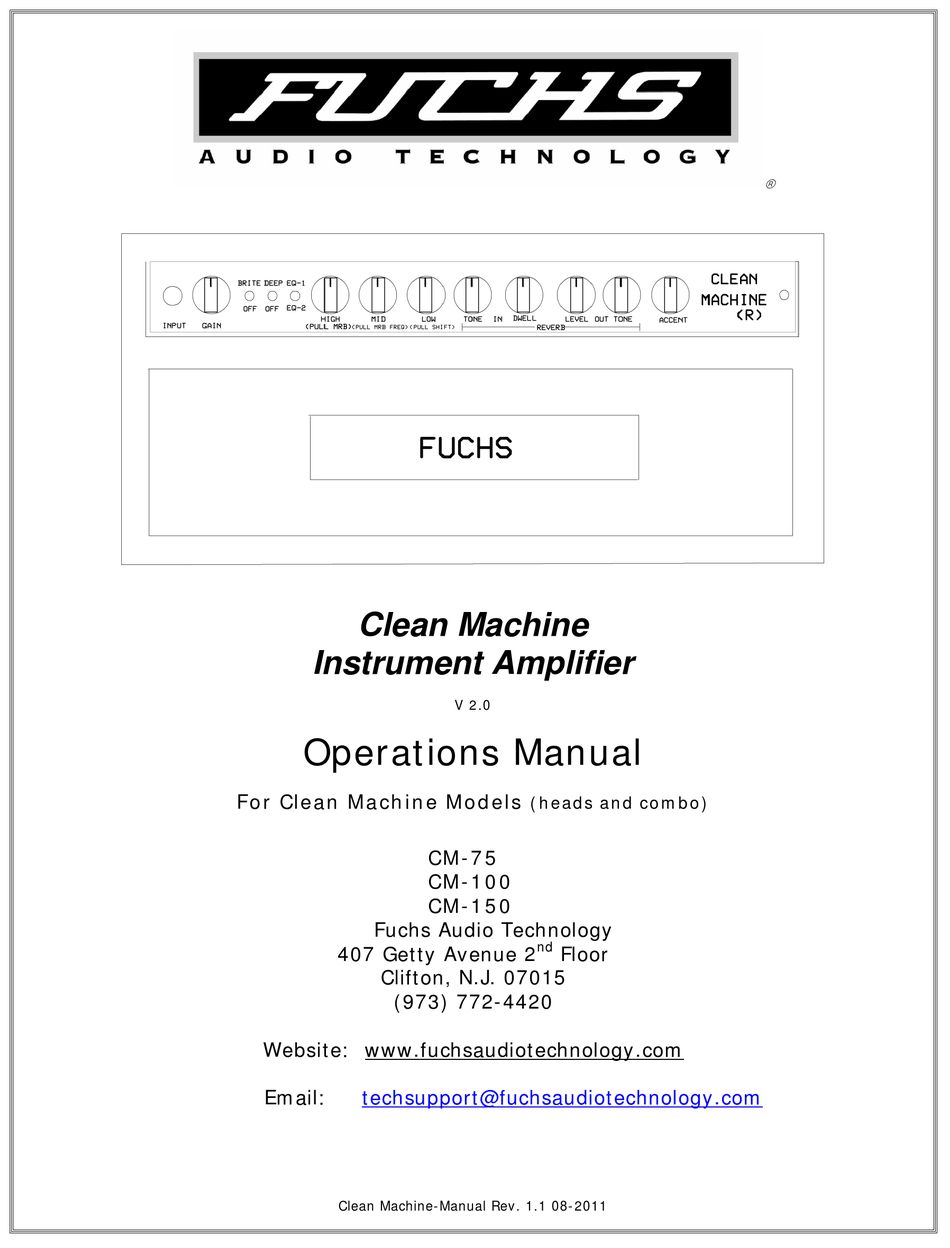

Clean Machine
Instrument Amplifier
V 2.0
Operations Manual
For Clean Machine Models
(heads and combo)
CM-75
CM-100
CM-150
Fuchs Audio Technology
nd
407 Getty Avenue 2
Floor
Clifton, N.J. 07015
(973) 772-4420
Website: www.fuchsaudiotechnology.com
Email:
techsupport@fuchsaudiotechnology.com
Clean Machine-Manual Rev. 1.1 08-2011
Advertisement
Table of Contents
Related Manuals for Fuchs Audio Technology Clean Machine CM-75
Summary of Contents for Fuchs Audio Technology Clean Machine CM-75
- Page 1 Clean Machine Instrument Amplifier V 2.0 Operations Manual For Clean Machine Models (heads and combo) CM-75 CM-100 CM-150 Fuchs Audio Technology 407 Getty Avenue 2 Floor Clifton, N.J. 07015 (973) 772-4420 Website: www.fuchsaudiotechnology.com Email: techsupport@fuchsaudiotechnology.com Clean Machine-Manual Rev. 1.1 08-2011...
- Page 2 Sincerely, Andy Andy Fuchs President Fuchs Audio Technology Fuchs Audio Technology 73 Collins Avenue, Bloomfield, NJ, 07003 (973)-893-0225 www.fuchsaudiotechnology.com info@fuchsaudiotechnology.com (“Fuchs Audio Technology” & “Clean Machine” are registered trademarks of Fuchs Audio Technology) Clean Machine-Manual Rev. 1.1 08-2011...
- Page 3 This operation manual will indicate features your particular model may or may not have. (Such as: 50/100 power switch, Artist footswitch or other options.) 2000-2008 Fuchs Audio Technology. All rights reserved. Clean Machine-Manual Rev. 1.1 08-2011...
- Page 4 Introduction to Fuchs Audio Technology Amplifiers What makes our products unique? The recent proliferation of "Boutique” amplifiers, allow guitarists to recognized what audiophiles have known for years, properly designed tube circuits can offer the finest musicality, detail, and sensitivity to playing subtleties of any type amplifier.
- Page 5 All passive parts are carefully chosen for both reliability and sonic attributes. Each and every Fuchs amplifier undergoes 20-40 hours of “burn-in” before leaving our shop. This ensures every Fuchs amp is built for the long haul. 2000-2008 Fuchs Audio Technology. All rights reserved. Clean Machine-Manual Rev. 1.1 08-2011...
- Page 6 Please read before powering up your Clean Machine Please see Panel Diagrams in next section 3 for assistance. 1) Inspect to make sure power & pre-amp tubes are intact & snuggly seated in their sockets. 2) Make certain a speaker (load) is plugged into the correct speaker input jack on the back of the amplifier (4 or 8 ohm).
-
Page 7: Front Panel
Diagrams of FRONT & REAR Panels and FOOTSWITCHES Front Panel Rear Panel Effects Loop Standard Footswitch (2-way) Artist Footswitch (4-way) (Please note that external appearances of footswitches may vary depending on production date. All functions remain the same regardless) Clean Machine-Manual Rev. 1.1 08-2011... -
Page 8: Front Panel Controls And Their Functions
Front Panel Controls and Their Functions Input Jack(s): Input jack(s), are 1/4" phone plugs, designed for 1-Meg impedance, guitar-level signal. This input will readily accept pedals/effects without any loss in performance. The design of the Clean Machine amplifier is quite flexible, so we first suggest exploring its performance without any effects or pedals initially. - Page 9 The Reverb Controls: (Input tone, Input Dwell, Output level, Output tone) The reverb controls allow the widest range of reverb adjustment on any amp or outboard reverb unit made today. These four controls will allow you to tailor both the input level and tone, and the output level and tone for reverb tones ranging from subtle and warm to a bright extreme surf style, and anything in between.
- Page 10 (A)-REAR Panel Controls, inputs/outputs, (B)-Effects Loop (A)-REAR panel Controls/input/output jacks AC power cord input: Using the supplied power cord. Connect AC POWER IN on amplifier and to AC power source. Please confirm your line voltage matches that of the amplifier!!! AC power Fuse: This fuse protects the amplifier if any malfunction occurs.
- Page 11 (B)-Effects Loop Using the Loop: When inserting a device like an equalizer, or perhaps a Sonic Maximizer (or similar processor), the loop should be set in series mode. The mix controls on the outboard device can be used to control all effects and the balance between clean and dirty effects.
- Page 12 FOOTSWITCHES: Your Clean Machine is provided with either: a 1- button standard, 2-Button enhanced, or a 4 button “Artist” footswitch depending on your purchase selection. Standard 1 or 2-Way footswitch: Connects via ¼” phone cable (supplied) to rear panel input. Single button controls reverb.
- Page 13 Biasing power tubes and other technical info Biasing and Internal Adjustments: Part of chassis and circuit board is shown below with the chassis sitting on its transformers, and front panel facing you. There are exposed high-voltages in this chassis, even with the amplifier shut-off! If you are not familiar with tube amplifiers and/or high voltages, do not attempt to remove the chassis from its cabinet or to attempt to service this amplifier.
-
Page 14: Warranty Information
Audio Technology within 30 days of purchase, or your warranty will not be in effect. Fuchs Audio Technology reserves the right to suspend or terminate the above warranty at our sole discretion, should damage from any of the above limitations and or exclusions be detected upon examination Keep the information on this page for your records. -
Page 15: Warranty Registration Form
WARRANTY REGISTRATION FORM This completed form must be returned to Fuchs Audio Technology within 30 days of purchase along with a copy of your receipt from your authorized dealer. Please fill in all requested information on this form so we may register you for future warranty repairs or future upgrades, should they become available.
