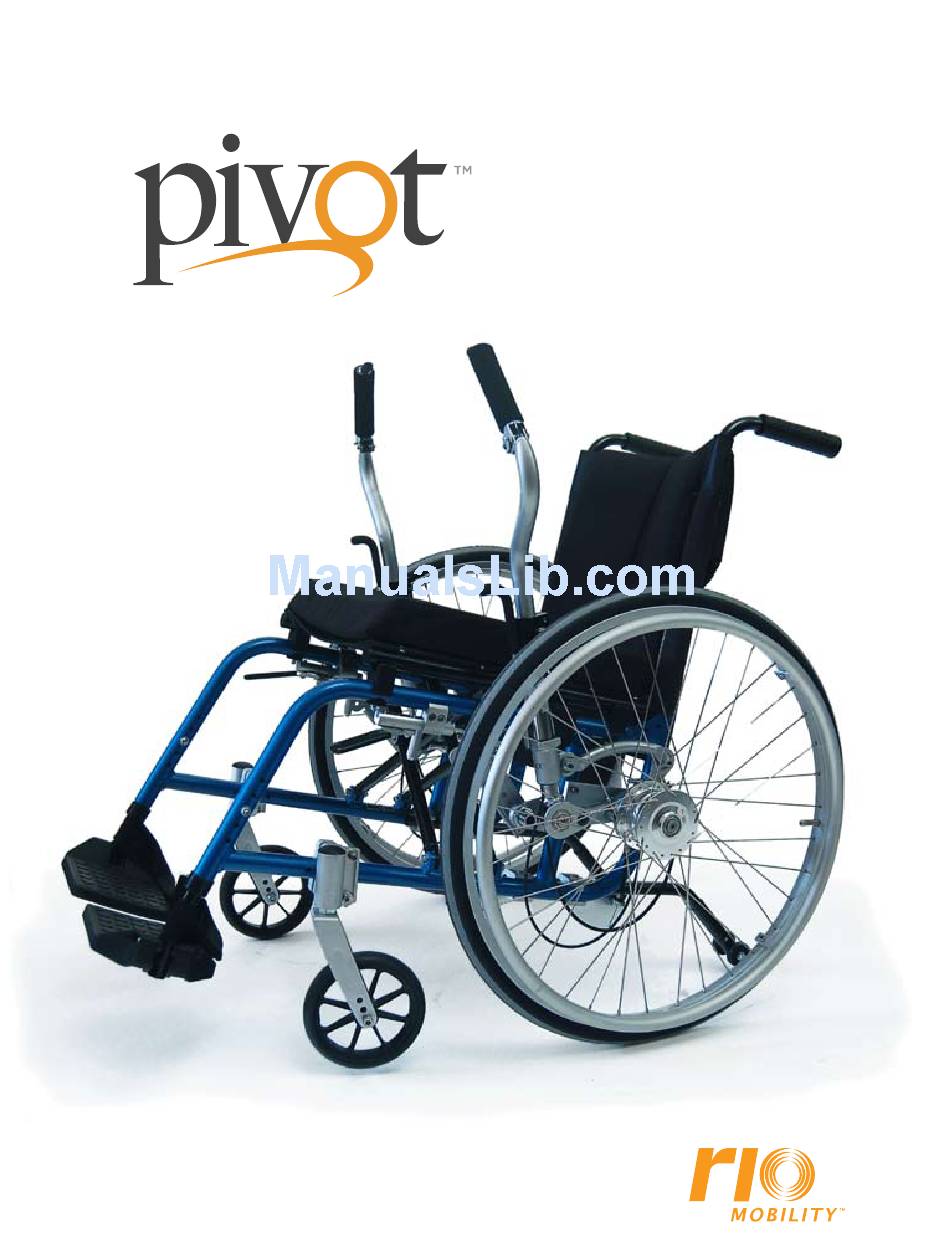

  • Page 1 Lever Drive User Manual...
  • Page 2 56 Tehama Street San Francisco, CA 94105 Rio Mobility, a Daedalus Wings, Inc. company, is a designer and retailer of innovative products that maximize options and increase mobility for wheelchair users. We would like to acknowledge the National Institutes of Health for their support of the development of the Pivot lever drive.

  • Page 3: Table Of Contents

    Table of Contents 1. Safety Warnings 2. Wheelchair Requirements 3. The Pivot Components 4. Pivot Specifications 5. Installing Your Pivot 6. The Pivot Controls 7. Driving the Pivot 8. The Pivot Out in the World 9. Special Adaptations 10. Safety and Maintenance Instructions 11.

  • Page 4: Safety Warnings

    Whether you are a new wheelchair user or have years of experience, you MUST take the time to learn and practice on the Pivot before you begin regular riding.

  • Page 5: Wheelchair Requirements

    Pivot User Manual 2. Wheelchair Requirements The Pivot is compatible with all known commercially-available wheelchairs without the need for any special adapters or kits. The frame tube diameter must be either: inch (22mm) 1 inch (25.4mm) (28.5mm) inch Wheelchair 1.2 inch (30.5mm)

  • Page 6: The Pivot

    Pivot User Manual 3. The Pivot Components Required tools: Adjustable Wrench Pliers Torque Wrench Tire Pressure Gauge Bicycle Pump Remove the lever drive parts from the box and unpack the components. The contents include: Lever Drive Assembly (left and right sides)
  • Page 7 Pivot User Manual Forward / Neutral / Reverse Toggle Brake Lock Brake Handle Button Upper Lever Tube Gear Shift Lever Lever Length Adjustment Clamp Lower Lever Tube www.riomobility.com...
  • Page 8 Pivot User Manual www.riomobility.com...

  • Page 9: Pivot

    ▫ Customizing the Fit Familiarize yourself with the component names in the previous section. During the installation you will need to locate and/or identify these components. Contact customer service at sales@riomobility.com if you have any difficult installing your Pivot www.riomobility.com...
  • Page 10 Pivot User Manual Installing the Clamps Remove your quick release wheels Locate the horizontal frame tube under the right and left edges of the wheelchair seat Suggested Clamp Place the right clamp (the latch facing forward) near the Position shown below. If there is interference at this position, move the Clamp towards the front of your chair, but not more than 3 inches (75 mm).
  • Page 11 Pivot User Manual Mounting The Pivot Lockdown Nut Loosen the and slide the right lever assembly as far as possible into the axle sleeve just as you would with your original quick-release wheels. Rotate the lever assembly through the normal operating range to determine if it interferes with any part of the wheelchair (i.e., clothes guard, armrest).
  • Page 12 Pivot User Manual Adjusting The Fit Check the tire pressure and inflate as necessary to within the range specified on the side of the tire Engage the Parking Brakes (see p. 15) Transfer to your chair (see p. 17) Neutral...
  • Page 13 When the desired position is determined, tighten the screws and nuts. Make sure there is at least one empty position between the two screws Check all the nuts and screws and make sure they have been tightened properly Your Pivot is ready to drive! www.riomobility.com...

  • Page 14: The Pivot

    Controls Check that all components are properly installed and tightened. It is recommended for your first few sessions with the Pivot to be in an open space with ample turning room and no obstructions. The use of a safety belt is recommended and you must have your anti-tips installed.
  • Page 15 Pivot User Manual Brake Lock, firmly apply the brake and push the Brake Lock Pin To engage the toward your body. If you are on an uphill slope or flat ground, also switch into Forward drive. If you are on a downhill slope, also switch into Reverse.

  • Page 16: Driving The Pivot

    After becoming familiar with the control switches and gear shifter you are ready to begin the process of becoming proficient with the Pivot . It will take some practice before the Pivot becomes intui- tive. Following are some recommended exercises.
  • Page 17 Light pressure on the left brake will make your right wheel lead the turn. Practice going around the box in reverse. REMEMBER: At any time, you can switch to using your push rims simply by placing the toggles in neutral. This disengages the Pivot and allows the rims to move by hand. www.riomobility.com...

  • Page 18: The Pivot

    Use your wheelchair as described in your wheelchair manual and use the Pivot in the same safe manner that you would your wheelchair with pushrims. Follow all additional warnings and instruc- tions for the Pivot in this manual.
  • Page 19 Do not put weight on the levers – this includes weight due to objects and people. This lever drive is meant for everyday use and is not intended for use in competition. Rio Mobility is not responsible for any damage or injury due to misuse of your lever drive. www.riomobility.com...

  • Page 20: Special Adaptations

    Pivot User Manual 9. Special Adaptations Rio Mobility can offer special adaptations tailored to your needs. Some are described below. If you have additional requests, please discuss with your heath care professional and contact customer service at sales@riomobility.com. Lever Lever Length Adjustment Clamp...

  • Page 21: Safety And Maintenance Instructions

     Brake Pad Wear  Basic Maintenance Guidelines Your Pivot was designed to require minimal maintenance. The gear hub is sealed for mtenance- free operation. Inspect your lever drive frequently. Failure to inspect your lever drive and make necessary repairs or adjustments can result in injury to you or to others.
  • Page 22 User Manual Brakes & Brake Lock Adjustments It is common for your brakes to need adjustment, especially when your Pivot is new and the cables are first being used. Adjustment will be needed less often after the initial break in period.

  • Page 23: Replacement Parts

    Brake Lever Put one drop of oil on the pivot point of the brake lever Brake & Shift Put four drops of oil onto both ends of each cable. Allow oil to soak...

  • Page 24: Troubleshooting Guide

    Pivot User Manual 11. Troubleshooting Guide The wheels do not spin freely, or your wheelchair tends to turn while coasting on flat ground. Band Brakes may need to be adjusted (see p. 22). If this does not correct the problem, please contact customer service and sales@riomobility.com.

  • Page 25: Limited Warranty

    This warranty is only available for the original owner or purchaser and is non-transferable. Rio Mobility is to perform all warranty work if deemed necessary. Shipping costs to Rio Mobility are the sole responsibility of the buyer. Return shipping costs to the customer will be the responsibility of Rio Mobility.

  • Page 27: Product Registration / Warranty Form

    Address : City : State / Province : Zip / Postal Code : Email : Phone Number : Rio Mobility Model # : Serial #, Right Side : Serial #, Left Side : Purchased From : Date of Purchase : sales@riomobility.com...
