INSTALLATION MANUAL AND USERS GUIDE

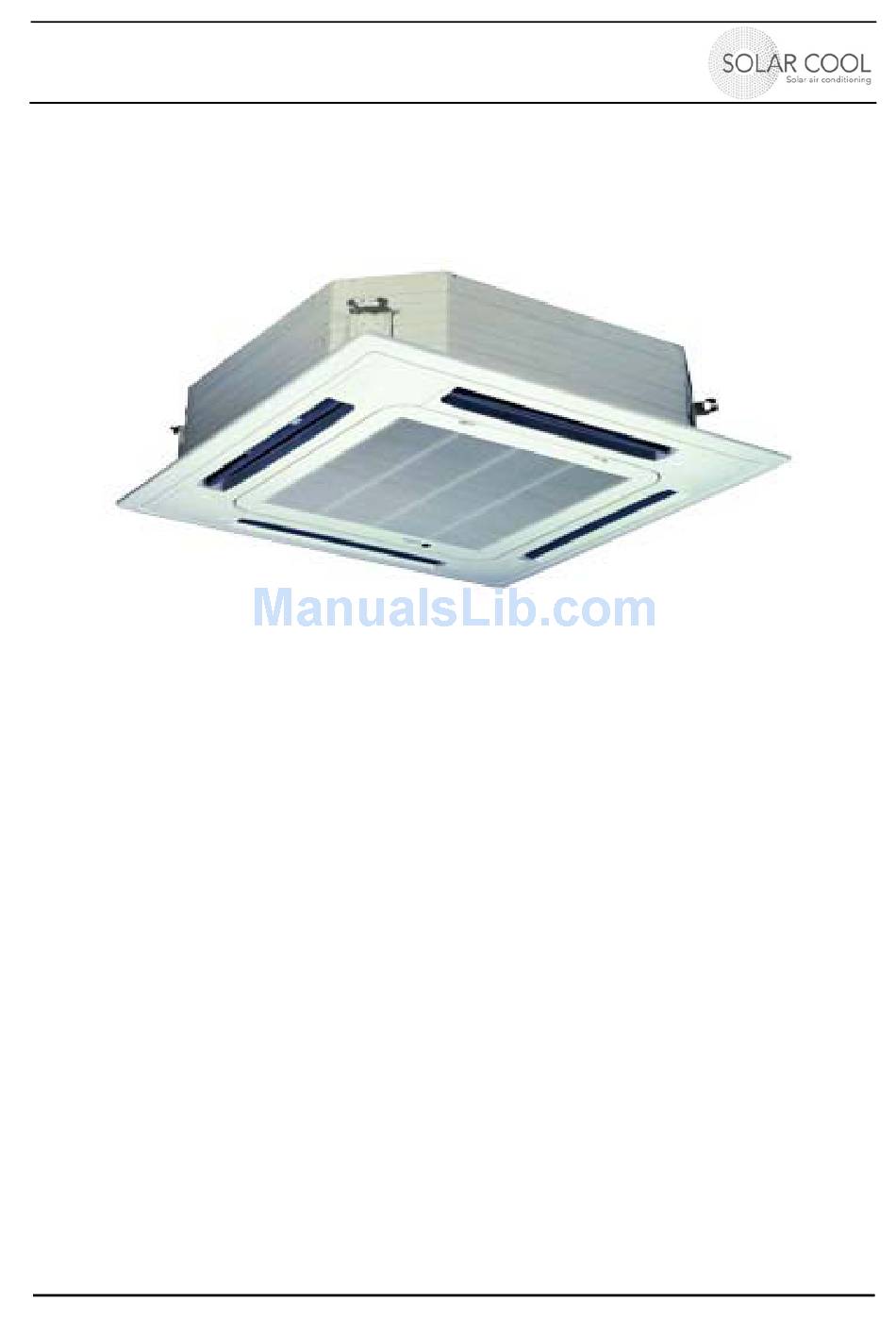

Multi Split Series – Ductless Split – Cassette Indoor unit
CM - Multi Split Series
R-410A Ultra High Efficiency Cassette Indoor unit
Cassette: 2,5 – 5 kw Capacity
Sedna Aire now offers ductless Multi split heat pumps that use the more efficient and
environmentally friendly refrigerant (R-410A). The ductless system allows very easy
integration into existing surroundings without major investment in ducts or radiators. It
contains one outdoor and up to five indoor unit Wall mounted and/or Cassettes) and is
especially dedicated to straight forward applications where more than one indoor unit are
needed.
The new CM Series of Sedna Aire heat pumps offers outstanding performance as well as
environmental protection. These models with their high efficient compressors in DC-Inverter
technology offer when matched with our SolarcoolTM panel efficiency rates 2-3 times better
than
current
comparables
best-in
class
systems:
EER:
8
for
Cooling
and
COP: 8 for Heating.
Cassettes are available for assembly in ceilings allowing luxury design and air distribution in
all 4 directions. They are available in Euro-Grid (CMC-12/18) and non-Euro-Grid (CMC24).
The manual explains the use and installation of the indoor cassettes only. The use and
installation of the outdoor systems is described in other manuals
TM
SolarCool
... The Hotter it Gets, The Better It Works!
04006020101
© Sedna Aire Europe GmbH
1
10/2012
Advertisement
Table of Contents
Related Manuals for Sedna Aire CM Series
Summary of Contents for Sedna Aire CM Series
- Page 1 The new CM Series of Sedna Aire heat pumps offers outstanding performance as well as environmental protection. These models with their high efficient compressors in DC-Inverter...
-
Page 2: Table Of Contents
The installation and especially the connection between the outdoor unit and the Solarpanel shall be only performed by trained and skilled service personnel having the appropriate instruments. Sedna Aire does not take over any responsibility for direct and indirect damages causing from installation by unskilled and/or untrained persons. -
Page 3: Name And Descriptions Of The Parts
Drainage equipment for discharging condensate water from indoor unit when cooling Drainage hose Guide louver (placed in air outlet vent) Air outlet vent Connecting pipe Air filter, purifier ( in air inlet grille) Air inlet grille 04006020101 © Sedna Aire Europe GmbH 10/2012... -
Page 4: Instructions Before Installation And Use
1 m away from the It can decrease the air on it. Falling off the outdoor units. conditioning capacity or a unit may cause damage to It may cause fire or malfunction you and somebody else explosion 04006020101 © Sedna Aire Europe GmbH 10/2012... - Page 5 It destroy the air guidance like, drying clothes, food, and unit. etc. It may overheat and the unit may be damaged. 04006020101 © Sedna Aire Europe GmbH 10/2012...
-
Page 6: Remote Control Description And Manual
If locked, is displayed. When you press Air Function: any button, blinks 3 times Press to turn on or off °F ↔ °C: Switch unit off and press simultaneously MODE and “-“ 04006020101 © Sedna Aire Europe GmbH 10/2012... -
Page 7: Battery Change
Temperature will be set at 20°C When unit runs in COOL Mode: press AUTO When unit runs in HEAT Mode: press TEST 04006020101 © Sedna Aire Europe GmbH 10/2012... -
Page 8: How To Operate The Unit
80% (door and windows are open), dew might drop out near the air outlet. 04006020101 © Sedna Aire Europe GmbH 10/2012... -
Page 9: Care And Maintenance
Disassemble the air filter Disassemble grille Use As shown right, pull the handle at the rear side of the grille, raise it and disassemble Purifier 04006020101 © Sedna Aire Europe GmbH 10/2012... - Page 10 Check if air filter is clean and installed well Cut off main power supply of air conditioner Check whether the batteries in your remote control or still operational Turn on main power 2 hours before use 04006020101 © Sedna Aire Europe GmbH 10/2012...
-
Page 11: Trouble Shooting
(close/open). Air conditioner may give out sounds under defrost or when it is stopped. This is caused due to inverse flow of refrigerant in the unit. H1: Defrosting Is normal 04006020101 © Sedna Aire Europe GmbH 10/2012... - Page 12 Air break switch or leakage protection switch trips STOP THE AIR CONDITIONER AND frequently. PULL OUT THE POWER PLUG Liquids or water are poured into the machine or remote controller. Abnormal overheating of power cord and plug. 04006020101 © Sedna Aire Europe GmbH 10/2012...
-
Page 13: Location Of Installation
Make sure the exhaust over the cooker has enough capacity to suck up all cooking particles (esp. grilling and BBQ) Keep the cassette as far from the kitchen as possible 04006020101 © Sedna Aire Europe GmbH 10/2012... -
Page 14: Dimensions Of Cassette Unit
11. DIMENSIONS OF CASSETTE UNIT CMC12, CMC18 570 604 650 CMC24 840 (Indoor unit) 890 (Ceiling opening) 950 (Cover of cassette) The decorated covers of the cassette shall overlap the ceiling by min. 20 mm: 04006020101 © Sedna Aire Europe GmbH 10/2012... -
Page 15: Installation Of Indoor Cassette Unit
Remove the gasket anchor cardboard to avoid breaking of the gasket and tighten the nuts Remove the helping installation cardboard 04006020101 © Sedna Aire Europe GmbH 10/2012... - Page 16 Install a siphon at the end of the hose to avoid bad smell Provide an uprising hose straight at the beginning of the hose to prevent backflow of the condensate into the unit 04006020101 © Sedna Aire Europe GmbH 10/2012...
- Page 17 Isoalting sheet Drain hose When you install more cassettes, connect the drain hose serial from the highest to the lowest that always a negative slope downwards exists > 100 mm 1% slope 04006020101 © Sedna Aire Europe GmbH 10/2012...
-
Page 18: Electrical Wiring
Air leaks Gaps are not allowed and may cause bypasses of airflow and low efficiencies Improper attachment may cause water leakage and harm people and property Front Cover Panel Water drops 04006020101 © Sedna Aire Europe GmbH 10/2012... - Page 19 Raise indoor unit by screwing nuts on hanging rods through holes in pane. Make sure you don’t harm any connections Avoid gaps ! Wire the cover panel with indoor unit (Swing flap motor and display Panel Body Body Panel 04006020101 © Sedna Aire Europe GmbH 10/2012...
-
Page 20: Checks And Test Run
Limited warranty by Sedna Aire Europe Valid is the warranty claim as published on the Homepage of Sedna Aire Europe at the time of purchase date. Sedna Aire hereby warrants to the consumer that all units are free from defects in materials and workmanship, and will replace or repair system components in accordance with the terms of this Limited Warranty.
