Accton Technology CheetahAccess AC-IG1004 User Manual

Cheetahaccess internet gateway
Hide thumbs
Table of Contents

Advertisement

Quick Links

TM
CheetahAccess
Internet Gateway
AC-IG1004/AC-IG1008
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CheetahAccess AC-IG1004 and is the answer not in the manual?

Questions and answers

Related Manuals for Accton Technology CheetahAccess AC-IG1004

Summary of Contents for Accton Technology CheetahAccess AC-IG1004

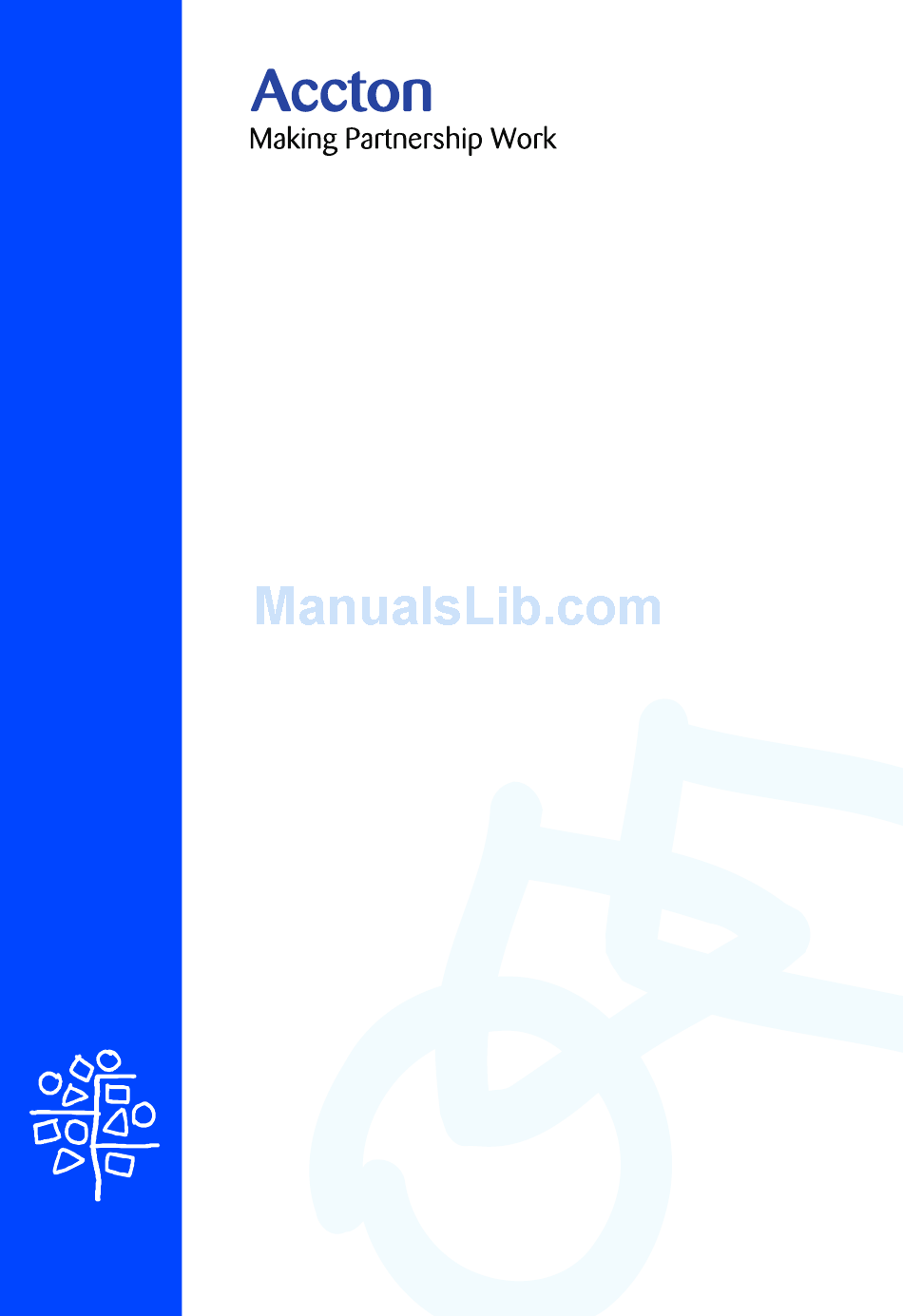

  • Page 1 CheetahAccess Internet Gateway AC-IG1004/AC-IG1008 User Guide...
