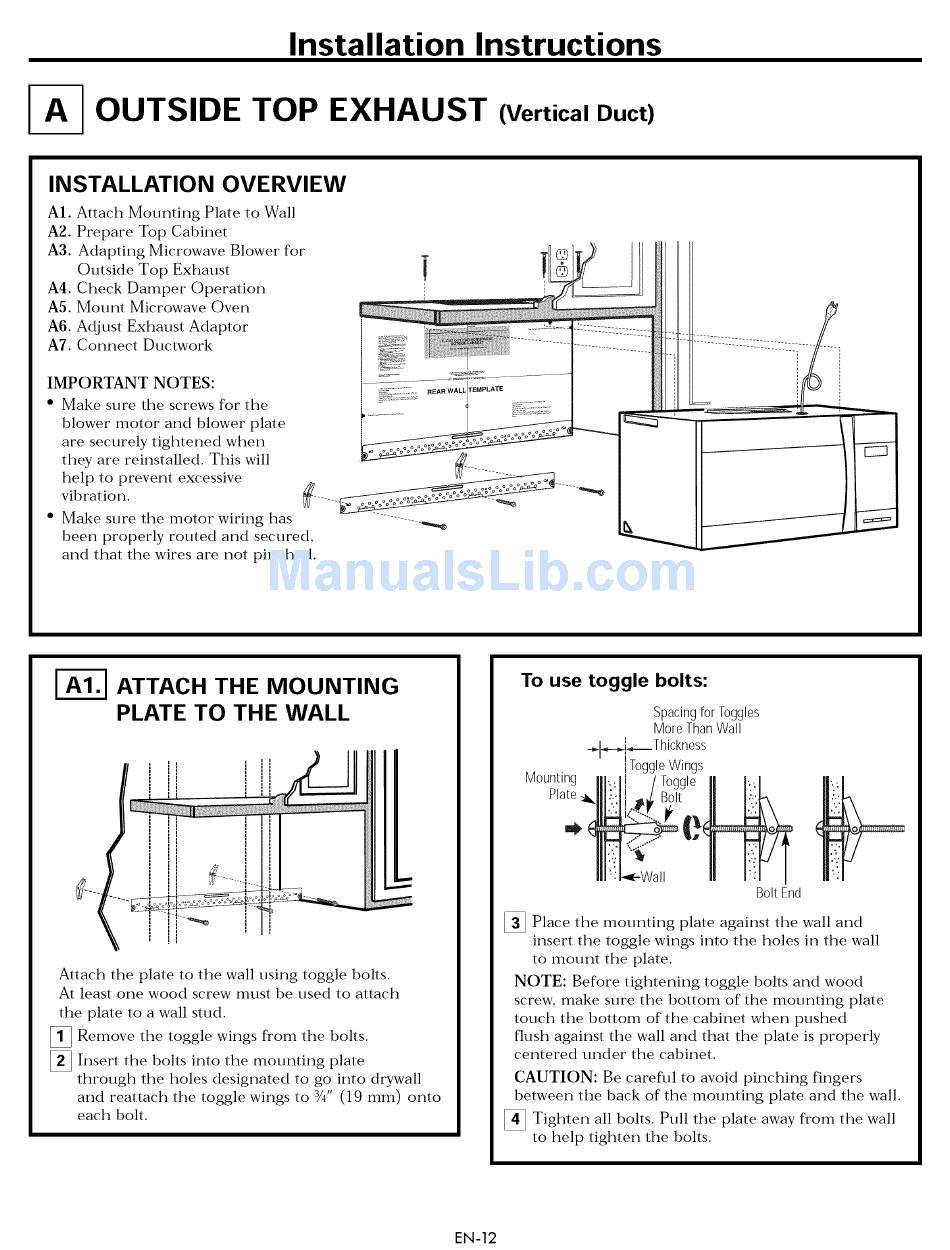

Installation
Instructions
OUTSIDE TOP EXHAUST
(Vertical
Duct)
INSTALLATION
OVERVIEW
A1. Attach
Mounting
Plate
to Wall
A2. Prepare
Top Cabinet
A3. Adapting
Microwave
Blower
for
Outside
Top Exhaust
A4. Check
Damper
Operation
A5. Mount
Microwave
Oven
A6. Adjust
Exhaust
Adaptor
A7. Connect
Ductwork
|
IMPORTANT
NOTES:
• Make
sure
the
screws
for the
blower
motor
and
blower
plate
are
securely
tightened
when
they
are
reinstalled.
This
will
help
to prevent
excessive
vibration.
• Make
sure
the
motor
wiring
has
been
properly
routed
and
secured,
and that the wires are not pinched.
ii
I
_-_
ATTACH THE MOUNTING
PLATE TO THE WALL
i
Attach
the
plate
to the
wall
using
toggle
bolts.
At least
one
wood
screw
must
be used
to attach
the
plate
to a wall
stud.
[]Remove
the
from
the
bolts.
toggle
wings
[]Insert
the
bolts
into
the
mounting
plate
through
the
holes
designated
to go into
drywall
and
reattach
the
toggle
wings
to 3/4" (19
mm)
onto
each
bolt.
To use toggle
bolts:
Mounting
Plate
Spacing for Toggles
More Than Wall
-_l_i_--Thickness
I
i Toggle Wings
Bolt End
]Place
the
mounting
plate
against
the
wall
and
insert
the
toggle
wings
into
the
holes
in the
wall
to mount
the
plate.
NOTE:
Before
tightening
toggle
bolts
and
wood
screw,
make
sure
the
bottom
of the
mounting
plate
touch
the
bottom
of the
cabinet
when
pushed
flush
against
the
wall
and
that
the
plate
is properly
centered
under
the
cabinet.
CAUTION:
Be careflfl
to avoid
pinching
fingers
between
the
back
of the
mounting
plate
and
the
wall.
]Tighten
all bolts.
Pull
the
plate
away
from
the
wall
to help
tighten
the
bolts.
EN-12
