Manual Effective Date: 12/10/2007
Replaces: All Previous Versions
Developed and printed in U.S.A.

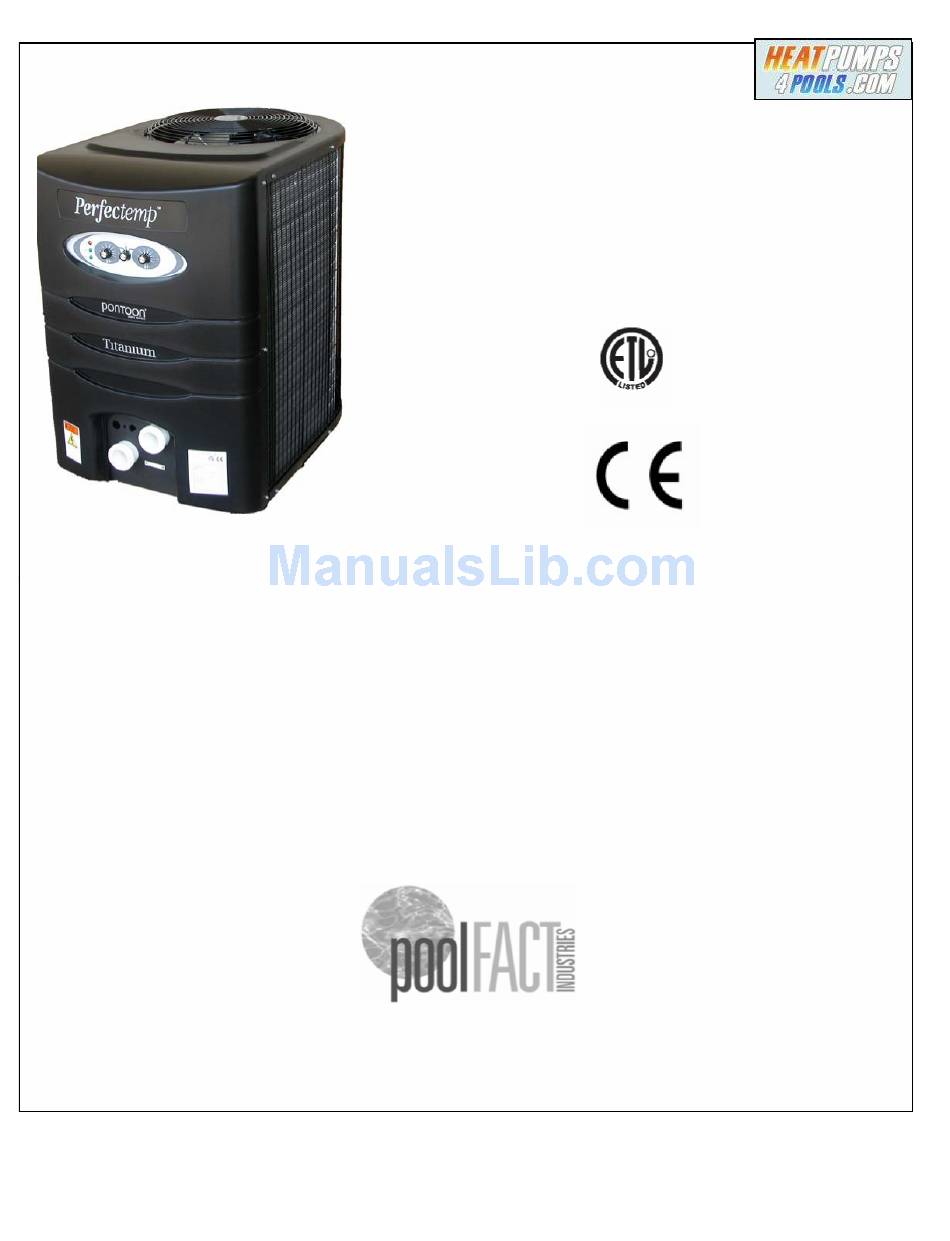

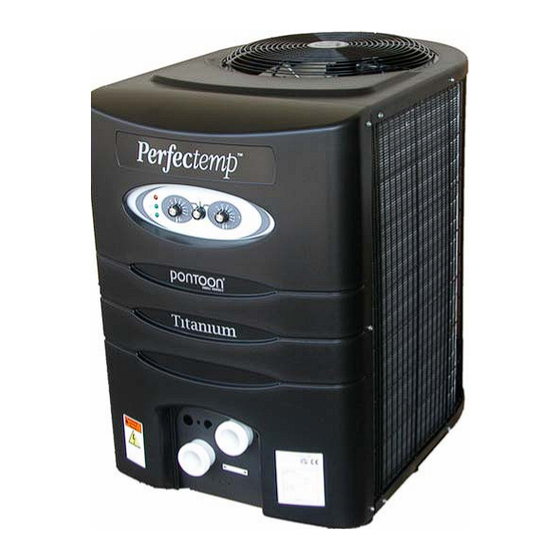

Perfectemp
Heat/Cool Heat Pump
OWNER'S MANUAL
This manual should be maintained in legible condition
and in a safe place for future use.
Manufactured by
TM
Swimming
Pool
R
C
US
9900276
Part No. 00-01 104B
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PoolFact Industries Perfectemp
Summary of Contents for PoolFact Industries Perfectemp
- Page 1 Page 1 Perfectemp Swimming Pool Heat/Cool Heat Pump OWNER’S MANUAL 9900276 This manual should be maintained in legible condition and in a safe place for future use. Manufactured by Manual Effective Date: 12/10/2007 Replaces: All Previous Versions Developed and printed in U.S.A.
- Page 2 Page 2 PRODUCT SAFETY SIGNS AND LABELS Recognize this symbol in the manual as an indication of important safety information! This manual, as well as the pool/spa heat pump itself, contains ANSI-approved product safety signs and labels. Please read these signs and labels, as they convey important safety information about hazards that may be potentially present in and around the heat pump.
-
Page 3: Table Of Contents
Page 3 Perfectemp Heat/Cool Heat Pump OWNER’S MANUAL CONTENTS Introduction............1 I. -
Page 4: Introduction
Page 4 Introduction This pool/spa heat pump is an electromechanical machine that incorporates a pressurized refrigerant gas in a sealed system. ONLY trained and qualified service personnel are authorized to install or service this equipment. Without proper training and knowledge of such equipment, any attempt to install or service the unit could result in serious injury or even death. -
Page 5: Electrical Connections
Page 5 The unit’s supporting base must be high enough to keep unit completely free of standing water at all times. Situate the pool heat pump carefully to minimize installation costs while providing maximum efficiency of operation, and to allow adequate service access, as follows: ... -
Page 6: Controls And Indicator Lamps
Page 6 Install a check valve and/or Hartford loop a minimum of 18 inches higher than the top of the chlorinator BETWEEN the heat pump and any automatic chlorinating devices. Follow the chlorinator manufacturer's instructions. Improper installation of erosion-type automatic chemical feeders can result in serious damage to the heat pump. - Page 7 Page 7 INDICATOR LAMPS There are 3 indicator lamps located on the unit control panel: Power (red lamp): When lit, indicates power is applied to the unit. NOTE: The heat pump will not run when the Remote position is selected and there is no remote control system attached.
-
Page 8: Initial Start-Up And Check
Page 8 V. Initial Start-Up and Check 1 . Verify that the lamp is ON and that the pool/spa pump is running and circulating Power properly. 2. Verify that the control panel Heat-Remote-Cool switch is in the Remote (OFF) position; see the figure. - Page 9 Page 9 Daily Heating Cycle Most heat pumps are sized to operate during the pool filtering cycle time of 8 - 10 hours daily to provide an even, steady flow of warm water over a long period of time. On warmer days, the unit will run less, on cooler days, longer.
-
Page 10: Seasonal Start-Up Or Annual Check
Page 10 VI. Seasonal Start-Up or Annual Check NOTE: At the beginning of the heating season or whenever the pool water temperature is to be raised several degrees, the pool pump and heat pump may need to operate continuously for several days. During summer months, only a few hours per day may be necessary or none at all. -
Page 11: Freeze Protection
Page 11 IX. Freeze Protection If the heat pump is installed in a location subject to freezing conditions, it is important to protect the water circuit from freezing, just as should be done for the pump and filter. System Drain-Down 1. -
Page 12: Troubleshooting
Page 12 C. Unplug Condensation Drain Holes - The heat pump extracts humidity from the air as it passes through the coil, similar to the way a cold drink outside “sweats” on a hot day. This con- densation drains from the bottom of the unit. 1. -
Page 13: Service Call Verification
Page 13 B. UNIT IS NOT RUNNING Is the control panel lamp ON? If not, the circuit breaker may be shut OFF or tripped. Power Reset the breaker by switching it OFF, then back ON. Verify that the breaker is set and operating properly before calling for service. -
Page 14: Plumbing Diagrams
Page 14 Plumbing Diagrams Water Water Out Filter (from pool (to pool or spa) or spa) For systems with pumps of less than 2 HP (under 80 gpm ), no external bypass is required. Connections are 2-inch unions. Plumb the heat pump after the filter and before any chlorinators.
