The Personal Motorcycle Navigator
User's Manual
B125CC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the The Personal Motorcycle Navigator and is the answer not in the manual?

Questions and answers

Related Manuals for Roadmate The Personal Motorcycle Navigator

Summary of Contents for Roadmate The Personal Motorcycle Navigator

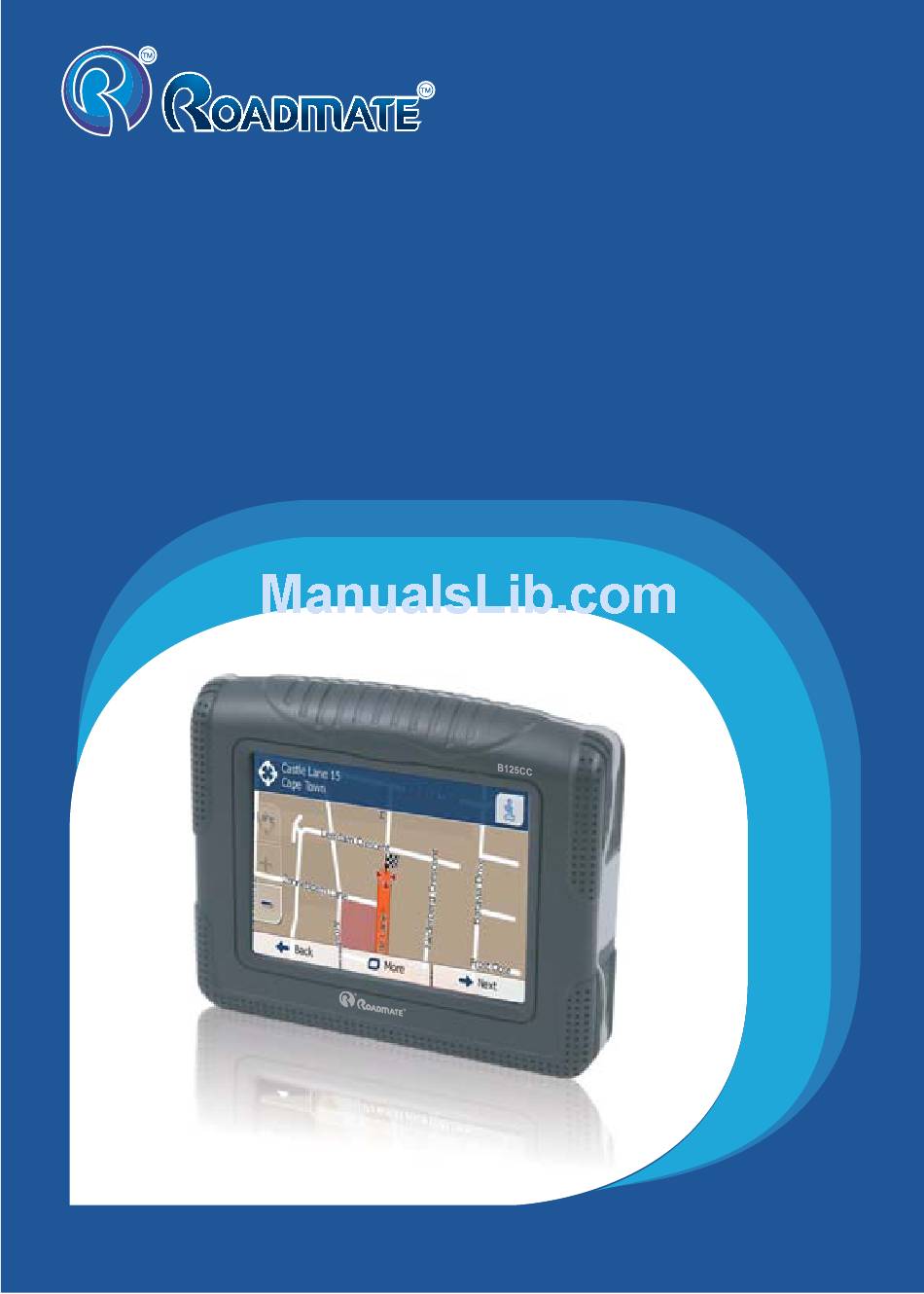

  • Page 1 The Personal Motorcycle Navigator User’s Manual B125CC...

  • Page 2: What Is Gps

    B125CC User’s Manual Please read this manual carefully before operating your navigation device. Retain it for future reference. Operation of our device is very easy, simply you press the button or touch the screen. What is GPS? The Global Positioning System (GPS) is a satellite-based navigation system made up of a network of 24 satellites placed into orbit by the U.S.
  • Page 3 B125CC User’s Manual 8.If the product emits an unusual ordor or excessive heat, or you notice anything else that seems unusual, do not use the product . 9.When you install the mount,fix well the machine to motorcycle handlebars, to avoid the machine falling down and damaging. 10.When attaching a navigation holder to car, remove impurities on the surface before attaching, and press suction cup lever to avoid falling.
  • Page 4 B125CC User’s Manual Name of the components Host GPS Device: Power Key: Power on/off Display Screen MINI USB Port: 1.Exchange the data with PC by MINI USB Cable. 2.Charge the GPS device by connecting AC adaptor or car charger Reset: Press this key to reset the system Speaker External Power supply: Connected with ouside power supply like GPS storage battery.
  • Page 5 B125CC User’s Manual Note: The top of the stylus can be used as a screwdriver. B) Install the machine to the external power backup 1. Install the machine to the cradle as shown . 2. And then rotated the screw according to L direction,until it is fixed with machine C) Install the mount to the motorbike handlebar 1.
  • Page 6 B125CC User’s Manual E) Connected the external devices with the power of motorcycle. 1. Connect the end line of the external devices with the motorbike's power Note: when the user connected the power, please consider the right position, it is the best if a technician can help you, because of you personal fault, you should take the responsibility for yourself.

  • Page 7: Power Supply

    B125CC User’s Manual Power Supply The device has three ways of power supply:battery supply , AC Adapter and car adapter (1)Lithium battery When the device doesn't connect with the adaptor, it is supplied by the lithium battery. (2)AC adapter (usualy optional)(not included) When the device connects with the adaptor, it is supplied by the outer power supply.

  • Page 8: Connect To Pc

    B125CC User’s Manual cover, Tighten the screw according to direction 3.One side of USB insert the product,and the other connected with the computer. Note: During transmiss the date. please do not pull out the card. Connect to PC Ensure the device, and any other external device connected to the unit, is power off and unplugged from the power supply before you attempt to connect the unit to any external device.

  • Page 9: Main Menu

    B125CC User’s Manual Main Menu Main menu will be displayed when the device is power on. Multimedia , Enter Multimedia interface.
  • Page 10 B125CC User’s Manual Music , Enter Music interface. Play Playing Time Pause Item name Stop Playing Progress Previous Volume Adjustment Next Return Circle play Close Random play...
  • Page 11 B125CC User’s Manual Video , Enter Video interface. Play Playing Progress Pause Volume Adjustment Stop Return Previous Close Next...
  • Page 12 B125CC User’s Manual Ebook , Enter Ebook interface. Item name & format Load book mark Previous Next Current page/Total page Return Close...
  • Page 13 B125CC User’s Manual Photo , Enter Photo interface. Previous Return Next Close Full screen Rotation Zoom in Zoom Out . When you initially orient, you had better to go to a open place without upper shelter and wait for patiently .
  • Page 14 B125CC User’s Manual Setting , Enter Setting interface. Bluetooth , Enter Bluetooth interface.
  • Page 15 B125CC User’s Manual 1.Enter Bluetooth and tap “setting” 2. Enter Setting and tap “search Device” 3 Search Bluetooth earphone, link the device 4. link success, it shows: 1. Only support Bluetooth earphone (which can search the phone, but can not connect) 2.
  • Page 16 B125CC User’s Manual Volume Date Click adjust volume. Click to adjust the date/time/zone. Backlight Power Click to adjust lightness. Enter this interface to see the power situation.
  • Page 17 B125CC User’s Manual Language Theme Enter this interface select language. You can choose different colour for background according to your like NaviPath click to adjust the navigation path. choose the connection way to GPS once.
  • Page 18 B125CC User’s Manual System You can see relevant information from left picture entering the interface tap it,GPS search star test. tap it,it gets back to original setting. When you tap the menu or operate the device, touch panel isn't sensitive, you need to adjust the touch panel.

  • Page 19: Specification

    B125CC User’s Manual Specification Weight: 190 G product size: 105mmX88.7mmX23mm 3.5 inch touch panel, TFT screen Display color: 65k colors Display resolution: 320 x 240 Pixels CPU Chipset: SAMSUNG S3C2416 processor533MHz Operating System: Microsoft WinCE.NET5.0 (Core Version) Built-in Memory: 128MByte DDR2 SDRAM Flash Memory: 2GB (NAND flash) Built in Bluetooth Waterproof IP54...
  • Page 20 B125CC User’s Manual Disclaimer Unauthorized distribution of this manual is strictly prohibited. All features and specifications are subject to change without notice. All the pictures in this manual is simulation. The practicability will be prevailing!
  • Page 21 B125CC User’s Manual Manufactured and Distributed by CNS Marketing 2.Noble Road Bordeaux Randburg 2195 Tel: (011)781-6001 www.roadmategps.co.za...
