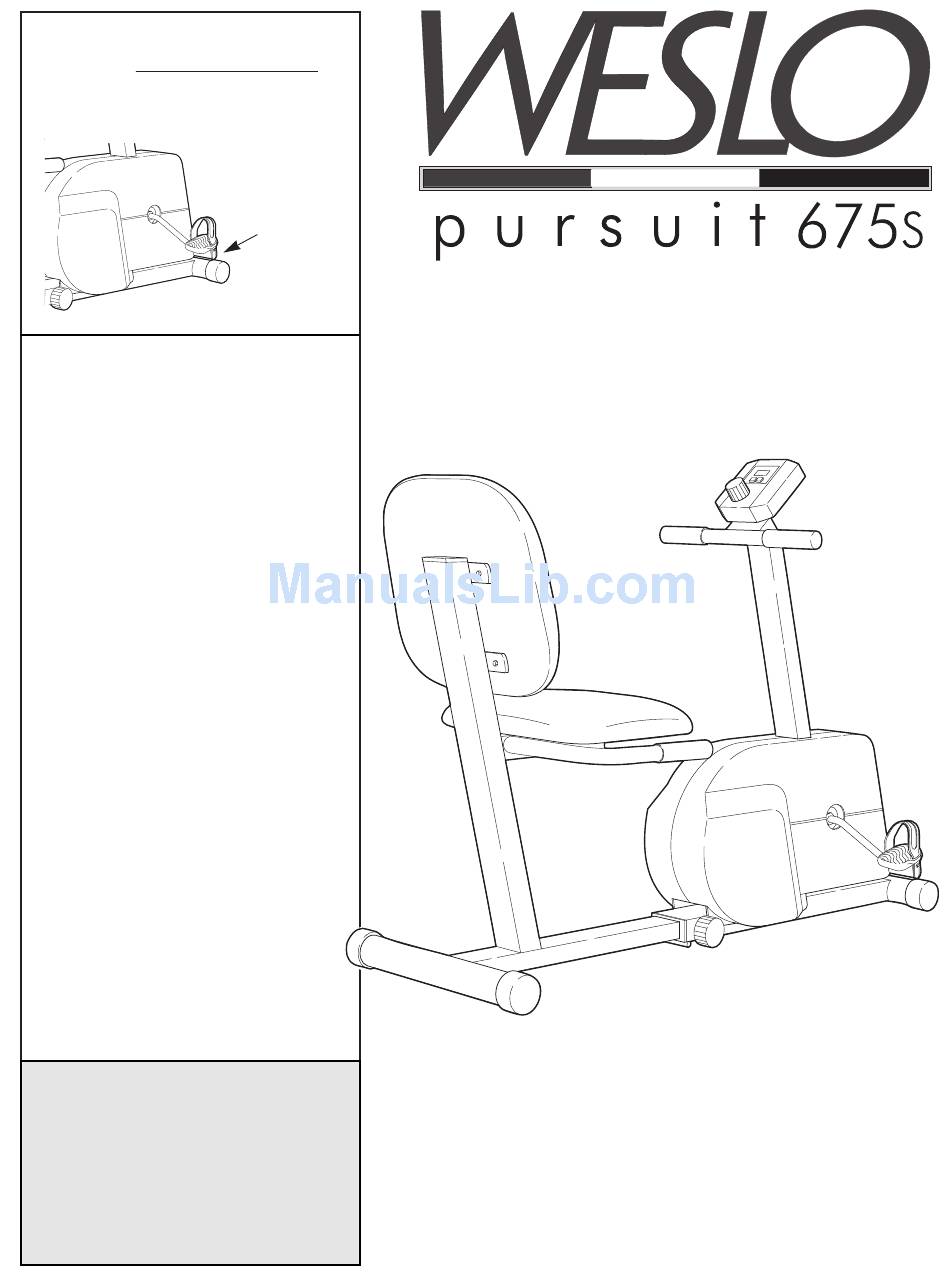

Model No. WLEX27182
Serial No.
Write the serial number in the
space above for reference.
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if there are
missing or damaged parts, we
will guarantee complete satis-
faction through direct assis-
tance from our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DIRECT
TO OUR TOLL-FREE CUSTOMER
HOT LINE. The trained techni-
cians on our customer hot line
will provide immediate assis-
tance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.ÐFri., 6 a.m.Ð6 p.m. MST
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Serial
Number
Decal
USER'S MANUAL
¨
Patent Pending
Advertisement
Table of Contents
Related Manuals for Weslo Pursuit 675srecumbent Bike
Summary of Contents for Weslo Pursuit 675srecumbent Bike
- Page 1 ¨ Model No. WLEX27182 Serial No. Write the serial number in the space above for reference. Serial Number Decal QUESTIONS? As a manufacturer, we are com- mitted to providing complete customer satisfaction. If you have questions, or if there are missing or damaged parts, we will guarantee complete satis- faction through direct assis-...
-
Page 2: Table Of Contents
¨ TABLE OF CONTENTS IMPORTANT PRECAUTIONS .............3 BEFORE YOU BEGIN . -
Page 3: Important Precautions
IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read the following important precautions before using the WESLO ¨ PURSUIT 675s. 1. Read all instructions in this manual before 9. If you feel pain or dizziness at any time using the exercise cycle. -
Page 4: Before You Begin
BEFORE YOU BEGIN Thank you for selecting the innovative WESLO ¨ through Friday, 6 a.m. until 6 p.m. Mountain Time PURSUIT 675s. The PURSUIT 675s offers a unique (excluding holidays). To help us assist you, please form of low-impact exercise that offers greater cardio- mention the product model number and serial number vascular benefits and increased muscle toning. -
Page 5: Assembly
ASSEMBLY Place all parts of the exercise cycle in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed. Assembly requires the included tools and your own adjustable wrench and phillips screwdriver To identify the small parts used in assembly, use the drawings below. - Page 6 1. Loosen the Frame Knob (29) on the right side of the Frame (1). Slide the Seat Frame (2) out until it stops. Retighten the Frame Knob. 2. Route the Reed Switch Wire Extension (62) down through the Handlebar Post (3) and connect it to the Reed Switch Wire (42).
- Page 7 5. Attach the Seat Upright (57) to the Seat Frame (2) with four M8 x 55mm Carriage Bolts (11) and four M8 Nylon Locknuts (55). Note: It may be helpful to tip the exercise cycle on its side to attach the Seat Upright.
- Page 8 8. Attach the Seat (44) to the Seat Bracket (56) with four M6 x 16mm Hex Head Screws (46). 9. Attach the Seat Handles (25) to the Seat Bracket (56) with two M8 x 100mm Hex Head Bolts (12), two M8 Washers (26) and two M8 Nylon Locknuts (55).
-
Page 9: How To Use The Exercise Cycle
11. Identify the Left Pedal (39) (there is an ÒLÓ on the Left Pedal for identification). Using an adjustable wrench, firmly tighten the Left Pedal counterclock- wise into the left arm of the Crank (7). Tighten the Right Pedal (not shown) clockwise into the right arm of the Crank. - Page 10 DESCRIPTION OF THE CONSOLE HOW TO OPERATE THE CONSOLE 1. To turn on the power, press the on/reset button or simply begin pedaling. When the power is turned on, the entire Mode Indicator display will appear for two seconds. The console will then be ready for opera- tion.
-
Page 11: Maintenance
MAINTENANCE Inspect and tighten all parts of the exercise cycle reg- ularly. The exercise cycle can be cleaned with a soft, damp cloth. To prevent damage to the console, keep liquids away from the console and keep the console out of direct sunlight. BATTERY REPLACEMENT If the console does not function properly, the batteries should be replaced. -
Page 12: Conditioning Guidelines
CONDITIONING GUIDELINES Burning Fat WARNING: Before beginning this or any To burn fat effectively, you must exercise at a relative- exercise program, consult your physician. ly low intensity level for a sustained period of time. This is especially important for individuals During the first few minutes of exercise, your body over the age of 35 or individuals with pre- uses easily accessible carbohydrate calories for ener-... - Page 13 A Cool-downÑFinish each workout with 5 to 10 min- outs each week, with at least one day of rest between utes of stretching. This will increase your flexibility and workouts. After a few months of regular exercise, you will help to prevent post-exercise problems. may complete up to five workouts each week if desired.
-
Page 14: Part List
PART LISTÑModel No. WLEX27182 R0200A Key No. Qty. Description Key No. Qty. Description Frame Seat Frame Bushing Seat Frame Frame Bushing Handlebar Post #8 x 1/2Ó Black Screw Tension Spring Right Pedal w/Strap Cable Clamp Bolt Left Pedal w/Strap Drive Belt Cable Clamp Washer Crank Resistance Spring... -
Page 15: Exploded Drawing
EXPLODED DRAWINGÑModel No. WLEX27182 R0200A 53 54 47 56 16 15... -
Page 16: Ordering Replacement Parts
Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be prepared to give the following information: ¥ The MODEL NUMBER of the product (WLEX27182). ¥ The NAME of the product (WESLO ¨ PURSUIT 675s).
