Summary of Contents for JOBO HD 1080P

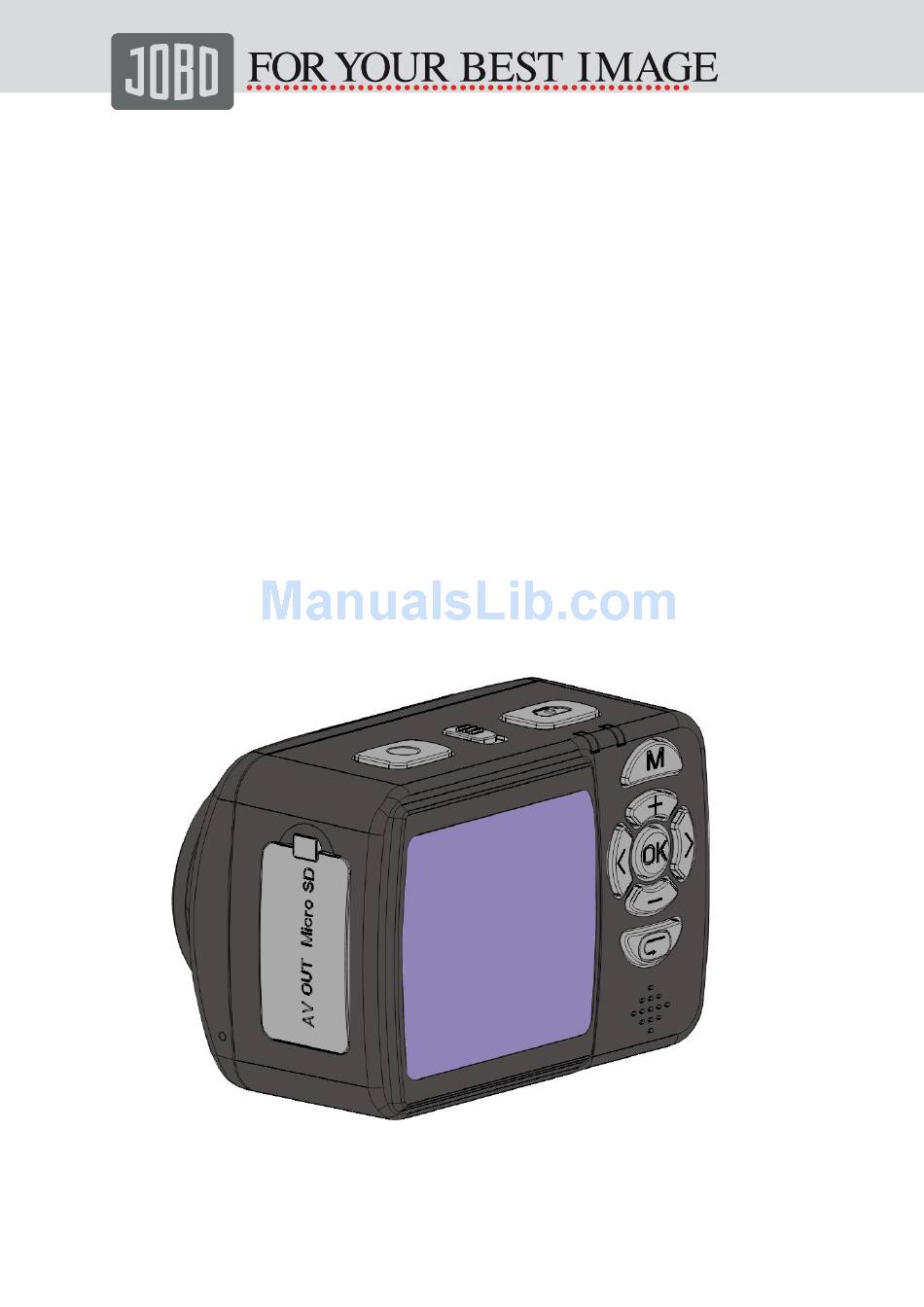

- Page 1 Operation Guide JOBO JIB 2 Outdoor Sports HD 1080P Camera...
- Page 2 EC-Declaration of Conformity We declare JOBO International GmbH, Eintrachtstr. 14, D-51645 Gummersbach that the “JOBO HD Sports Camera JIB 2” complies with the following directives: EN 55022: 2006+A1: 2007 EN 61000-3-2: 2006+A1:2009+A2:2009 & EN 61000-3-3:2008 EN 55024:2010 (EN 61000-4-2:2009, EN 61000-4-3:2006+A1:2008+A2:2010...
- Page 3 Main Features 1080P HD video recording 1.5” TFT display screen, real-time display Professional waterproof housing: IP68 under water 30 meters Brackets for bicycle, motorcycle and helmet Replaceable and rechargeable lithium battery 1/2.5 CMOS sensor, 5.0 Mega Pixels ...
- Page 4 Packing Accessories 1) Camera x 1 2) Waterproof Housing x 1 3) Bracket for Waterproof housing x 1 4) Bicycle/Motor Bracket x 1 5) Helmet Bracket x 2 6) Camera Bracket x 1 7) HDMI Cable x 1(optional) 8) A/V Cable x 1 9) Bandage for Helmet 10) USB Cable x 1 11) Power Adapter x 1...
- Page 5 17) User’s Manual x 1 Note: The photos may vary from the actual objects. Quick Look 1. Record Button 2. Power on/off switch 3. LED Indicator for Power/Charge (red) 4. LED indicator for Record(Green) 5. DC button 6. USB Socket 7.
- Page 6 video camera to take photos. Preparations 1. Install the battery. 2. Charge the battery Connect the camera to power with adapter. The LED will be flashing red. When the battery is fully charged, the LED will be green. 3. Insert the memory card. 4.
- Page 7 6. Set the Parameters Power on the camera. Press M, then press < or > to turn left or right, press + or － to go up and down, press OK to set the menu you select, then press M again to exit the setting. ...
-
Page 8: Video Recording
If you use the digital zoom function while recording, the video file will be bigger. It will be saved separately less than 15 or 30 minutes. Video Recording The Compression Technique —H.264 ensures high quality videos. 1. Make sure the memory card inserted has enough capacity, then slide the power switch to ON. - Page 9 Manual Mode: When the video camera is power on, press the DC button, the camera will take one picture, the indicator light will flick one time. 4. Three-shot mode: Press the button M, then press the button > to select the icon PHOTO, choose Three-shot Mode.
- Page 10 ● Photo files: press the button < or >, select the photo files you want to display. The functions of the buttons when the camera is displaying photo files: 1. +: zoom in 2. -: zoom out, thumbnail 3. <：select left pictures; in “ZOOM IN” mode, it can move up the pictures . 4.
- Page 11 When the power is OFF, inserting a USB can recharge the video camera. When the power is ON, connecting the camera to the computer, you can copy the content in the memory card. Specification 500 万 CMOS SENSOR（2592*1944） image sensor visual angle 150 degrees...
-
Page 12: Trouble Shooting
temperature working humidity 15~85%RH Trouble Shooting Trouble Reason Solution Check the Make sure the Power Switch was slide to POWER Switch ON position. LCD and LED does Make sure the battery is installed not light when power correctly. Check the Make sure the battery is full recharged battery before using. -
Page 13: Warranty Conditions
- A hard disk change during the warranty period must only be performed by JOBO. Such a change by any other party will entail the loss of all warranty claims. If you want to make any claims under the warranty you are asked to contact the... - Page 14 JOBO product and may also have to submit proof of purchase to show that the warranty period has not yet elapsed 8 Contact/Service If you have any questions on or need help with our products please do not hesitate to get in touch with our Technical Service. You can reach our service...
- Page 15 Subject to technical changes...
