SELF-GUARD SG-100 User Manual

The smallest, wireless, mobile, and covert dvr in the world
Hide thumbs
Table of Contents

Advertisement

Quick Links

Enlarged version
The Smallest, Wireless, Mobile, and Covert DVR in the World
SELF-GUARD
General Version: SG-100, SG-200, and SG-300
Special Version: SG-110, SG-210, and SG-310
User's Guide
This product is registered with electromagnetic wave standards
and can be used for any place including residential area.
Thank you for purchasing this Self-Guard product.
-
Before using it, be sure to read the precautions contained in the User's Guide.
-
Keep the User's Guide in a safe place for future reference.
-
For the most up-to date information about this product, visit our official website
at http://www.idview.com/.
TM
Unpacking

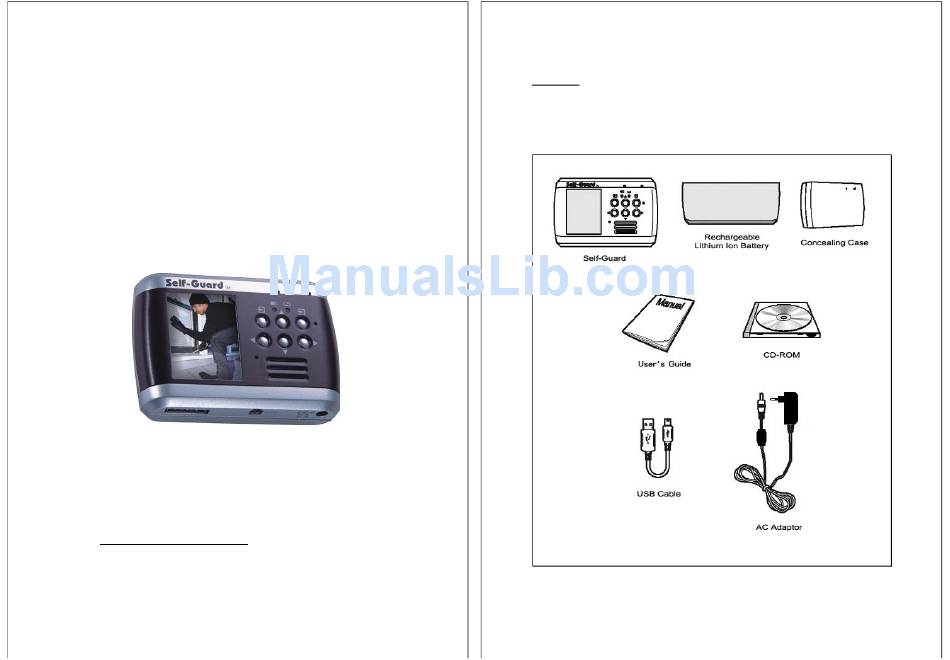

Check to make sure that all of the items shown below are included with your Self-
Guard. If something is missing, contact your dealer as soon as possible.
