Summary of Contents for Hafler SR2300

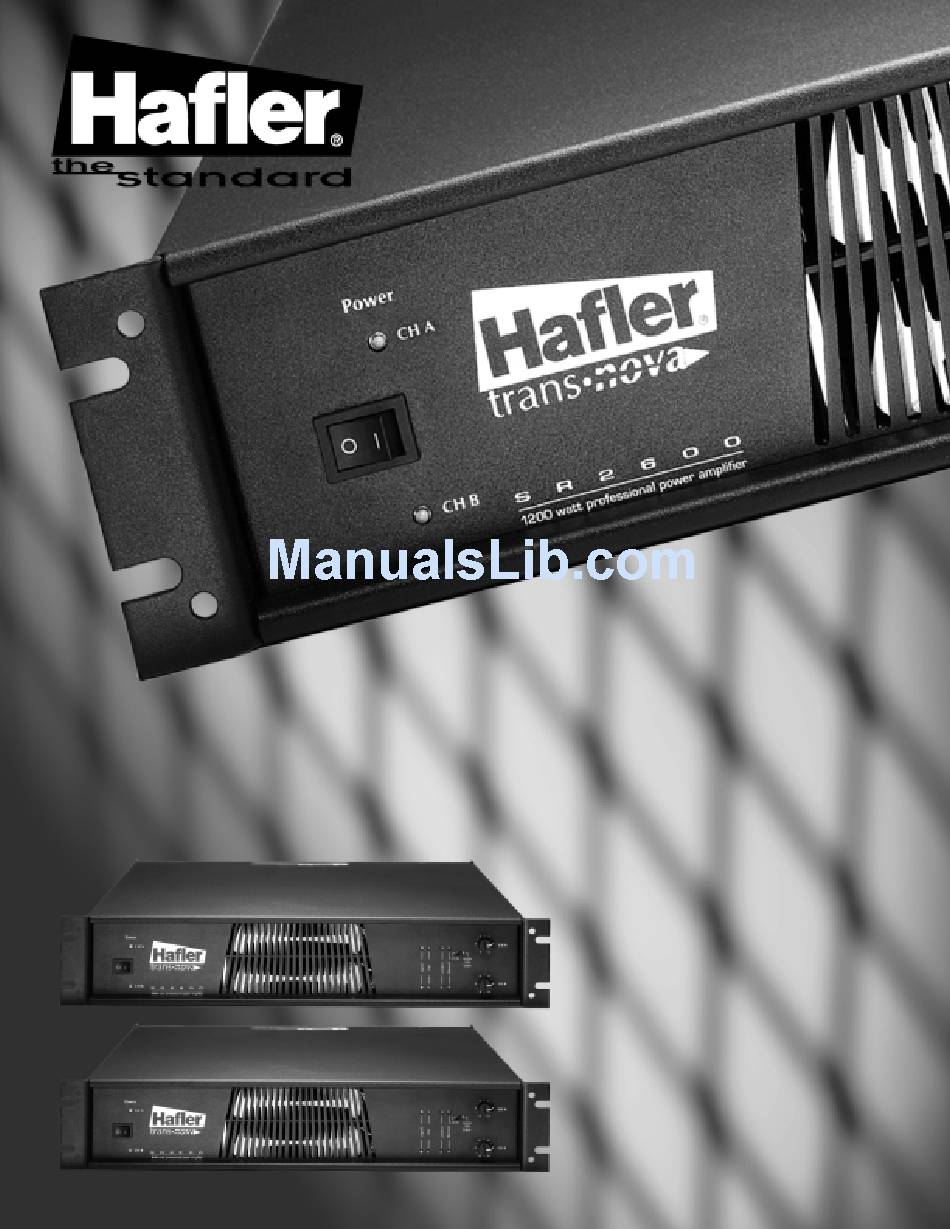

  • Page 1 Owner’s Manual Owner’s Manual SR2300 SR2300 SR2600 SR2600...

  • Page 3: Table Of Contents

    DECLARATION OF CONFORMITY ............. . 2 SAFETY INFORMATION .

  • Page 4: Declaration Of Conformity

    Declaration of Conformity Application of Council Directive: 73/23/EEC (low voltage directive) Application of Council Directive: 89/336/EEC (EMC Directive) Standard(s) to which Conformity is Declared: EN55103-1 (Emissions) Manufacturer’s Name: Hafler Manufacturer’s Address: 546 South Rockford Drive, Tempe, Arizona 85281 Importer’s Name: Importer’s Address: Type of Equipment: 2-channel Audio Power Amplifier Model No.:...

  • Page 5: Safety Information

    TO PREVENT FIRE OR SHOCK HAZARD DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. 1. READ INSTRUCTIONS All the safety and operating instructions of your Hafler equip- ment should be read before power is applied to the equipment. 2. RETAIN OWNER'S MANUAL These safety and operating instructions should be retained for future reference.
  • Page 6 1. LEA LAS INSTRUCCIONES Todas las instrucciones de seguidad y operación de su equipo Hafler, deben ser leídas antes de que el equipo sea conectado dléctricamente. 2. CONSERVE EL MANUAL DEL PROPIETARIO Estas instrucciones de seguridad y operación, deben ser con-...
  • Page 7 Achten Sie darauf, dab weder Fremdkörper, noch Flüssigkeiten in das Gerät eindringen. 14. ERFORDERLICHER REPARATURSERVICE Hafler Equipment sollte nur von qualifizierten Service- Technikern instand gesetzt werden, wenn: A. Das Stromversorgungskabel beschädigt wurde B. Eine Flüssigkeit in das Gerät eingedrimgem ist C.
  • Page 8 à éviter toute pénetration dans l'enceinte du matériel. 14. DÉGÂT NÉCESSITANT UNE RÉVISION Le matériel Hafler devrait être révisé par des personnes qual- ifées de service après-vente, lorsque: A. Les fiches ou la prise de courant ont été endommagé, ou: B.
  • Page 9 Si deve prestar attenzione che oggetti e liquidi, come fluidi detergenti e bibite, non vengano versati all'interno dell'apparato. 14. RIPARAZIONI Gli apparati Hafler devono essere riparati da personale qualifi- cato quando: A. Il cavo di alimentazione o la spina sono danneggiati B.

  • Page 10: Specifications

    "U" version (115VAC nominal) "CE" version (230VAC nominal) MAINS POWER VOLTAGE: "U" version "CE" version *both channels driven at rated power SR2300 300W x 2 CH 300W x 2 CH 300W x 2 CH 600W x 1 CH 600W x 1 CH...

  • Page 11: Introduction

    WEIGHT: Introduction The Hafler SR2300 and SR2600 amplifiers are two rack height, two channel, fan-cooled professional power amplifiers suit- able for use in the most demanding sound reinforcement and commercial sound installations. These amplifiers offer out- standing efficiency by means of three technologies: high-efficiency TRANS•nova Class-G circuitry, high-frequency switch- ing power supplies, and constant power output/load impedance selection switches.

  • Page 12: What Else Distinguishes These Amplifiers

    WHAT ELSE DISTINGUISHES THESE AMPLIFIERS? Constant power into varying impedances. It takes twice as much current to develop a given wattage into 2 as it does into 8 —but only half the voltage. Many amplifiers quote a high output current at 2 but have an unpublished operating time measured in a handful of seconds—before thermal shutdown (hopefully) precludes thermal meltdown.

  • Page 13: Design Features

    Design Features – Audio GND Chassis CH A CH A BIAMP STEREO Mono,70V,100V For 70V, 100V, or Mono • Use CH B input • Load across RED terminals • Set load switches to one Class 2 wiring CH B CH B (Mono) 1.

  • Page 14: Installation

    Installation The SR2300/2600 is a standard 2U (2 rack height) 19" rack-mount unit, with both front and rear rack mounting ears. In portable systems, the amplifier must be supported at both the front and rear. COOLING The SR2300/2600 uses forced-air cooling (fan cooling) to remove the heat produced during normal operation. Free air flow at the mounting location is a critical factor in accomplishing long-term reliable operation of the amplifier.

  • Page 15: Audio Ground Chassis/Float Switch

    • The chassis is permanently conected to the earth (safety) ground pin of the Mains power connector. • The Audio Ground of each SR2300/SR2600 is permanently connected to the black terminals of both output binding posts, to pin 1 of each XLR input, and to the sleeve of each 1/4" input.

  • Page 16: Operation

    INPUT The input jacks used on the SR2300/2600 are dual function connectors which accept 1/4" TRS (Tip Ring Sleeve) or male XLR plugs. The amplifier will operate with either a balanced or unbalanced signal, from earth ground or floated source equipment.

  • Page 17: Floated Equipment

    GROUNDED, UNBALANCED SOURCE FLOATED EQUIPMENT Units with a 2-pin mains power cord have no means to connect the audio output ground to earth ground, so usually the audio output ground is floated from earth ground. However, this does not insure that when installed in a system, the audio output ground will remain floated from earth ground.

  • Page 18: Biamp/Stereo Switch

    70V mode). BIAMP/STEREO SWITCH Turn amplifier off before operating this switch. This switch is located on the rear panel and selects either: Stereo mode- 2 input signals and 2 output signals. Biamp mode- 1 input signal and 2 output signals. Biamp mode is useful if a mono signal needs to be distributed to speakers of differing impedance or power level.

  • Page 19: Thermal

    If the “Protect” LED is illuminated for prolonged periods during normal operation, select the next lower value Load Switch setting. Continue until the “Protect” LED ceases to illuminate, or lights infrequently. This switch can be safely operated while the amplifier is running. In 70V or 100V mode, the “Protect” LED indicates there are too many speakers loading the array.

  • Page 20: Wiring Diagrams

    Wiring Diagrams STEREO MODE (SR2300/SR2600) Load 100V 100V CH A CH B (Mono) 1. Connect signal from source to both CH A and CH B inputs. 2. Move Biamp/Stereo switch to Stereo input mode. 3. Move Stereo/Mono switch to Stereo mode.

  • Page 21: Bridge Mono Mode

    BRIDGE MONO MODE (SR2300/SR2600) Load 100V 100V CH A CH B (Mono) 1. Connect signal from source to CH B input. 2. Biamp/Stereo switch not active-(Stereo/Mono switch overrides this switch when in mono/70V/100V mode). 3. Move Stereo/Mono switch to MONO mode.

  • Page 22: 100V Mono Mode

    Parallel Array 5. Connect parallel array of 100V transformer-equipped speakers across the red terminals of the 5-way binding posts. (1200W – SR2600, 600W – SR2300) 6. CH B input sensitivity controls 100V mono output level. Amplifier will clip at 100Vrms level.

  • Page 23: Service Policy And Limited Warranty

    Please call 1-800-669-9899 for Rockford/Hafler support. You must obtain an RA # (return authorization number) to return any products to Hafler. You are responsible for shipment of product to Hafler. Always include Proof of Purchase. Mark RA# on outside of shipping carton.

  • Page 24: Pc Board Layouts

    PC BOARD LAYOUTS CODE R137 CR22 R127 FLOAT CHASS R347 R346 R344 R350 R345 R293 R295 C182 C183 JW6A2 R306 C151 C146 R254 R251 C155 R327 C154 R245 R326 R250 R191 R337 R237 R247 R233 R227 R359 R236 R360 R230 R285 R224 R223...

  • Page 25: Emi Filter

    EMI FILTER – 23 – HAFLER PC-2460-E KS4R BLACK BLACK...

  • Page 26: Schematic Diagrams

    Schematic Diagrams EMI FILTER – 24 –...

  • Page 27: Bridge Rectifier

    BRIDGE RECTIFIER – 25 –...

  • Page 28: Amplifier

    AMPLIFIER – 26 –...
  • Page 29 C600_maualB.sch-1 – 27 –...

  • Page 30: Protection

    PROTECTION – 28 –...
  • Page 31 C600_maualB.sch-2 – 29 –...

  • Page 32: High Voltage Control

    HIGH VOLTAGE CONTROL – 30 –...
  • Page 33 C600_maualB.sch-3 – 31 –...

  • Page 34: Housekeeping Control

    HOUSEKEEPING CONTROL – 32 –...
  • Page 35 C600_maualB.sch-6 – 33 –...

  • Page 36: Input

    INPUT – 34 –...
  • Page 37 C600_maualB.sch-8 – 35 –...

  • Page 38: Power

    POWER – 36 –...
  • Page 39 C600_maualB.sch-5 – 37 –...
  • Page 40 A DIVISION OF ROCKFORD CORPORATION ® 546 SOUTH ROCKFORD DRIVE TEMPE, ARIZONA 85281 U.S.A. IN U.S.A. (480) 967-3565 / IN CANADA, (604) 942-1001 IN EUROPE, FAX 8503-9340-14 / IN JAPAN, FAX (81) 559-79-01265 MAN-2568C 5/00 MJT...
