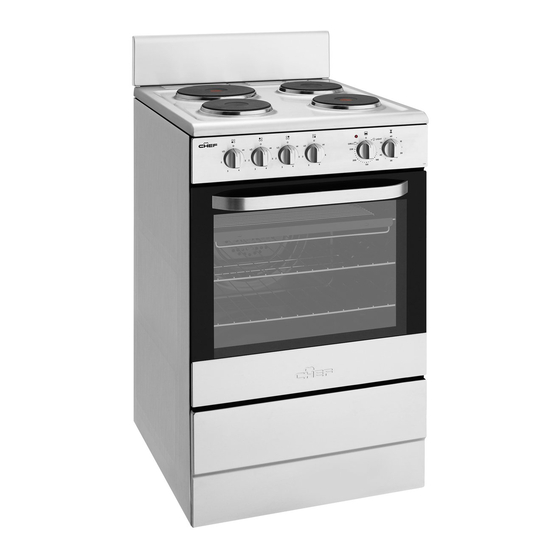

- Page 1 540MM UPRIGHT COOKERS co o kin g User Manual CFE532WA, CFE536WA, CFE536SA, CFE535WA, CFE537WA, T he Che f in Aussie kitche n s CFE547WA, CFE547SA, CFG504WA, CFG504SA, CFG503WA, fo r o ver 70 y ears CFG515WA, CFG517WA, CFG517SA...
-
Page 2: Table Of Contents
congratulations contents Congratulations and thank you for choosing your Chef upright Important safety instructions ...........3 cooker. We are sure you will find your new appliance a Operating for the first time ..........4 pleasure to use and a great asset to your cooking. Before Installing your oven accessories ........5 you use the appliance, we recommend that you read through the whole user manual which provides a description of the... -
Page 3: Important Safety Instructions
important safety instructions to avoid an electric shock or fire oven warnings WARNING WARNING This appliance is NOT intended for use by persons DO NOT use oven door as a shelf. (including children) with reduced physical, sensory or DO NOT push down on open oven door. mental capabilitie, or lack of experience and knowledge, If the gas oven does not light in 8 seconds, allow unless they have been given supervision... -
Page 4: Operating For The First Time
operating for the first time choosing utensils for gas and electric hotplates Refer to diagram below GOOD GOOD (recessed base) (undersize) (moisture on hotplate) (convex base) (oversize) (no utensil) (recessed base) (convex base) (undersize) (oversize) (moisture on hotplate) (no utensil) installation and service warning Before operating first time WARNING... -
Page 5: Installing Your Oven Accessories
installing your oven accessories fitting oven shelves fitting the grill dish 1. Ensure shelf orientation is correct (refer to diagram below) Separate Grill: Ensure rear of the dish is engaged with the side support before sliding backwards. To remove, simply 2. -
Page 6: Using The Gas Cooker
using the gas cooker gas oven features and descriptions 1. Burner Control Knob – sets burner temperature 2. Grill Control Knob – sets grilling temperature CFG504SA 3. Oven Control Knob – sets oven temperature 4. Timer 60 Minute (where fitted) – sets reminder time. CFG504SA When timer returns to zero, timer gives a short ring CFG504SA NOTE: for any time below 15 minutes, turn knob past 15 minutes, then back to required time setting CFG504SA... - Page 7 using the gas cooker gas hotplate lighting gas hotplate, grill and oven Ensure burner caps, crowns and trivets are properly assembled. Hotplate Ignition – (Electronic) For wok ONLY use the trivet and burner dedicated for Turn appropriate Burner Control Knob onto maximum and wok cooking.
-
Page 8: Using The Electric Cooker
using the electric cooker electric features and descriptions 4. Grill/Oven Indicator Light(s) – Comes on when grill/ oven temperature knob is operated. Oven indicator light Grill in Oven Models cycles on and off when temperature is reached 5. Timer 60 Minute – (where fitted) sets reminder time. – When timer returns to zero, timer gives a short ring. NOTE: For any time below 15 minutes, turn knob past 15 minutes, then back to required time setting. - Page 9 using the electric cooker electric oven fan forced baking In a fan forced electric oven the heat comes from the rear oven element. Hot air is distributed by a fan behind the rear wall of the compartment, providing an even temperature on all shelf levels.
-
Page 10: Using The Grill
• The front frame around the oven can be cleaned with will crack and craze the oven liner stainless steel cleaners if it comes soiled or discoloured • U se ovenproof cookware, which will withstand • A suitable cleaner can be purchased from Electrolux temperatures of 250°C Customer Care Centres • D O NOT use baking trays larger than 30 x 35cm (12 x 14 inches) as they will restrict the circulation of the • Make sure you follow the polish or brushing lines in the steel... -
Page 11: Cleaning The Cooker
cleaning the cooker Oven Solid Hotplates • S olid hotplates are fitted with stainless steel trim rings, • Do not remove the oven door WARNING which after initial use, change colour to light brown. • Make sure oven knobs are in the off position This is a normal characteristic of stainless steel and will not affect the operation or performance of your hotplates • C lean immediately after use as a warm oven is easier to clean • C lean off any spillage after hot plate has cooled down • U se detergent, hot water (and household ammonia/... - Page 12 general hints and tips Cleaning the Oven Door • Using both hands, gently remove the inner glass by sliding out and lifting away from the door Cool air circulates through the door to lower the surface temperature on the outside of the oven door. •...
-
Page 13: Getting To Know Your Oven
getting to know your oven getting to know your new oven with this Method: ‘simple test cake’ 1. Butter base and sides of two, 20cm straight-sided round When baking, it is possible that there will be some variation or square cake pans. Then line the base with grease in colour. Therefore, we suggest to make this simple, easy proof paper or baking paper and delicious test cake to help you understand your new oven. -
Page 14: Oven Guide
oven guide The following is intended as a guide and experience may show some slight variation in order to meet individual requirements. Where the gas models vary from the electric models, details for gas cooking is shown in brackets. For best results when baking, preheat your oven for 30 minutes. food conventional oven fan forced oven time in minutes Temperature Oven shelf position* Temperature Oven shelf position*... -
Page 15: Trouble Shooting
trouble shooting Problem causes What to do Uneven cooking Incorrect shelf position Select shelf that puts food in centre of oven Oven tray too large Try other trays or dishes Trays not in centre Put trays in centre Air flow in oven uneven Rotate food during cooking Grill tray affecting thermostat Remove grill tray from oven on bake modes... - Page 16 trouble shooting If you have a problem with your appliance check the following before you ring the service line. Problem What to do Operational problems Check the electricity is turned on Check your fuses. If the fuse continues to blow, call the Service Centre ie: Oven, grill or hob not working Check the circuit breaker Ensure correct knob is turned...
-
Page 17: Installation
installation location The appliance has been designed to fit in a 550mm wide gap in kitchen cabinets or free space either side. Make sure the top of the cooker is at least 10mm higher than the level of the bench top. Splash back must be fitted to the rear using two screws provided stabilising bolt Stability... - Page 18 installation Procedure to remove the door (to be done by qualified personnel only) Stirrup 1. With door fully open, rotate the two stirrups 4. lift the door slightly and evenly while continuing to its rest position (to engage the stirrups). to slowly close the door. 2. close the door until it stops against the stirrups. 5.
- Page 19 installation Procedure to assemble the door Procedure to assemble the door (to be done by qualified personnel on (to be done by qualified personnel only) Frame slot Hinge Frame slot Notch Hinge Notch Notch 4. open door fully and rotate stirrups away from you back to their original position. 3.
- Page 20 installation electric wiring requirements Hard wiring The cooker MUST be installed in compliance with 1. Remove rear panel • Wiring connections in AS/NZS3000 Wiring Rules 2. Fit wires through hole at bottom centre using the appropriate gland to protect insulation of wires from the hole edge. Note • L ocal regulations, municipal building codes and other that the secondary insulation of the wires will probably need statutory regulations...
- Page 21 installation Gas requirements This appliance must be installed by an authorised person, according to all codes and regulations of: • A S/NZS 5601.1 (particular attention to clause 6.10.1 and figure 6.3 on page 97, and clause 6.10.1.11) • L ocal gas fitting regulations, municipal building codes and other statutory regulations. The cookers come in three gas types: Natural gas, Propane and Universal LPG. If the cooker is required to use ULPG, a conversion kit can be obtained by contacting the Customer Care Centre for details. Before installation, check that the cooker is suitable for the gas supply by looking at the data plate behind the bottom of the oven door.
-
Page 22: Gas Connection
150mm 650mm installation NG Regulator Wiring connection for gas cooker operation on universal lPg/propane 1/2” BSP To allow for disconnection of the appliance after installation, 1. The appliance inlet fitting provided MUST be orientated Internal Thread the plug must be accessible after installation, or a functional switch so that the pressure nipple is accessible must be provided near the appliance in an accessible position. - Page 23 6. If not operating correctly, advise the customer to ring Electrolux service. Place a warning sign on cooker or checking regulator function if dangerous, disconnect cooker. With the appliance operating, check the outlet pressure: 1.
- Page 24 notes 24 NOTES Chef 540 Upright Cooker...
- Page 25 notes Chef 540 Upright Cooker NOTES 25...
- Page 26 notes 26 NOTES Chef 540 Upright Cooker...
-
Page 27: Warranty
Appliances or services to which the warranty relates. 3. During the Warranty Period Electrolux or its ASC will, at no extra charge if your Appliance is readily accessible for service, without special 11. - Page 28 ........www.chefappliances.com.au top service Top Service encompasses the after sales service provided by The Electrolux Group to consumers including delivery, home service and spare parts. chef. We are part of the electrolux family. share more of our thinking at www.electrolux.com Part No.
