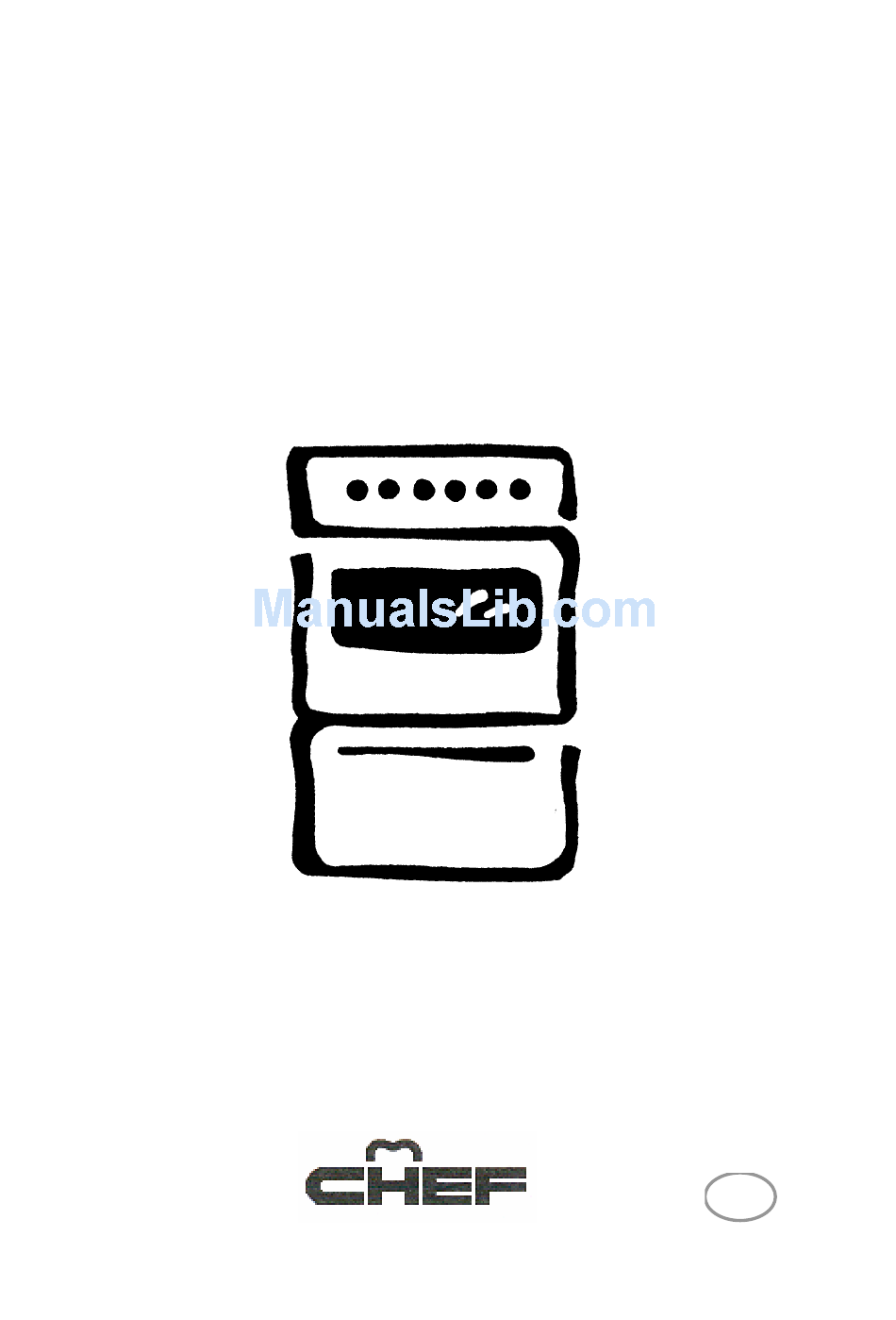

- Page 1 Electric cooker INSTRUCTION BOOK CKE5065W...
-
Page 3: Important Safety Information
Important Safety Information These warnings are provided in the interest of safety. You MUST read them carefully before installing or using the appliance. Keep this instruction book for future reference and ensure it is passed on to any new owner. Installation Child Safety •... - Page 4 Contact the of electric shock. nearest Electrolux service • Never use plastic dishes in the Centre and use only original oven or on the hob hotplates.
-
Page 5: Environmental Information
• This cooker should only waste disposal service or the shop repaired serviced where you purchased the product. authorised Electrolux Service Engineer only genuine approved spare parts should be used. Environmental Information • After installation, please dispose of the packaging with due regard to safety and the environment. -
Page 6: Table Of Contents
Oven Cooking Chart Roasting/Grilling Chart Electric Hotplates Maintenance and Cleaning Oven bulb replacement Something Not Working Electrolux Warranty Guide to Use the Instructions The symbols below will guide you when reading the instruction book Safety instructions Step by Step Operation... -
Page 7: Instructions For The Installer
Instructions for the Installer Technical features Dimensions Height 900 mm Width 500 mm Depth 600 mm Oven Capacity 45 l Front left Hob element Ø 180 mm 2090 W Back left Hob element Ø 145 mm 1050 W Front right Hob element Ø... -
Page 8: Location
Location Qualified tradespersons must carry out installation work on the cooker. The cooker is heavy. Certain edges and corners, which will not normally be exposed, may be sharp. USE GLOVES when moving the cooker. Before installing the cooker, you should check that its dimensions correspond to the rest of your kitchen units. -
Page 9: The Safety Equipment
The safety equipment Leveling the cooker The appliance is provided with adjustable small feet placed in the back and front corners of the base. Never pull the appliance by the oven handle. By adjusting the small feet it is possible to change the height of the appliance so as to ensure a better leveling with other surfaces and a uniform distribution of the liquids... - Page 10 Draw a line on the wall – after leveling the cooker – along the top edge of the hob (see illustration). The measurements shown can be applied when the non-tip device is fitted on the left (see illustration). Measure and mark where the non-tip device is to be placed.
-
Page 11: Electrical Connections
Electrical connections The switch should be sited within Any electrical work required 2m of the cooker and be easily to install this cooker and the accessible at all times. supply cable should be carried out by a qualified licensed electrician, The switch must not interrupt the in accordance with the current yellow-green grounding cable. - Page 12 • How to proceed? Secure by means of cable clamp; • • Unscrew remove Make sure that the connection protective cover at the back of the to the terminal block is matching appliance; the supply system, see table • Connect the power cable to the no.1;...
-
Page 13: Instructions For The User
Instructions for the User Use and care A. Hob with electric plates B. Control panel C. Door handle D. Oven door Drawer Adjustable feet Control panel TEMPERATURE FUNCTION 1. Back left hotplate control knob 5. Oven thermostat 2. Front left hotplate control knob 6. -
Page 14: Use Of Appliance
Use of Appliance Before the First Use of the Oven Before the first use ensure To prevent discolouration, regularly that the room is well ventilated: wipe away condensation and also V.M.C. (Mechanic ventilation) or spillage from surfaces. opened window. Cookware Remove all packaging, both ovenproof cookware,... -
Page 15: Electric Oven
Electric Oven Oven Function Control Knob Oven switched off Grill The grill cannot be used at the same time as the oven. The oven door must be closed when grilling. Fan cooking – Heat is Bake transmitted to food by means of pre-heated air throughout a fan located on the back wall of the oven. -
Page 16: Hints And Tips
Caution Do not place pans, dripping pans, baking trays or aluminium foil directly on the base of the oven. This could cause a heat build-up, which could affect the performance of the oven and damage the oven enamel. Hints and Tips There should always be at least 2.5cm between the top of the food and the element. -
Page 17: Grilling
Grilling When grilling, the accessible Preheat the grill on a full setting for parts of the appliance are hot and a few minutes before sealing steaks the appliance should not be left or toasting. Adjust the heat setting unattended. Take care that children and the shelf as necessary, during cooking. -
Page 18: Defrosting
How to use Defrosting Faster Preheating - Turn the oven function control As the fan oven quickly reaches knob to the required cooking temperature, usually function « Defrost ». necessary preheat oven It is not possible to adjust the although you may find that you need temperature. -
Page 19: Oven Cooking Chart
Oven Cooking Chart The data in the chart bellow are informative. Only experience will enable you to determine the correct setting for your personal requirements. Shelf Fan bake Pre- Cooking Type of Cake position time heating Temp. or Pastry from the °C bottom 10-13... -
Page 20: Roasting Chart
Shelf Fan bake Pre- Cooking Type of Cake position time heating Temp. or Pastry from the °C bottom 10-13 ---- 55-60 Apple pie ---- 165-175 50-55 ---- ---- 50-55 Drip pan cake ---- 145-155 50-55 15-20 Peasant bread ---- 40-60 15-20 ---- 20-40... -
Page 21: Electric Hotplates
Electric Hotplates To switch on a hotplate, turn the relevant control knob to the required heat setting. The control knob is numbered 0 – 6 0 – OFF 1 – Minimum 6 – Maximum. The hob has two types of hotplates: Normal Hotplates recommend plates... - Page 22 To keep food warm Very Gentle To melt butter and chocolate To prepare cream-sauces, stews and milk Gentle puddings or to fry eggs Dried vegetables, frozen food, fruit, boiling water Slow or milk Boiled potatoes, fresh vegetables, pâtés, soups, Medium broths, pancakes or fish Larger stews, meat roll, fish, omelettes, steaks High...
-
Page 23: Accessories Delivered With The Appliance
Take care when frying food in hot oil or fat, as the overheated splashes could easily ignite. If the control knobs become difficult to turn, please contact your local Electrolux Authorised Service Centre. Accessories delivered with the appliance The following accessories are supplied with your appliance. - Page 24 Removable drawer The removable drawer is located underneath the oven cavity. During cooking the drawer may become hot if the oven is in use for a long period of time. Flammable materials such as oven gloves, tea towels, plastic aprons, aerosols etc.
-
Page 25: Maintenance And Cleaning
Cleaners that contain bleach Contact your local Electrolux should NOT be used as they may Service Centre who will be pleased dull the surface finishes. A steam to advise further. cleaner is not to be used. Harsh Oven Cavity abrasives should also be avoided. -
Page 26: Cleaning The Oven Door
Cleaning the Oven Door Removing oven door from its hinges To make it easier to clean the oven, the oven door can be removed. Open the oven door into the horizontal position. Then lift up the clips on the two door hinges as far as they will go (a). - Page 27 Oven Shelves and Shelf support 1. Unscrew the fixing screws (A) then take the side racks from the oven out. Wash the racks and shelves by hand or in a dishwasher. If very soiled, soak them first, before cleaning with a steel wool pad. 2.
-
Page 28: Oven Bulb Replacement
Oven Bulb Replacement Ensure that the appliance is switched off and disconnected from the electricity supply before replacing the bulb to avoid possibility of an electric shock. If the oven bulb needs replacing, it must comply with the following specifications: Wattage: Voltage: 240V (50Hz) -
Page 29: Something Not Working
Something not working If the appliance is not working correctly, please carry out the following checks, before contacting your local Authorized Service Centre. IMPORTANT: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee. - Page 30 If after these checks, the appliance still does not operate correctly, contact your local Authorized Service Centre. When you contact the Authorized Service Centre you will need to give the following details: 1. Your name, address and postcode. 2. Your telephone number 3.
- Page 31 The Appliance was serviced or repaired and workmanship for the Warranty Period. by anyone other than Electrolux or its 4. During the Warranty Period Electrolux or its Authorised Service Centres. Authorised Service Centre will, at no extra charge if your appliance is readily accessible...
-
Page 32: Important Notice
Electrolux shall not be liable for any loss or re-supplied; damage whether direct or indirect or and in the case of Appliances or services... - Page 36 342 726 371 –00-17.01.2007...
