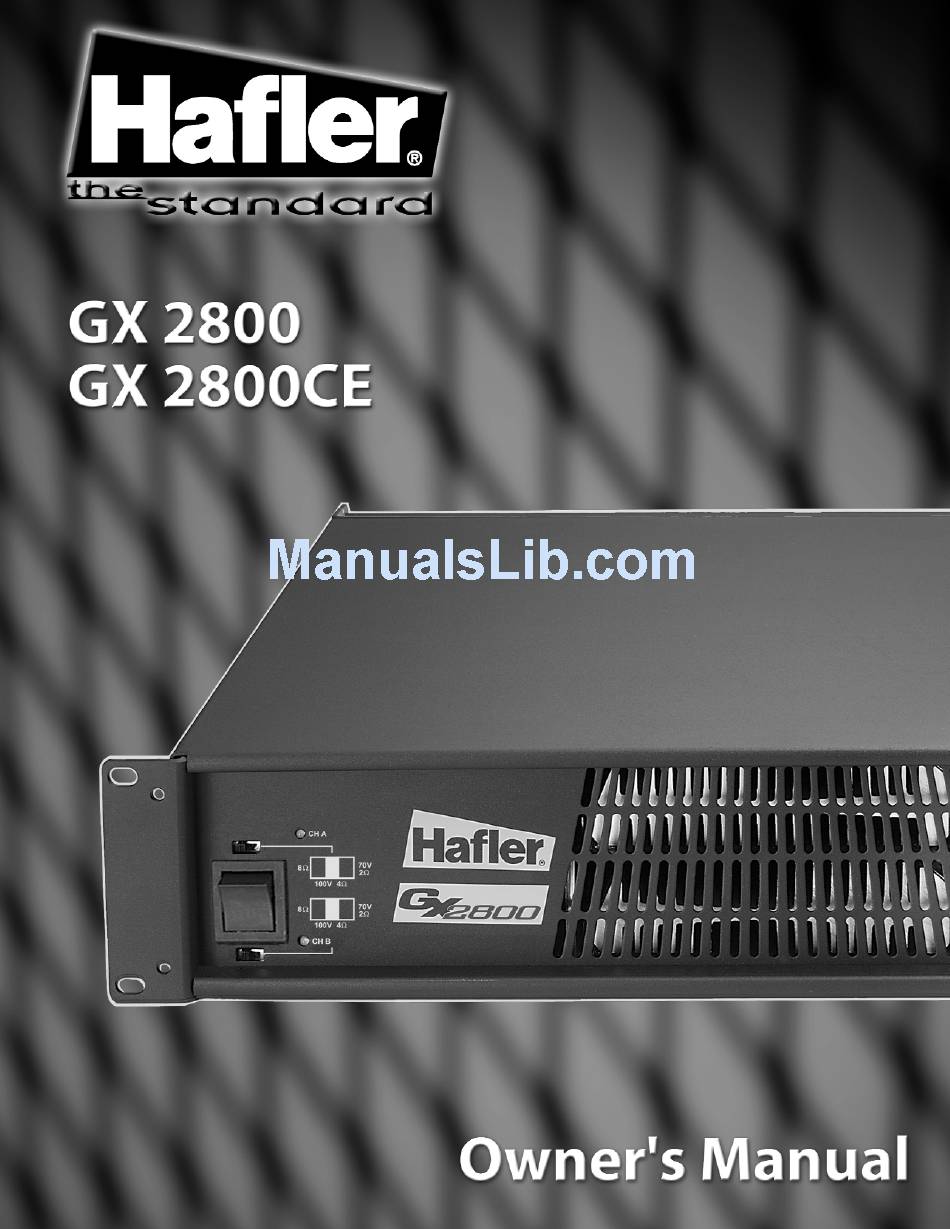

Hafler GX2800 Owner's Manual
  1. Manuals
  2. Brands
  3. Hafler Manuals
  4. Amplifier
  5. GX2800
  6. Owner's manual
Hafler GX2800 Owner's Manual

Hafler GX2800 Owner's Manual

2-channel audio power amplifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GX2800 and is the answer not in the manual?

Questions and answers

Related Manuals for Hafler GX2800

Summary of Contents for Hafler GX2800

  • Page 2: Declaration Of Conformity

    Type of Equipment: 2-channel Audio Power Amplifier Model No.: GX2800CE Serial Number: Year of Manufacturing: I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s) Place: Hafler Date: 5/1/2000 EN55103 -2 (Immunity) EN60065 2000 2001 2002 James C.

  • Page 3: Table Of Contents

    DESIGN FEATURES – GX2800 ........

  • Page 4: Safety Information

    NOTICE - IMPORTANT SAFETY INFORMATION 1. READ INSTRUCTIONS All the safety and operating instructions of your Hafler equip- ment should be read before power is applied to the equipment. 2. RETAIN OWNER'S MANUAL These safety and operating instructions should be retained for future reference.
  • Page 5 ADVERTENCIA – INFORMACION DE SEGURIDAD IMPORTANTE 1. LEA LAS INSTRUCCIONES Todas las instrucciones de seguidad y operación de su equipo Hafler, deben ser leídas antes de que el equipo sea conectado dléctricamente. 2. CONSERVE EL MANUAL DEL PROPIETARIO Estas instrucciones de seguridad y operación, deben ser con- servadas para futuras referencias.
  • Page 6 Achten Sie darauf, dab weder Fremdkörper, noch Flüssigkeiten in das Gerät eindringen. 14. ERFORDERLICHER REPARATURSERVICE Hafler Equipment sollte nur von qualifizierten Service- Technikern instand gesetzt werden, wenn: A. Das Stromversorgungskabel beschädigt wurde B. Eine Flüssigkeit in das Gerät eingedrimgem ist C.
  • Page 7 à éviter toute pénetration dans l'enceinte du matériel. 14. DÉGÂT NÉCESSITANT UNE RÉVISION Le matériel Hafler devrait être révisé par des personnes qual- ifées de service après-vente, lorsque: A. Les fiches ou la prise de courant ont été endommagé, ou: B.
  • Page 8 Si deve prestar attenzione che oggetti e liquidi, come fluidi detergenti e bibite, non vengano versati all'interno dell'apparato. 14. RIPARAZIONI Gli apparati Hafler devono essere riparati da personale qualifi- cato quando: A. Il cavo di alimentazione o la spina sono danneggiati B.

  • Page 9: Specifications

    Specifications All measurements taken at Normal Operating Conditions (i.e. 1/8th rated output power) unless noted otherwise. POWER OUTPUT: Stereo 8Ω 4Ω 2Ω Bridged 8Ω Bridged 4Ω Bridged 70V Bridged 100V FREQUENCY RESPONSE: ±0.1dB, 10Hz-20kHz ±3dB, 0.2Hz-100kHz INPUT SENSITIVITY: 8Ω 4Ω 2Ω...

  • Page 10: Introduction

    Introduction The Hafler GX2800 amplifiers are two rack height, two channel, fan-cooled professional power amplifiers suitable for use in the most demanding sound reinforcement and commercial sound installations. These amplifiers offer outstanding effi- ciency by means of three technologies: high-efficiency TRANS•nova Class-G circuitry, high-frequency switching power supplies, and constant power output/load impedance selection switches.

  • Page 11: Universal Line Voltage Input

    UNIVERSAL LINE VOLTAGE INPUT Voltage selection is provided in two bands: 100-140 volts and 200-265 volts, (both 50-60 Hz) via two quick-connect termi- nals located on the EMI filter board, accessed by removing the top cover. The current-mode control system automatically corrects for the bulk of power line variation with each band.

  • Page 12: Design Features - Gx2800

    Design Features – GX2800 1. Recessed Front Panel - Prevents switches and controls from accidentally being adjusted or broken. 2. Power Switch - Turns the amplifier ON and OFF 3. Power LEDs - Verifies that the amplifier channel is ON 4.

  • Page 13: Design Features - Gx2800Ce

    Design Features – GX2800CE 1. Recessed Front Panel - Prevents switches and controls from acci- dentally being adjusted or broken. 2. Power Switch - Turns the amplifier ON and OFF 3. Power LEDs - Verifies that the amplifier channel is ON 4.

  • Page 14: Installation

    Installation The GX2800 is a standard 2U (2 rack height) 19" rack-mount unit, with both front and rear rack mounting ears. In portable systems, the amplifier must be supported at both the front and rear. COOLING The GX2800 uses forced-air cooling (fan cooling) to remove the heat produced during normal operation. Free air flow at the mounting location is a critical factor in accomplishing long-term reliable operation of the amplifier.

  • Page 15: Audio Ground Chassis/Float Switch

    • The chassis is permanently conected to the earth (safety) ground pin of the Mains power connector. • The Audio Ground of each GX2800 is permanently connected to the black terminals of both output binding posts, to pin 1 of each XLR input, and to the sleeve of each 1/4" input.

  • Page 16: Operation

    INPUT The input jacks used on the GX2800 are dual function connectors which accept 1/4" TRS (Tip Ring Sleeve) or male XLR plugs. The amplifier will operate with either a balanced or unbalanced signal, from earth ground or floated source equip- ment.

  • Page 17: Floated Source Equipment

    FLOATED EQUIPMENT Units with a 2-pin mains power cord have no means to connect the audio output ground to earth ground, so usually the audio output ground is floated from earth ground. However, this does not insure that when installed in a system, the audio output ground will remain floated from earth ground.

  • Page 18: Phase

    Minimum gain position is marked as “Off” and represents over 100dB of attenuation relative to the maximum gain position. The CH B level control is used for all Bridged Mono configurations, and 100V and 70V modes (Except for GX2800 Dual 70V mode).each channel. See diagrams The Stereo/Biamp switch is defeated whenever the front panel Stereo/Mono switch is in the Mono position.

  • Page 19: Protect

    70V and 100V Mono mode also use the CH B input connector and level control only. The 70V or 100V speaker array load should be connected across the red terminals of the output connectors. Set both load switches to the appropriate 70V or 100V value.

  • Page 20: Wiring Diagrams

    Wiring Diagrams STEREO MODE 1. Connect signal from source to both CH A and CH B inputs. 2. Move Biamp/Stereo switch to Stereo input mode. 3. Move Stereo/Mono switch to Stereo mode. 4. Select desired speaker load (8Ω/4Ω/2Ω) for each channel –...

  • Page 21: Bridge Mono Mode

    BRIDGE MONO MODE 1. Connect signal from source to CH B input. 2. Biamp/Stereo switch not active-(Stereo/Mono switch overrides this switch when in mono/70V/100V mode). 3. Move Stereo/Mono switch to MONO mode. 4. Set load switches (8Ω/4Ω/2Ω) to 1/2 the actual load impedance.

  • Page 22: 100V Mono Mode

    100V MONO MODE 1. Connect signal from source to CH B input. 2. Biamp/Stereo switch not active (Stereo/Mono switch overrides this switch when in mono/70V/100V mode). 3. Move Stereo/Mono switch to 100V mode. 4. Select 100V load, both channels. 70V STEREO MODE 1.

  • Page 23: Service Policy And Limited Warranty

    Please call 1-800-669-9899 for Rockford/Hafler support. You must obtain an RA # (return authorization number) to return any products to Hafler. You are responsible for shipment of product to Hafler. Always include Proof of Purchase. Mark RA# on outside of shipping carton.
  • Page 24 A DIVISION OF ROCKFORD CORPORATION ® 546 SOUTH ROCKFORD DRIVE TEMPE, ARIZONA 85281 U.S.A. IN U.S.A. (480) 967-3565 / IN CANADA, (604) 942-1001 IN EUROPE, FAX 8503-9340-14 / IN JAPAN, FAX (81) 559-79-01265 MAN-3643-A 6/01 BM Printed in U.S.A.
