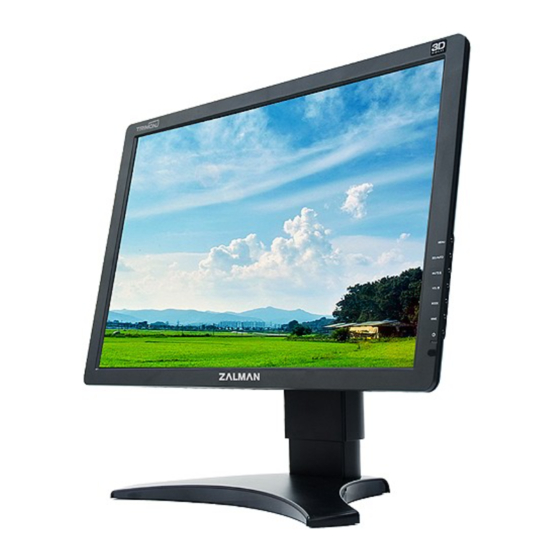

ZM-M220W User's Guide

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class
B digital device pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
with can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures :
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
-Only shielded interface cable should be used.
Finally, any changes or modifications to the equipment by the user not
expressly approved by the grantee or manufacturer could void the users
authority to operate such equipment.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZM-M220W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ZALMAN ZM-M220W

Summary of Contents for ZALMAN ZM-M220W

  • Page 1: Fcc Statement

    ZM-M220W User’s Guide FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 2: Table Of Contents

    • Contents 1. Warning & Cautions 2. Components 3. Connecting Monitor Cables 4. Function Keys 5. Display Specifications 6. Monitor Specifications 7. Monitor Elevation/Rotation/Swivel Functions 8. Troubleshooting (When using 2D & 3D Modes)

  • Page 3: Warning & Cautions

    1. Warning & Cautions 1-1. Warning - Inserting objects into the monitor’s vents or A/V outlet can result in fire or electrocution. - Do not disassemble, repair, or alter the product without the consent of the manufacturer. It could result in electrocution. - Do not pull on the cables to unplug the power cord or touch the power cord with wet hands.
  • Page 4 - Zalman Tech Co., Ltd. is not responsible for any damages due to external causes, including but not limited to, improper use, problems with electrical power, accident, neglect, alteration, repair, improper installation, or improper testing. - Using the monitor in 3D Mode for 1 whole hour or more (playing games, watching videos etc.) could cause dizziness.

  • Page 5: Components

    Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. Notice Please use the cables that are provided. Zalman does not take responsibility for any problems that arise from using any other cables.

  • Page 6: Connecting Monitor Cables

    3. Connecting Monitor Cables Input / Output Cable Type Power Power Cord 15-pin D-Sub Signal Cable DVI(Optional) DVI-D Cable *1(Optional) SPK IN Audio Cable *2 SPK OUT External Speaker Cable (not included) *2 *1 : For DVI Model Only *2 : For Audio Model Only...

  • Page 7: Function Keys

    4. Function Keys MENU Opens / Closes the OSD Main Menu SEL : Selects a command function. SEL / AUTO Auto : Optimizes image quality automatically. *1 1. Selects the previous control setting. MUTE / ▲ 2. Increases the current option value. MUTE : Sound Mute On/Off button.

  • Page 8: Picture Settings

    4-1 Picture Settings ● BRIGHTNESS : Changes the overall light intensity of the images being displayed. ● CONTRAST : Changes the ratio of light intensity between the brightest white and darkest black. ● H POSTION : Adjusts the horizontal position of the display. *1 ●...
  • Page 9 4-4 MISC Settings ● LANGUAGE : Selects the language for the OSD Menu. ● RECALL : Loads factory default settings. ● INPUT SELECT : Selects the display’s input. *1 ● AUDIO : Sets Audio function On / Off. *2 ●SCREEN SIZE : Sets the screen ratio to ‘16:10’ or ‘4:3’. *1 : For DVI Model Only.

  • Page 10: Display Specifications

    5. Display Specifications 5-1 Display Modes and Frequencies Sync Horizontal Vertical Pixel Mode Resolution Polarity Frequency(KHz) Frequency(Hz) Clock(MHz) (H/V) 720 X 400 31.468 70.087 28.322 31.468 59.940 25.175 640 X 480 35.000 66.670 30.240 37.500 75.000 31.500 37.879 60.300 40.000 SVGA 800 X 600 48.077...

  • Page 11: Monitor Specifications

    6. Monitor Specifications MODE Analog Digital 22Inch Wide (55.9cm) Horizontal : 31.5 ~ 80KHz Horizontal : 31 ~ 64KHz Frequency Vertical : 56 ~ 75Hz Vertical : 59 ~ 61Hz Resolution 1680x1050@60Hz (WSXGA+) Response time 5ms(TYP) Brightness 300cd/㎡ 3D View Angle 90°(L/R) / 10~12°(U/D) Contrast Ratio 1000 : 1...

  • Page 12: Monitor Elevation/Rotation/Swivel Functions

    7. Monitor Elevation/Rotation/Swivel Functions Tip : Please remove the screw on the back of the stand to use the functions above. ** The display can be rotated 90 degrees and operated with downloaded or graphic card manufacturer supplied display rotation software. A display rotation software is not included with the monitor.

  • Page 14: Troubleshooting

    8. Troubleshooting <Cautions> Opening the product may cause electrocution of the user or critical damage to the product. Product malfunction arising from external causes, including but not limited to improper use, problems with electrical power, accident, neglect, alteration, repair, improper installation, or improper testing will only be repaired with a service charge.
  • Page 15 8-2. In 3D Mode 1. Blurs and patterns are present when the screen is OFF. - This phenomenon is the result of the interference of outer light present on the air layer between the LCD screen and the 3D filter. The intensity of this pattern is very weak, which makes it unnoticeable when the LCD screen is ON so the monitor can be used without any inconvenience.
  • Page 16 3. If the image is seen in 2D and not 3D - This monitor is a 2D/3D Convertible Monitor. Media that was produced in 2D can only be viewed in 2D, and only media created in 3D can be viewed in 3D. 4.
