LightwaveRF
connect

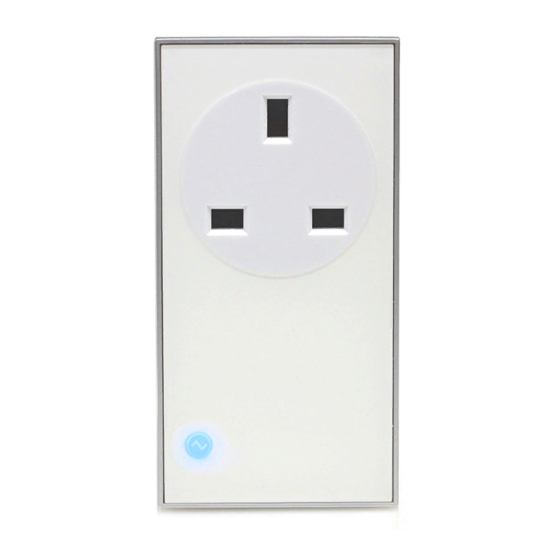

Plug-In Adapter (Dimmer) Socket
Operation Manual
Model No: JSJS LW300/301
It is important to install this product in accordance
with the tting instructions below. Failure to do so
may render your guarantee void.
IMPORTANT: PLEASE RETAIN THESE INSTRUCTIONS
FOR FUTURE REFERENCE AND FOR GUIDANCE ON
THE ASSOCIATION OF REMOTE HANDSETS. FOR
HELP AND SETUP GUIDANCE PLEASE VISIT
www.lightwaverf.com
OVERVIEW:
Manual
Blue/
Amber LED
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LightwaveRF JSJS LW300
Summary of Contents for LightwaveRF JSJS LW300
- Page 1 LightwaveRF connect Plug-In Adapter (Dimmer) Socket Operation Manual Model No: JSJS LW300/301 It is important to install this product in accordance with the tting instructions below. Failure to do so may render your guarantee void. IMPORTANT: PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE AND FOR GUIDANCE ON THE ASSOCIATION OF REMOTE HANDSETS.
- Page 2 NOTE: If the RF range between the transmitter and receiver is too great to achieve reliable operation, the LightwaveRF Connect SIGNAL BOOSTER may be used in conjunction with this product to increase the signal strength over greater distances. Pairing using LEARNING MODE: 1.
- Page 3 Learning mode illustrated by the LED ashing blue and amber alternately. 3. Using a LightwaveRF Connect Remote, press one of the ‘ON’ buttons; the LED on the adaptor will ash blue to con rm that the remote is now paired.
- Page 4 NOTE: Learning Mode lasts for 6 seconds; if no signal is received from a remote handset during this time then the adaptor will automatically exit learning mode without pairing the device. If, when expecting a blue LED ash to con rm pairing, an amber ash is received instead, then the adaptor memory is FULL and no further remotes may be paired with it unless one of the existing remotes is rst...
- Page 5 3. Using a LightwaveRF Connect Remote, press corresponding ‘OFF’ button; the LED on the adaptor will ash amber to con rm that the remote is now unpaired. Clearing Memory (will remove all paired remotes): 1. Ensure the adaptor is plugged in and ready with the wall socket turned on.
- Page 6 3. On the adaptor, press and hold down the ‘MANUAL’ button again until the LED ashes, then press (don’t hold) the ‘MANUAL’ button a further time; the LED will ash amber to con rm that the memory has been cleared. NOTE: Learning Mode lasts for 6 seconds;...
- Page 7 Dimming control with remote handset Lowering Dim Level 1. Make sure the light is switched on. 2. Hold down the ‘OFF’ button. 3. After 1 second the light will start to dim. 4. At the desired brightness level release the ‘OFF’ button.
- Page 8 3. After 1 second the light will start to become brighter. 4. At the desired brightness release the ‘ON’ button. NOTE: If the ‘ON’ button is not released, the light level will increase until it stops at the maximum possible level of brightness.
