PELONIS
U L
®
PLEASE READ AND SAVE THESE INSTRUCTIONS
OWNER'S MANUAL
Safe-T
FURNACE

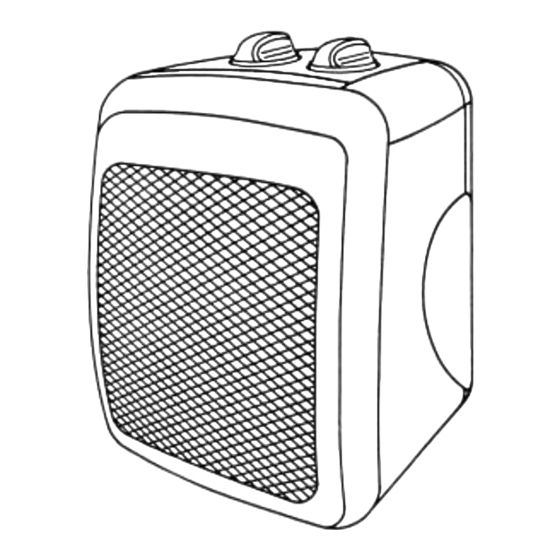

Ceramic Heater
Model HC-445
IMPORTANT INSTRUCTIONS
PLEASE READ AND SAVE THESE IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances, basic precautions should always be followed to reduce the
risk of fire, electric shock, and injury to persons, including the following:
1.
Read all instructions before using this heater.
2.
This heater is hot when in use. To avoid burns, do not let bare skin touch hot
surfaces. If provided, use handles when moving this heater. Keep combustible
materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least
3 feet (0.9m) from the front of the heater and keep them away from the sides and
rear.
3.
Extreme caution is necessary when any heater is used by or near children or
invalids and whenever the heater is left operating and unattended.
4.
Always unplug heater when not in use.
5.
Do not operate any heater with a damaged cord or plug or after the heater
malfunctions, has been dropped or damaged in any manner. Return heater to
authorized service facility for examination, electrical or mechanical adjustment, or
repair.
6.
Do not use outdoors.
7.
This heater is not intended for use in bathrooms, laundry areas and similar indoor
locations. Never locate heater where it may fall into bathtub or other water
container.
8.
Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or
similar coverings. Arrange cord away from traffic area and where it will not be
tripped over.
9.
To disconnect heater, first turn controls to off, then remove plug from outlet.
10. Do not insert or allow foreign objects to enter any ventilation or exhaust opening
as this may cause an electric shock or fire, or damage the heater.
11. To prevent a possible fire, do not block air intakes or exhaust in any manner. Do
not use on soft surfaces, like a bed, where openings may become blocked.
12. A heater has hot and arcing or sparking parts inside. Do not use it in the areas
where gasoline, paint, or flammable liquids are used or stored.
13. Use this heater only as described in this manual. Any other use not recommended
by the manufacturer may cause fire, electric shock, or injury to persons.
14. Avoid the use of an extension cord because the extension cord may overheat and
cause a risk of fire. However, if you have to use an extension cord, the cord shall
be No. 14 AWG minimum size and rated not less than 1875 watts.
15. This heater draws 12.5 amps during operation. To prevent overloading a circuit, do
not plug the heater into a circuit that already has other appliances working.
16. It is normal for the plug to feel warm to the touch; however, a loose fit between the
AC outlet (receptacle) and plug may cause overheating and distortion of the plug.
Contact a qualified electrician to replace loose or worn outlet.
17. The output of this heater may vary and its temperature may become intense
enough to burn exposed skin. Use of this heater is not recommended for persons
with reduced sensitivity to heat or an inability to react to avoid burns.
"SAVE THESE INSTRUCTIONS"
18.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Safe-T FURNACE HC-445 and is the answer not in the manual?

Questions and answers

Summary of Contents for Pelonis Safe-T FURNACE HC-445

  • Page 1 14. Avoid the use of an extension cord because the extension cord may overheat and cause a risk of fire. However, if you have to use an extension cord, the cord shall Model HC-445 be No. 14 AWG minimum size and rated not less than 1875 watts.
  • Page 2: Additional Features

    HIGH: The Fan and heating elements operate at 1500 Watts. SPECIFICATIONS Turn the Thermostat Control “B” to your desired setting from “MIN” to “MAX”. Model No.: HC-445 Voltage: 120V, 60Hz CAUTION: This heater includes a Thermal Cut-Off Overheat Protection System that Current: Maximum continuous draw: 12.5 Amps.
  • Page 3: Service And Support

    PROOF OF PURCHASE, Pelonis USA, Ltd. within the warranty period of one (1) year, to Pelonis USA. Pelonis USA reserves the Att: Consumer Relations Department right to inspect the claimed defective part or parts to determine if the defect or P.O.
  • Page 4: Manual Del Usuario

    15. Este calentador consume 12.5 amperes durante su funcionamiento. Para prevenir sobrecargar un circuito, no enchufe el calentador en un circuito que ya tenga otros electrodomésticos en Modelo HC-445 funcionamiento. 16. Es normal que el enchufe esté tibio al tacto; sin embargo, un encaje flojo entre el tomacorriente AC (receptáculo) y el enchufe pueden causar sobrecalentamiento y distorsión del enchufe.
  • Page 5: Instrucciones De Funcionamiento

    ESPECIFICACIONES están en la posición “OFF”. LOW: El Ventilador y los elementos de calefacción funcionan a 500 Vatios. Modelo Nº: HC-445 HIGH: El Ventilador y los elementos de calefacción funcionan a 1500 Vatios. Voltaje: 120V, 60Hz Corriente: Consumo continuo máximo: 12.5 Amperes.
  • Page 6: Servicio Y Soporte

    PRUEBA DE A: Consumer Relations Department COMPRA, dentro del período de la garantía de un (1) año, a Pelonis USA. Pelonis USA se reserva P.O. Box 785 el derecho de inspeccionar la parte o partes supuestamente defectuosas para determinar si el Malvern, PA 19355 EE.UU.
