INSTALLATION AND OPERATION MAINTENANCE
60BP6BG24S30S20, 60BP6BRG24S26, 60BP6BRG24S30S20
All equipments manufactured by Bakers Pride Oven Co. Inc. for use with the type of gas specified on
the rating plate and for installation will be in accordance with National Fuel Gas Code ANSI Z223.1
(latest edition)
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors or
liquids in the vicinity of this or any other appliance.
WARNING: Improper installation, adjustment, alteration, service or maintenance
can cause property damage, injury or death. Read the installation, operating and
maintenance instructions thoroughly before installing or servicing this equipment.
Instructions to be followed in the event the user smells gas must be posted in a prominent location in
the kitchen area. This information shall be obtained from the local gas supplier.
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCES.
(714) 424-9380 Phone
(714) 424-9385 Fax

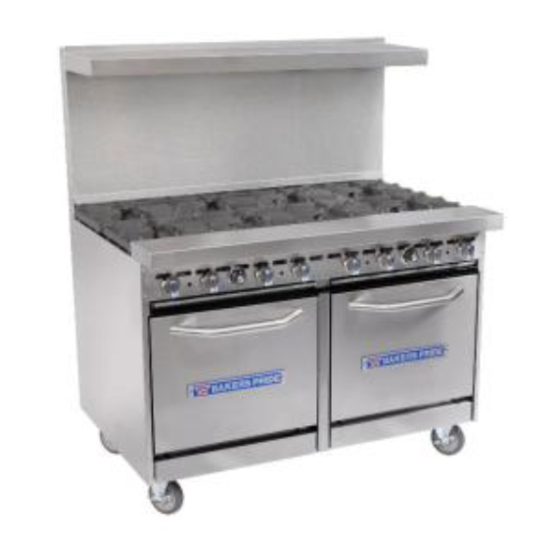

BP SERIES – RANGE
OWNER'S MANUAL
24BP4BS20, 36BP6BS30, 48BP8BS20
60BP10BS26, 60BP10BS30S20, 60BP6BG24S26
65BP10BS30, 72BP12BS30
BAKERS PRIDE OVEN CO. INC.,
2205 South Standard Avenue
Santa Ana, CA 92707
Models:
1
P/N 312644 03/11
www.bakerspride.com Web address
Advertisement
Table of Contents
Related Manuals for Bakers Pride 24BP4BS20
Summary of Contents for Bakers Pride 24BP4BS20
- Page 1 60BP6BG24S30S20, 60BP6BRG24S26, 60BP6BRG24S30S20 65BP10BS30, 72BP12BS30 All equipments manufactured by Bakers Pride Oven Co. Inc. for use with the type of gas specified on the rating plate and for installation will be in accordance with National Fuel Gas Code ANSI Z223.1...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Installation Instructions ..........................2 Operating Instructions..........................3 Maintenance Instructions ..........................3 Cleaning and Maintenance ........................7 Exploded View – Griddles – BP ........................9 Parts List – Griddles – BP........................10 Exploded View – Raised Griddles – BP ....................12 Parts List – Raised Griddles – BP......................13 Warranty ..............................14 INSTALLATION INSTRUCTIONS •... -
Page 3: Operating Instructions
When communicating with factory about a unit or requesting for special parts or information, rating plate data is essential for proper identification. BAKERS PRIDE COOKING APPLIANCES MUST BE CONNECTED ONLY TO THE TYPE OF GAS IDENTIFIED ON THE RATING PLATE CLEARANCES The appliance area must be kept free and clear of all combustibles. - Page 4 The gas supply (service) line must be the same size or greater than the inlet line of the appliance. Bakers Pride ranges and ovens use a ¾" NPT inlet. Sealant on all pipe joints must be resistive to LP gas.
- Page 5 Bakers Pride to sea level conditions. Adjustments and calibrations to assure proper operation may be necessary on installation to meet local conditions, low gas characteristics; correct possible problems caused by rough handling or vibration during shipment and are to be performed only by qualified service personnel.
- Page 6 Oven pilot lighting or relighting is to be completed as follows: • Turn the thermostat knob to "OFF" position and wait for 5 minutes. • Open the oven’s lower kick plate by lifting up and out. This exposes the pilot valve and the igniter button.
-
Page 7: Cleaning And Maintenance
Any equipment works better and lasts longer when maintained properly. Cooking equipment is no exception. Your Bakers Pride range and Oven must be kept clean on a daily basis. CAUTION: Never use Ammonia in an oven that is warmer than room temperature... - Page 8 Use lubricating oil. Ensure your Bakers Pride range be checked by a qualified technician once a year for efficient operation of the appliance. STAINLESS STEEL All stainless steel body parts should be wiped regularly with hot soapy water during the day and with a liquid cleaner designed for this material at the end of each day.
-
Page 9: Exploded View - Griddles - Bp
BAKERS PRIDE – RANGE SERIES... -
Page 10: Parts List - Griddles - Bp
PLUG 311027 VALVE PILOT 370142 FITTING STRAIGHT – ¼ NPT X 3/8 CC 314818 COVER, VALVE 24" RANGE BAKERS PRIDE 314117 COVER, VALVE 36" RANGE BAKERS PRIDE 316011 COVER, VALVE 48" RANGE BAKERS PRIDE 312643 COVER, VALVE 60" RANGE BAKERS PRIDE... - Page 11 315716 FRONT SHEET 60" HI-SHELF w/ RAISED GRIDDLE 311813 FRONT SHEET 72" HI-SHELF 314816 SHELF TOP 24" RANGE BAKERS PRIDE 314114 SHELF TOP 36" RANGE BAKERS PRIDE 316013 SHELF TOP 48" RANGE BAKERS PRIDE 312647 SHELF TOP 60" RANGE BAKERS PRIDE 316211 SHELF TOP 72"...
-
Page 12: Exploded View - Raised Griddles - Bp
RAISED GRIDDLE & FLAT GRIDDLE BAKERS PRIDE – RANGE SERIES... -
Page 13: Parts List - Raised Griddles - Bp
RAISED GRIDDLE & FLAT GRIDDLE BAKERS PRIDE – RANGE SERIES Item Part # Description Item Part # Description 310476 12" RAISED GRIDDLE PLATE 1" 316410 24" RAISED GRIDDLE PLATE 1" VALVE COVER CONTACT FACTORY 312307 36" RAISED GRIDDLE PLATE 1"... -
Page 14: Warranty
BAKERS PRIDE Factory Authorized Service Center. This Warranty is in lieu of all other warranties, expressed or implied, and all other obligations or liabilities on the manufacturer’s part. BAKERS PRIDE shall in no event be liable for any special, indirect or consequential damages, or in any event for damages in excess of the purchase price of the unit. The repair or replacement of proven defective parts shall constitute a fulfillment of all obligations under the terms of this warranty. - Page 15 BAKERS PRIDE OVEN CO. INC 2205 S. Standard Avenue Santa Ana, CA 92707 (714) 424-9380 Phone (714) 424-9385 Fax www.bakerspride.com Web Address...
