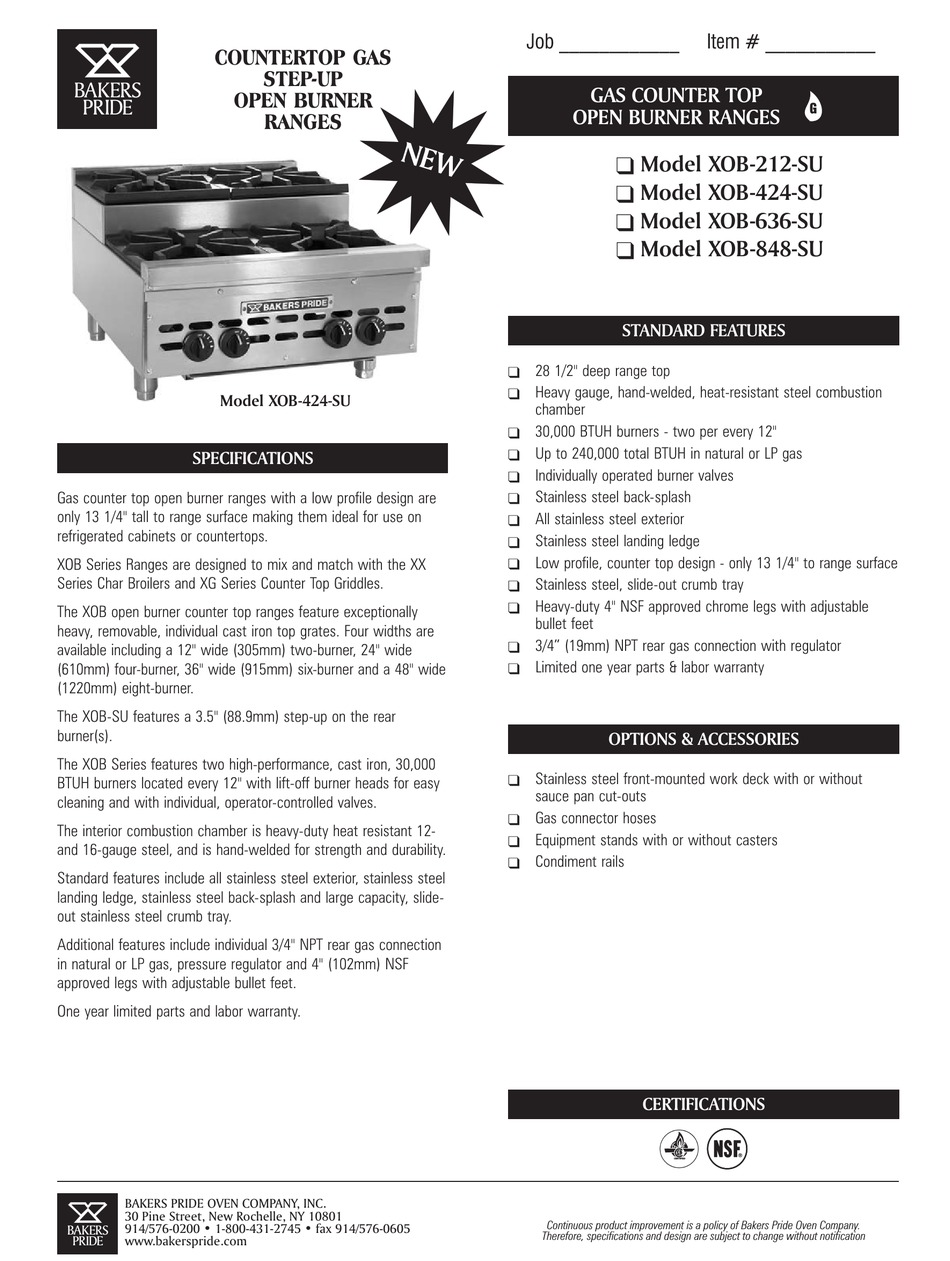

Bakers Pride XOB-212-SU Specifications

COUNTERTOP GAS
BAKERS

OPEN BURNER

PRIDE
Model XOB-424-SU
SPECIFICATIONS
Gas counter top open burner ranges with a low profile design are
only 13 1/4" tall to range surface making them ideal for use on
refrigerated cabinets or countertops.
XOB Series Ranges are designed to mix and match with the XX
Series Char Broilers and XG Series Counter Top Griddles.
The XOB open burner counter top ranges feature exceptionally
heavy, removable, individual cast iron top grates. Four widths are
available including a 12" wide (305mm) two-burner, 24" wide
(610mm) four-burner, 36" wide (915mm) six-burner and a 48" wide
(1220mm) eight-burner.
The XOB-SU features a 3.5" (88.9mm) step-up on the rear
burner(s).
The XOB Series features two high-performance, cast iron, 30,000
BTUH burners located every 12" with lift-off burner heads for easy
cleaning and with individual, operator-controlled valves.
The interior combustion chamber is heavy-duty heat resistant 12-
and 16-gauge steel, and is hand-welded for strength and durability.
Standard features include all stainless steel exterior, stainless steel
landing ledge, stainless steel back-splash and large capacity, slide-
out stainless steel crumb tray.
Additional features include individual 3/4" NPT rear gas connection
in natural or LP gas, pressure regulator and 4" (102mm) NSF
approved legs with adjustable bullet feet.
One year limited parts and labor warranty.
BAKERS PRIDE OVEN COMPANY, INC.
30 Pine Street, New Rochelle, NY 10801
914/576-0200 • 1-800-431-2745 • fax 914/576-0605
BAKERS
PRIDE www.bakerspride.com
STEP-UP
RANGES
Job ____________
GAS COUNTER TOP
OPEN BURNER RANGES
q
Model XOB-212-SU
q
Model XOB-424-SU
q
Model XOB-636-SU
q
Model XOB-848-SU
STANDARD FEATURES
q 28 1/2" deep range top
Heavy gauge, hand-welded, heat-resistant steel combustion
q
chamber
q 30,000 BTUH burners - two per every 12"
Up to 240,000 total BTUH in natural or LP gas
q
q Individually operated burner valves
q Stainless steel back-splash
All stainless steel exterior
q
q Stainless steel landing ledge
q Low profile, counter top design - only 13 1/4" to range surface
Stainless steel, slide-out crumb tray
q
q Heavy-duty 4" NSF approved chrome legs with
bullet feet
3/4" (19mm) NPT rear gas connection with regulator
q
q Limited one year parts & labor warranty
OPTIONS & ACCESSORIES
Stainless steel front-mounted work deck with or without
q
sauce pan cut-outs
q Gas connector hoses
q Equipment stands with or without casters
Condiment rails
q
CERTIFICATIONS
CERTIFIED
Continuous product improvement is a policy of Bakers Pride Oven Company.
Therefore, specifications and design are subject to change without notification
Item # ___________
G
adjustable
®
