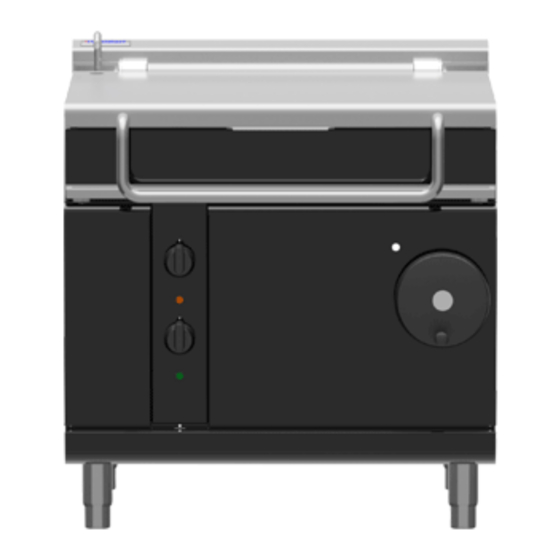

- Page 1 I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l Electric Bratt Pan BP8080E BPL8080E BP8080EE BPL8080EE BP8120E BPL8120E BP8120EE...
- Page 2 MANUFACTURED BY Moffat Limited PO Box 10001 Christchurch New Zealand (03) 389 1007 Fax: (03) 389 1276 WORLD-WIDE BRANCHES UNITED KINGDOM Blue Seal Unit 67, Gravelly Business Park Gravelly Park Birmingham West Midlands B24 8TQ (121) 327 5575 Fax: (121) 327 9711 UNITED STATES Moffat Inc 3765 Champion Blvd...
-
Page 3: Table Of Contents
Contents Waldorf Electric Bratt Pan BP(L)8080E Bratt Pan Manual Tilt, (80 ltr) BP(L)8080EE Bratt Pan Electric Tilt, (80 ltr) BP(L)8120E Bratt Pan Manual Tilt, (120 ltr) BP(L)8120EE Bratt Pan Electric Tilt, (120 ltr) Introduction ....................2 Specifications ....................3 Model Numbers Covered in this Specification... -
Page 4: Introduction
Introduction We are confident that you will be delighted with your WALDORF ELECTRIC BRATT PAN, and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new WALDORF Appliance, there are two important things you can do. -
Page 5: Specifications
IT MUST BE REPLACED BY A SUITABLY QUALIFIED PERSON IN ORDER TO AVOID A HAZARD When connecting a Waldorf electric appliance to the main supply, ensure that the following is carried out:- • An isolating switch is fitted within 2 m of the appliance, but not on the appliance and in such a position that the user does not have to reach across the cooking surface. -
Page 6: Water Supply Requirements
Specifications Electrical supply connection point is located at the rear of the appliance, approximately 87 mm from the left hand side, 557 mm from the rear and 335 mm (290 mm for BP8120E/EE) from the floor. Water Supply Requirements Cold water connection is "... - Page 7 Specifications Dimensions BP(L)8080E Model Only...
- Page 8 Specifications Dimensions BP(L)8080EE Model Only...
- Page 9 Specifications Dimensions BP(L)8120E Model Only...
- Page 10 Specifications Dimensions BP(L)8120EE Model Only...
-
Page 11: Installation
Waldorf Bratt Pans are designed to provide years of satisfactory service and correct installation is essential to achieve the best performance, efficiency and trouble-free operation. -
Page 12: Assembly
Refer to the appropriate wiring standards for the size of cable that is to be used for the current drawn on that line. Rating Plate When connecting a Waldorf electric appliance to the main supply, Location ensure that the following is carried out:- •... -
Page 13: Water Connection
Installation NOTE: • This appliance must be grounded / earthed. • Fixed wiring installations must incorporate an all-pole disconnection switch. Correctly locate the appliance into its final operating position and using a spirit level, adjust the legs so that the appliance is level and at the correct height. Connect the power supply to the appliance. -
Page 14: Operation
Only qualified service persons are allowed to carry out installation and servicing of this appliance. Waldorf bratt pans have been designed to provide simplicity of operation and 100% safety protection. Improper operation is therefore almost impossible, however bad operation practices can reduce the life of the bratt pan and produce a poor quality product. - Page 15 Operation BP8080EE and BP8120EE Models. Water Flow Control Valve OFF Position Graduated Flow Heating Indicator Lamp (Amber) Temperature Control Knob Graduations from 1 to 10 for heat control. Power Indicator Lamp (Green) Electrical Tilt Controls With the bratt pan lid Fig 4 open, the bratt pan can be electrically raised to...
-
Page 16: Turning On The Main Element And Setting The Desired Temperature
CHECK THAT THE SPACE BEHIND AND ON BOTH SIDES OF THE PAN IS CLEAR OF ANY OBSTRUCTIONS BEFORE TILTING THE PAN DOWN BP8080E and BP8120E Models a. To tilt the pan, turn the pan tilt handle clockwise. The heating element will automatically switch ‘Off’... -
Page 17: Cleaning And Maintenance
Cleaning and Maintenance AUTIO N Always turn off the electrical supply before commencing any cleaning. This appliance is not water proof. Do Not use water jet spray to clean interior or exterior of this appliance. General Clean the bratt pan regularly. A clean appliance looks better, will last longer and will perform better. A dirty cooking surface will hinder the transfer of heat from the cooking surface to the food. -
Page 18: Weekly Cleaning
Cleaning and Maintenance Weekly Cleaning NOTE: • If the bratt pan usage is very high, we recommend that the weekly cleaning procedure is carried out on a more frequent basis. • Ensure that protective gloves are worn during the cleaning process. •... -
Page 19: Fault Finding
Fault Finding This section provides an easy reference guide to the more common problems that may occur during the operation of your equipment. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your equipment. Although this section covers the most common problems reported, you may encounter a problem not covered in this section. -
Page 20: Wiring Schematic
Wiring Schematic BP8080E / BP8120E (Manual Tilt Models) THIS SIDE OPEN... - Page 21 Wiring Schematic BP8080EE / BP8120EE (Electric Tilt Models) THIS SIDE OPEN...
-
Page 22: Replacement Parts List
Replacement Parts List Replacement Parts List IMPORTANT: Only genuine authorized replacement parts should be used for the servicing and repair of this appliance. The instructions supplied with the parts should be followed when replacing components. For further information and servicing instructions, contact your nearest authorized service branch (contact details are as shown on the reverse of the front cover of this manual).
