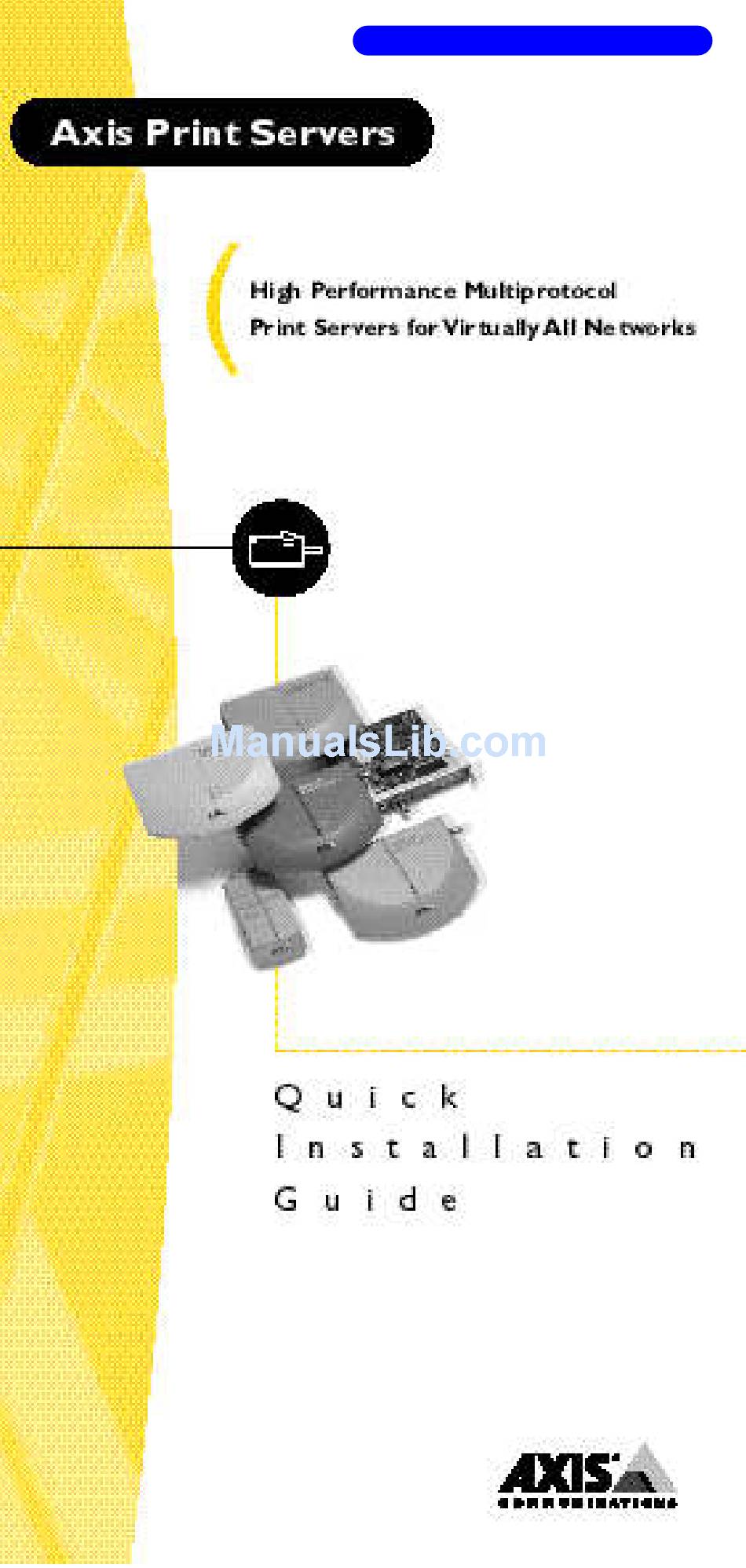

English Quick Installation Guide AXIS PrintPoint 1P 560/100, AXIS PrintPoint 560/100, AXIS 560 and AXIS 660 Fast Ethernet, Ethernet and Token Ring Print Servers for NetWare Windows LANtastic OS/2 UNIX Macintosh Web Management...
AXIS 5 60/ 660 0 This guide covers the installation and basic setup procedures for the AXIS 560/660 - see note right. If you need more detailed instructions, please refer to the AXIS 560/660 User’s Manual. Physical Description LPT1 Printer...
Fast Ethernet, Ethernet or Token Ring cable. Refer to the User Manual for specific cabling details. 5. For the AXIS 660 only: Slide the Ring Speed switch to 4 or 16, as appropriate for your Token Ring network. 6. Switch on the printer. Connect the AXIS 560/660 power supply.
Page 5
1. Make sure that the HP Gateway is not configured to automatically create a public access printer. 2. Connect the AXIS 560/660 to the NetWare network, if it is not already connected. 3. Use the NetWare Administrator to create an NDPS printer as an object in the directory.
Page 6
1. Acquire an unused Internet Address from your Network Administrator and choose a unique name for your AXIS 560/660. 2. Add your AXIS 560/660 Internet address and host name to your system host table by appending the following line to the file: <internet address>...
Page 7
Windows NT environments. The AXIS Print Monitor supports NetBIOS/NetBEUI as well as LPR printing. The AXIS Print Utility for Windows is also supplied on the AXIS Utilities disk and is the tool for network printing within Windows for Workgroups and Windows 3.1 environments.
The setup procedure is described below: 1. Install AXIS Print Utility for Windows onto the file server. 2. Set up your AXIS 560/660 from the file server as described in the peer-to-peer printing section below, but additionally check the Share box for your printer.
AXIS Print Utility icon into your StartUp file. Windows Clients using LANtastic From any Windows client, the AXIS 560/660 may also be used for network printing within LANtastic environments. Your choice of Axis utility software should be guided by type of Windows client employed.
AXIS 560/660, as described in the UNIX section of this document, you are now able to access your AXIS 560/660 from any standard Web browser. To do this, simply enter the Internet address or the host name of the AXIS 560/660 as a URL in your browser, as follows: http://192.36.253.96...
