- Page 1 Owner’s Manual Portable Air Conditioner Model ACW600C It is important that you read these instructions before using your new purchase and we strongly recommend that you keep them in a safe place for future reference. Innovative AutoDrain NanoMist Technolog y...
-
Page 2: Table Of Contents
Contents Table of Contents Thank You! ………………………………………………………………………1 Safety Instructions …………………………………………………………… 1-2 Specifications ……………………………………………………………………3 Parts ……………………………………………………………………………4 Positioning ………………………………………………………………………5 Control Panel ……………………………………………………………………6 Remote Control …………………………………………………………………7 Multi Protective Function ………………………………………………………8 Emptying the Water Container …………………………………………………9 Cleaning ……………………………………………………………………… 10 Troubleshooting ……………………………………………………………… 11 Warranty ……………………………………………………………………… 12... -
Page 3: Thank You
Thank You! Thank you for purchasing an Arbaco Portable Air Conditioner. Arbaco is a leading brand in indoor air treatment. We would like you to enjoy the many benefits this unit offers, so please read this manual carefully and take full advantage of the many advanced features that your Arbaco Portable Air Conditioner offers you. -
Page 4: Safety Instructions
Instructions Safety Instructions Do not use your air conditioner: Close to a heat source If the power cable wires When small children may On a slope or uneven are frayed or cut be left unattended surface This products is not made If there is a risk of liquid Inside unit exposed to the In a permanent very humid... -
Page 5: Specifications
Specifications Model ACW600C Cooling Capacity 12,000 BTU/h Cooling /Heating 1000W / 9.7A Power Consumption / Current Moisture Removal in Cooling mode 61 pints/day Power Supply 110-120V/60Hz Refrigerant R410A Compressor Rotary Fan Speed 3 Speeds Thermostat 64ºF - 80ºF Ambient Temperature Range 60ºF - 105ºF... -
Page 6: Parts
Parts Front Side Back Side Top Cover Outlet Control Upper Panel Filter frame Handle Exhaust Front Connector Cover Power Supply Cord Power Lower Cord Filter Frame Location Caster Plug Cap Rubber Plug Check packing accessories and read your user’s manual to learn how to use them. Remote Control Slide Bar... - Page 7 AutoDrain NanoMist Technology™ Assembly ™ Put spiral water Attach Window pipe into hot air Slide Bar flexible hose. Connector to Exhaust Hose by twisting as shown. Turn the Connect the connector female half of the 90 degrees quick connector at the end of the clockwise until it is locked in place.
- Page 8 Positioning This unit can easily be moved from one room to another. In doing so keep this in mind: • The air conditioner must stand upright on an even surface. • Do not position near bath, sink, or other permanent, wet or damp area. •...
- Page 9 Control Panel Timer Mode Sleeping Display Area Swing Fan Speed Mightiness Down Signal On/Off Receptor When plugging in, follow the start music until the unit is in standby status. The digital screen will indicate the temperature (Range: 41º-95ºF), if the temperature is above 95º, the screen will show “H”, if below 41º, it will indicate “L”.
-
Page 10: Remote Control
Remote Control Power Mode Down Swing Sleeping Temperature Timer Mightiness Reset Keypad Lock POWER: Press this key to turn on/off the unit. MODE: Press this key to choose cooling, dehumidifying or fan UP: Press this key to turn up temperature or adjust time. DOWN: Press this key to turn down the temperature or adjust the time. -
Page 11: Multi Protective Function
Multi Protective Function Freeze Prevention Control If the copper coil temperature is below 2° after ten minutes of running, the error code E4 will display on the LCD screen. When the copper coil temperature increases to 8° the freeze prevention will stop and the compressor and water pump will resume normal function. -
Page 12: Emptying The Water Container
Emptying the Water Container In case of the W (P2) LED alert, the unit is required ATER to be drained. At the end of AC Season, this unit should be drained prior to storage. In both situations, we recommend that you take the following steps. Switch off the unit and remove the plug from the outlet. -
Page 13: Cleaning
Cleaning Always unplug the unit from the power supply (wall outlet) before beginning the cleaning. Housing Use a soft, damp cloth to wipe the body clean. Never use strong chemicals, oil-based products, detergents, chemically treated cloths or other cleaning solutions. These could possibly damage the housing. Filter ·... -
Page 14: Troubleshooting
Troubleshooting Never try to repair or dismantle the air condition yourself. Incompetent repairs result in loss of warranty and can endanger the user and the property. Problem Cause Solution No power supply. Make sure the Connect to a functioning outlet and switch on. The air green light on the plug is lit. -
Page 15: Warranty
One Year Limited Warranty American Comfort Worldwide LLC (“ACW”) warrants this ACW portable air conditioner to the original retail purchaser (“Purchaser”) purchasing only in the 48 Contiguous States, for one year from the date of purchase, against defects in material and workmanship under normal use and service. Should your ACW Portable air conditioner prove defective within one year from the date of purchase, please follow our return procedure to return the defective unit.
Need help?
Do you have a question about the ACW600C and is the answer not in the manual?
Questions and answers

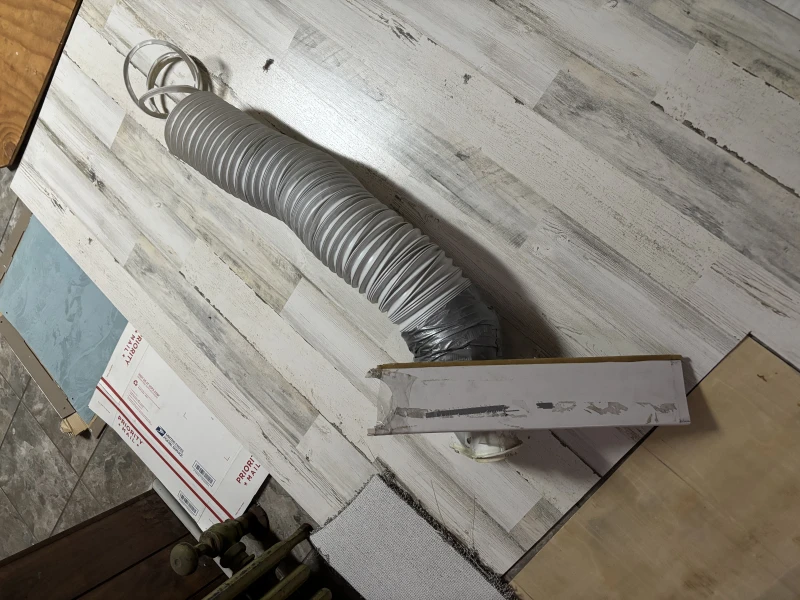

How fo I replace hose model that attaches to window metal piece and window piece
