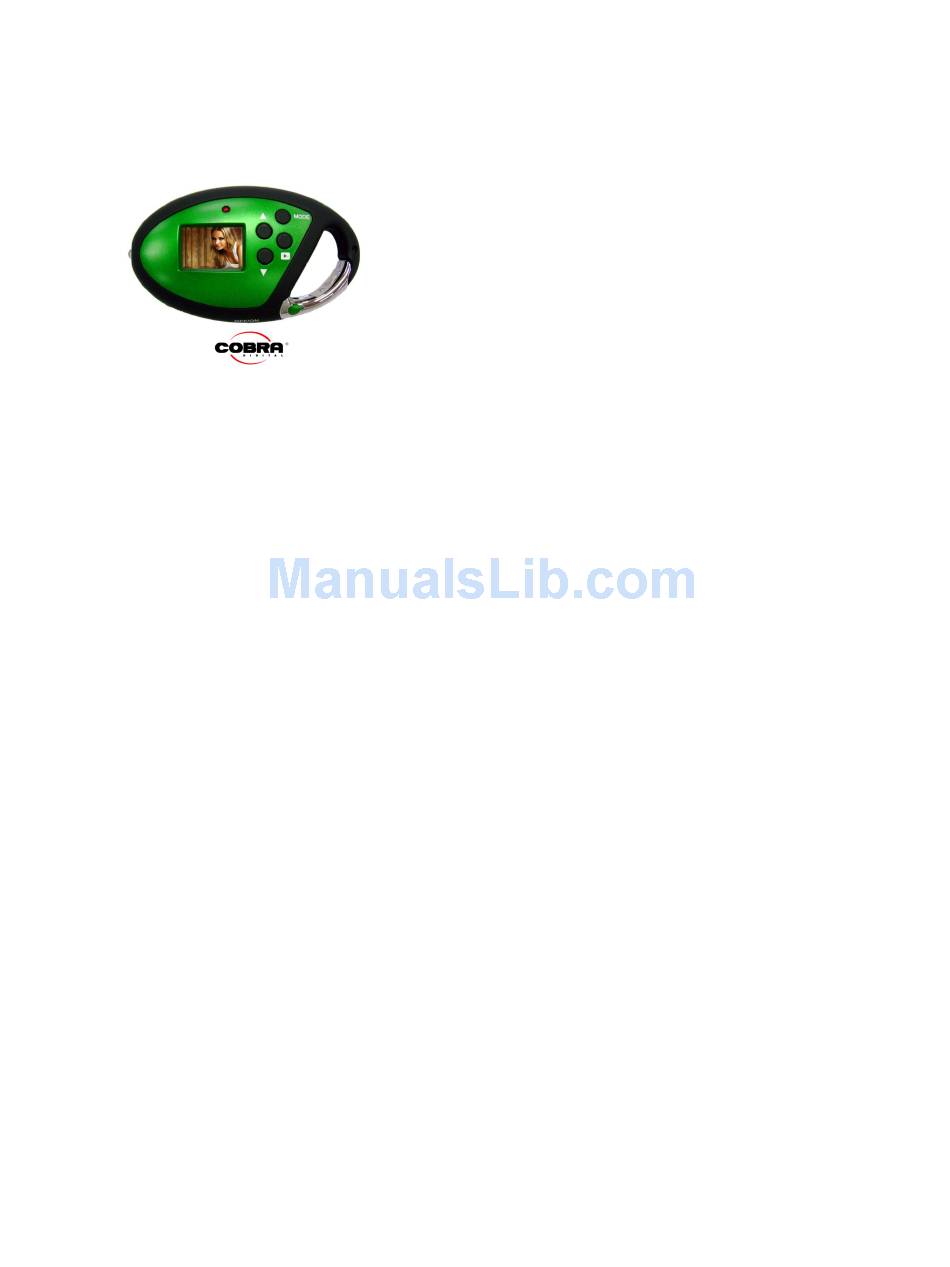

Page 1: Digital Camera
Digital Camera DC1130 User Manual Off load images within a week or less Keep battery charged... - Page 2 Digital Camera DC1130 PROFILE OVERVIEW Thank you for purchasing the DC1130 digital camera. This camera takes still, video, and acts as a PC Webcam This camera is equipped with a 4M*16b built-in SCRAM. Through the USB Cable provided, you can download the captured images to your computer, or use the camera as a webcam for face-to-face online chat with your friends the internet.
-
Page 3: Installation Of Driver
INSTALLATION OF DRIVER 1. Make sure the camera is connected to your computer. Load the software CD to your PC. 2. Installation of Driver Click <Install Camera Drive> and follow the step-by-step instructions to complete installation. After successful installation of driver, restart your computer. A "Precision 801 V4" folder will appear on your desktop. TURNING ON / OFF CAMERA 1.Press MODE button to turn on the camera ,the power indicator light will turn green . - Page 4 2.Press the "Shutter" button to take photos. 3.The power indicator light will flicker when capturing. ○ SELF-TIME MODE 1. press "Shutter" button to change icon into SELF-TIME mode ,press "MODE" button to confirm. 2. On the front of the camera adjacent to the lens is a small aiming mirror. 3.
- Page 5 3.pree "MODE" button to confirm . Settings-IMAGE COMPRESSION In order to better utilize the built-in memory, the CLIPSTER carries a File Compression function. When the digital camera is set to compress the files, more images or increased length of video can be stored.
-
Page 6: Using The Digital Camera As Pc Camera
3.Click the icon of a pink camera on the bottom left to download your images. Note: After downloading the files from your camera, thumbnails of the images will be shown on the twelve boxes of the program screen. Video images will be marked with an "AVI" logo on the upper left-hand corner of the thumbnails. - Page 7 2. Go to "File" on the menu bar and choose "Set Capture File" for choosing the default location for saving. Choose the desired location and name the file (be sure to include "AVI" after the file name) then click "Open". The video recorded will be saved to this location automatically.
- Page 8 5. Go to "Options" on the menu bar and choose "Video Capture Pin…" to choose the resolution of the video that will be captured. Choose the desired "Frame Rate" and the desired "Color Space/Compression" and "Output Size". Click "OK" or "Apply" to confirm setting.
- Page 9 8. Go to "Capture" on the menu bar and choose "Start Capture" (the default saving location must be set). A pop-up window will appear requesting confirmation to proceed while showing the default saving location. Click "OK" to begin video capturing. 9.
-
Page 10: Using The Digital Camera As A Web Cam
10. To save the file in location other than the default location, go to "File" on the menu bar and choose "Save Captured Video As…". Choose the desired location and rename if necessary (be sure to include "AVI" after the file name), then click "Open"... -
Page 11: Camera Specifications
CAMERA SPECIFICATIONS Image Sensor: 300K Pixel CMOS sensor Internal Memory: 4*16Mb built-in SDRAM Modes: digital video recording (no sound) - still photos - PC Camera Resolution: 320x240 File Formats: 24-bit JPEG/AVI Storage Capacity:-VGA 26 images 79 compressed -QVGA 104 images 319 compressed -AVI ~79 seconds Status display: 1'CSTN Interface: USB 1.1... -
Page 12: Important Notice
the party responsible for compliance could void the user' s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a class Digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 13: Warranty
Should you require in-guarantee service, send your product and proof of purchase directly to Cobra Digital, 95 E. Messner Dr, Wheeling, IL 60090.
