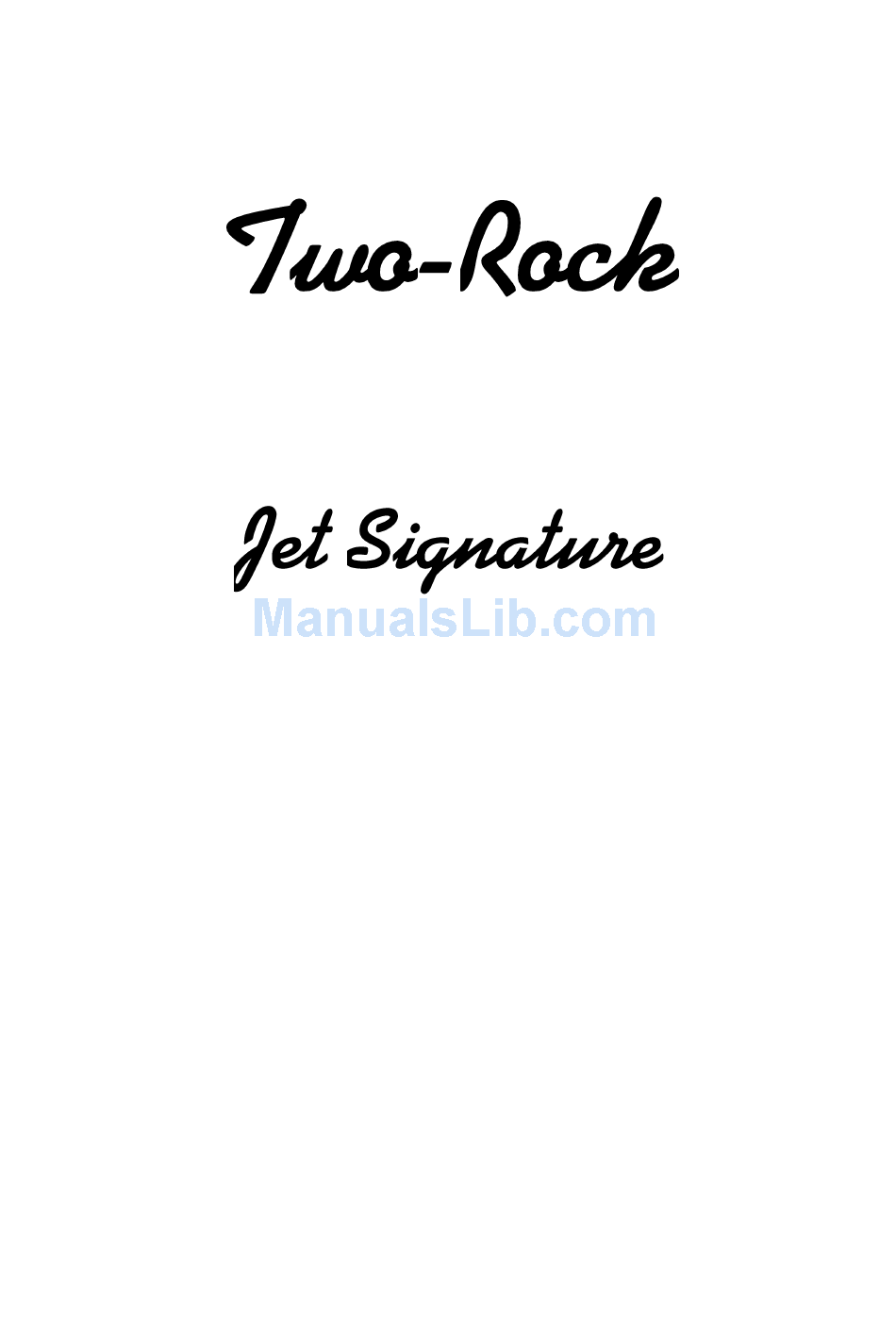

- Page 1 OWNERS MANUAL...
- Page 2 Dear Customer, Thank you for your purchase of a amplifier from Premier Builders Guild. As a discerning guitarist, you know the road to great tone begins with great components. Our Classic Design, carefully selected parts and hand-built approach combine to make an extremely versatile instrument. Please take the time to read this manual.
-
Page 3: Front Panel Functions
Front Panel Functions 1. Input Jack- High impedance input to the amplifier. Plug in your instrument here. 2. Push/Pull Treble Control- Adjusts the high frequency response. In the full counter-clockwise position, high frequencies are bypassed to ground. In the full clockwise position, high frequencies are allowed to pass to the next gain stage. -
Page 4: Rear Panel Functions
8. Footswitch Jack- The footswitch connects here. The clean/lead and tone bypass functions can only be activated via the footswitch. Fuse Chart All Fuses are 3AG Type 250 Volt, SLO-BLO Export 100 Volt/Domestic Export 220, 230, 240 Fuses: 2A- Jet and Jet Signature Jet and Jet Signature FOOT SWITCH... - Page 5 (Tube Complement) V1- 12AX7, Rhythm channel V2- 12AX7, Lead Channel V3- 5751/12AT7, Reverb Driver V4- 12AX7, Reverb/effects V5- 12AX7. Phase Inverter V6, V7- 6V6GC/6L6GC, Output Each fine production tube is tested and matched to our exacting specifications. External bias adjustment and test points are located on the chassis near the output tube sockets. A digital voltmeter and small screwdriver are required for bias adjustment.
- Page 6 Please contact us with any other questions or comments that you may have. We look forward to hearing from you! PHONE: 1(707)584-TONE (8663) (M-F 9am-5pm PST) FAX: 1(707)584-8661 ADDRESS: Two-Rock 619 Martin Avenue, Suite 6 Rohnert Park, CA 94928 SERVICE: service@two-rock.com WEB: www.two-rock.com...
- Page 7 This is a product of Premier Builders Guild 619 MARTIN AVENUE, SUITE 6 ROHNERT PARK, CA 94928 707-584-8663 www.two-rock.com SERIAL NUMBER: _____________________________...
- Page 8 DECLARATION OF CONFORMITY Report #R070212 We, Two-Rock Amplifiers, in coordination with CES Laboratories, declare, taking this declaration under our total responsibility, that the below models are in conformity with the provisions of the following EC Directive(s) when installed in accordance with the installation instructions contained in the product...
