Kino Flo CEL-200C-120U Operation Manual

Celeb 200 dmx led system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operation Manual
Celeb 200 DMX LED
®
Part No. 3100065 Rev A
09-25-2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CEL-200C-120U and is the answer not in the manual?

Questions and answers

Related Manuals for Kino Flo CEL-200C-120U

Summary of Contents for Kino Flo CEL-200C-120U

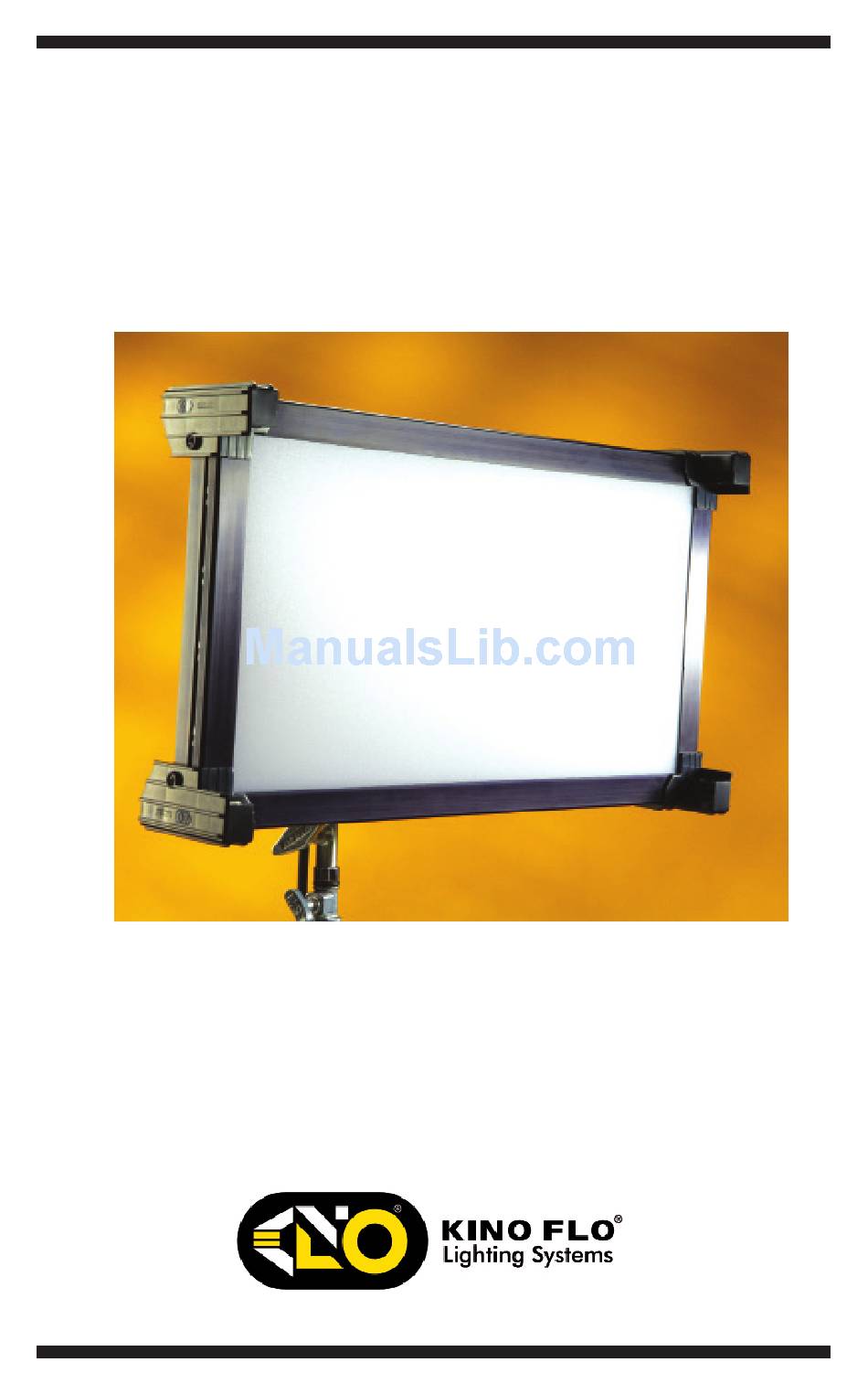

  • Page 1 Operation Manual Celeb 200 DMX LED ® Part No. 3100065 Rev A 09-25-2013...
  • Page 2 Celeb 200 DMX LED System Celeb 200 Center Mount CEL-200C-120U Celeb 200 DMX Center Mount, Univ 120U CEL-200C-230U Celeb 200 DMX Center Mount, Univ 230U Celeb 200 Yoke Mount CEL-200Y-120U Celeb 200 DMX Yoke Mount, Univ 120U CEL-200Y-230U Celeb 200 DMX Yoke Mount, Univ 230U...
  • Page 3 Celeb 200 DMX LED Kit KIT-C2-120U Celeb 200 DMX Center Mount Kit, Univ 120U KIT-C2-230U Celeb 200 DMX Center Mount Kit, Univ 230U Kit Contents: 1 Celeb 200 DMX Center Mount 1 Flight Case Weight: 31 lb (14kg) Dimensions: 29 x 10.5 x 17” (74 x 27 x 43cm)
  • Page 4 Celeb 200 DMX Control Panel A) Kelvin Preset Buttons: Kelvin buttons come preset at the factory. Factory defaults left to right are: 2700K, 3200K, 4000K, 5000K, 5500K. User can also use these preset buttons to store custom Kelvin settings. B) DMX ADDRESS – Use to set DMX address. The Celeb 200 automatically assigns 2 channels.
  • Page 5 Ballast Power AC Input The Celeb is powered AC with the built-in power supply with universal input from 100-240VAC. Note: When operating AC, attach the Velcro strap around the baby receiver lollipop as a strain relief. The handles also provide an attachment point for a safety chain if fixture is hung from a grid.
  • Page 6 Start Up When power is first applied to the fixture, the alphanumeric display shows the current software version. Press the On/Off button to turn on the fixture. The display will default to a Kelvin setting of 5000. Kelvin Selection There are 5 Kelvin factory preset buttons.
  • Page 7 Kelvin Custom Settings In KELVIN mode, the Kelvin can be fine tuned with the adjustment knob to custom settings between 2700K to 5500K. The setting can be assigned to any preset button by holding down the desired button for 5 seconds. The Kelvin display will flash once the setting is registered.

  • Page 8: Reset Factory Settings

    Reset Factory Settings To reset factory settings, press and hold the LOCK / RESET button for 5 seconds. The indicator light will turn green and the display will flash 5000 and light output will be at 100%. Lock Mode Press the LOCK / RESET button to lock the Kelvin and Dim settings.

  • Page 9: Dmx Operation

    DMX Operation The Celeb 200 DMX operates on two DMX channels using DMX512. The first channel operates dimming; the 2nd channel operates Kelvin color temperature control. Once an address is selected, the fixture automatically assigns 2 channels. Press and hold the DMX ADDRESS button to select a DMX address.
  • Page 10 Note: All Kelvin indicator lights will turn green if a valid DMX signal is present. If a fixture loses its DMX signal, it will hold its last DMX command. For this reason, it is important to turn a fixture off using the DMX commands. For example, if you try to turn off the lights by turning off the dimmer board, the lights will remember their last DMX command and stay on.

  • Page 11: Dmx Cables

    Celeb 200 DMX Kelvin Color Temperature Dimmer Level Kelvin Color Dimmer Temperature Level 5500K 100% 5000K 4000K 3200K 2700K Note: The detailed DMX mapping for the Celeb 200 DMX fixture can be downloaded from the Operation Manual posted on www.kinoflo.com. IMPORTANT! The dimmer board/light console should have its channel set to LINEAR light output response.
  • Page 12 Center Mount MTP-LB Mounted on Mounted to pipe grid a baby stand The Celeb 200 Center Mount fixture includes a Lollipop w/ Baby Receiver (16mm) (MTP-LB) which allows the fixture to be mounted directly onto a baby stand or hung from a grid with a baby pipe clamp. Note: The handles on the back of the fixture provide an attachment point for a safety chain.
  • Page 13 Baby Offset Arm MTP-B41F Kino Offset w/ Baby Receiver (16mm) The Kino Offset w/ Baby Receiver (MTP-B41F) allows fixtures to mount on the center of a stand or it can also be under slung from a baby stand to use as an up light. Yoke Mount MTP-I40 MTP-I80...

  • Page 14: Mount Options

    Pole-Op The Celeb 200 Pole-Op fixtures include a yoke with an attached junior pin. They can be hung from a grid with a Junior pipe hanger. Junior pin attached to Pole-Op Yoke Operating Pole-Op The Blue cup alters the Pan (left or right). The White cup alters the Tilt (up or down).
  • Page 15 Applying Gel to Frame Option 1 - The Gel Frame comes with gel clips. Cut the gel to size and use the clips to fasten the gel to the frame. Option 2 – Apply transfer tape directly to the Gel Frame. The clips are not necessary when taping the gel.

  • Page 16: Troubleshooting

    Inserting Barndoors Position the barndoors alongside the extruded edge of the fixture. Align the thumbscrews with the adjust- able receptacle holes in the fixture and insert into place. Lock the barndoors by turning the silver thumbscrew. To remove, reverse the procedure.
  • Page 17 Troubleshooting continued Can’t set the DMX address. You must Press and Hold the DMX Address button for 3 seconds in order to select an address. The display will flash while in edit mode. Select a valid address from 1-512. (Note: 0 or 513 and higher are invalid addresses.) Can’t operate the fixture manually with the DMX cable plugged in.
  • Page 18 MTP-CE Celeb 200 Mount w/ Pin MTP-I80 Junior Pin Assembly for Yoke (28mm) MTP-I40 Baby Receiver Assembly for Yoke (16mm) KAS-CE2 Celeb 200 Flight Case KAS-CE2-C Celeb 200 Travel Case KAS-CE2-Y Celeb 200 Yoke Ship Case STD-M30 Medium Duty Stand/Black, 30” STD-M36 Medium Duty Stand/Black, 36”...

  • Page 19: Fixture Specifications

    Fixture Specifications CEL-200C-120U Celeb 200 DMX Center Mount, Univ 120U AC Input Voltage: 100~240VAC 50/60Hz, 100W Amperage VAC: 0.96A at 120VAC DC Input Voltage: 18~28VDC, 100W Amperage VDC: 4.0A at 24VDC Celeb 200 DMX Kelvin Range: 2700K~5500K Center Mount Dimming Range: 100%~1% Weight: 15 lb (6.8kg)
  • Page 20 This product is made of recyclable materials and should be disposed of in accordance with governmental regulations. Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA Tel: 818 767-6528 website: www.kinoflo.com...
