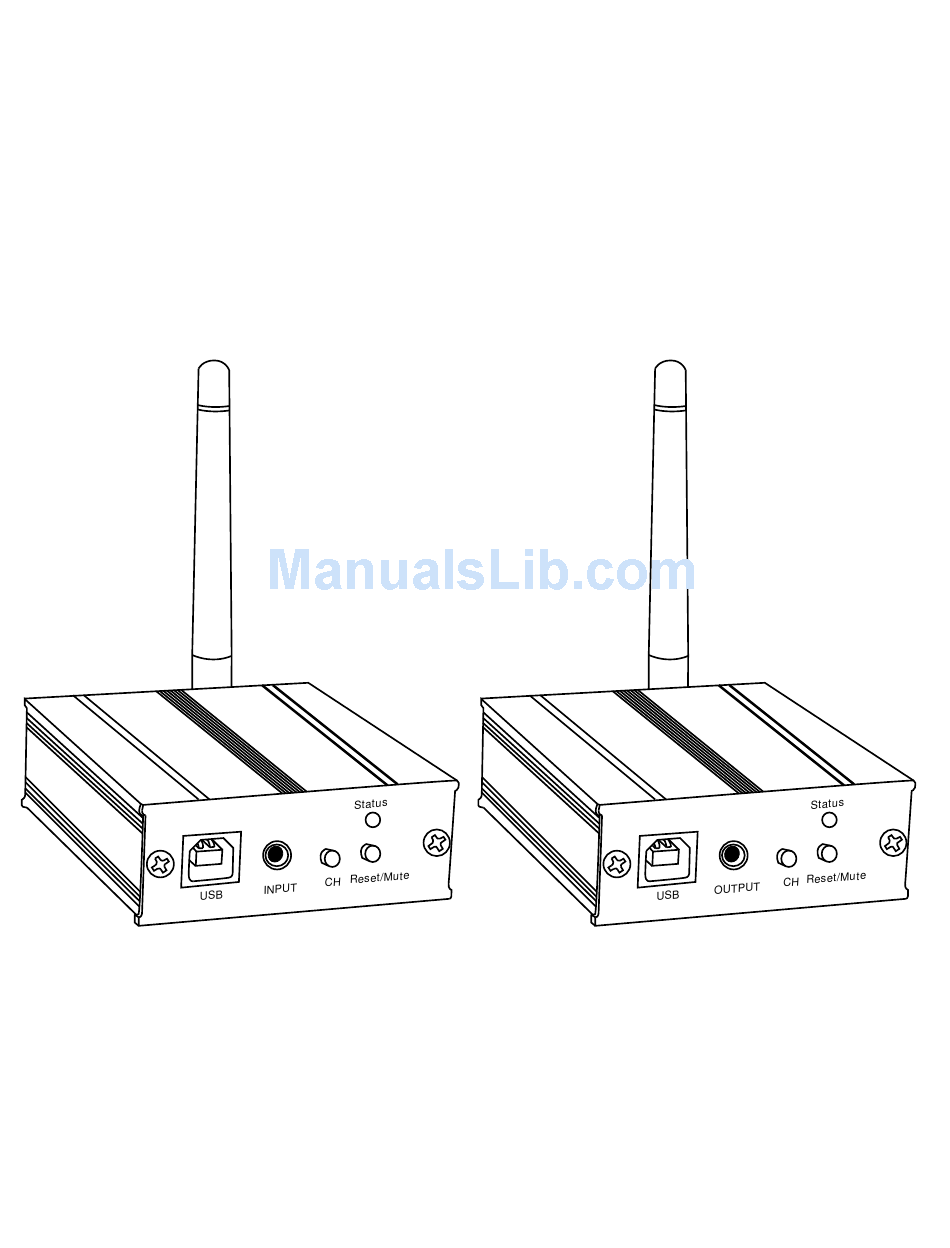

- Page 1 Model: SWAT 2.4 Stereo Wireless Audio Transceiver User Manual TRANSMITTER RECEIVER Earthquake Sound Corp. | (510) 732-1000 | U.S. Toll Free: (800) 576-7944 | www.earthquakesound.com...
-
Page 2: Table Of Contents
Fax: 510-732-1095 © 2009 Earthquake Sound Corporation. All rights reserved. This document should not be construed as a commitment on the part of Earthquake Sound Corporation. The information is subject to change without notice. Earthquake Sound Corporation assumes no responsibility for errors that may appear within this document. -
Page 3: Introduction
SWAT 2.4 consists of a Transmitter (a unit that connects to the source) and a Receiver (a unit that connects to the amplifier or powered speaker). The SWAT 2.4 Transmitter connects to a stereo, MP3 player, computer, or any other device that can play audio through a 3.5mm stereo jack or RCA output. -
Page 4: Important Safety Instructions
- maintenance instructions in this RISK OF ELECTRIC SHOCK voltage that may be sufficient to accompanying literature. DO NOT OPEN constitute a risk of shock. Earthquake Sound Corp. | (800) 576-7944 | www.earthquakesound.com SWAT-2.4 Manual... -
Page 5: Unpacking Tips
System installation considerations There are several factors to consider before installing Earthquake Sound’s SWAT 2.4. • What are the intended listening zones? • What system options and accessories might be required for features such as local sources, etc.? -
Page 6: What Comes With Swat 2.4
• Lowest latency (<0.5ms), and good quality of surround • Low power consumption for a wide range of input voltage supporting • Audio muting function when receiving weak signal or no signal • Auto channel scanning function Earthquake Sound Corp. | (800) 576-7944 | www.earthquakesound.com SWAT-2.4 Manual... -
Page 7: Powering Your Swat 2.4
Transmitter tries to broadcast through the wrong channel, you can simply press the CH button and select a different channel. This is why the SWAT 2.4 offers 20 channels, more than any other transceiver on the market. It also has a channel tracking mode, in which the Receiver will automatically find the Transmitter's channel after it is changed. -
Page 8: Connecting Your Swat 2.4
3.5mm Stereo to 3.5mm Stereo cord Powered Subwoofer or Powered Speaker or Stereo Receiver Connecting Your Receiver To connect your SWAT 2.4 Receiver to a powered speaker/subwoofer, amplifier, or stereo receiver, use the Stereo to RCA cord. Plug the Stereo jack in the “OUTPUT” of your SWAT 2.4 Receiver and plug the... -
Page 9: Interface
7) DC- DC power interface. Positive inside and negative outside; Voltage: DC 3.6 – 6V 8) ANT- 2.4GHz antenna. The antenna can rotate 180 degrees. However, do not rotate past resistance. Earthquake Sound is not liable for antennas broken in this manner. SWAT 2.4... -
Page 10: Specifications
Sampling Ratio 65kHz at 16bit S/N Ratio 95dB 0.3%@1kHz Dynamic Range 90dB Channel Separation 85dB Dimensions (L x W x H) 3.15” x 2.7” x 1” (80mm x 69mm x 25mm) Earthquake Sound Corp. | (800) 576-7944 | www.earthquakesound.com SWAT-2.4 Manual... -
Page 11: Warranty Information
• Product/part damaged due to poor packaging or abusive shipping conditions. • Subsequent damage to other products. A warranty claim will not be valid if the warranty registration card is not properly filled and returned to Earthquake with a copy of the sales invoice. - Page 12 Sound That Will Move You Earthquake Sound reserves the right to amend details of the specifications without notice. © Copyright Earthquake Sound Corporation Earthquake Sound Corporation 2727 McCone Avenue, Hayward CA, 94545 Phone: (510) 732-1000 Fax: (510) 732-1095...
