Summary of Contents for EarthQuake SWAT-2.4X

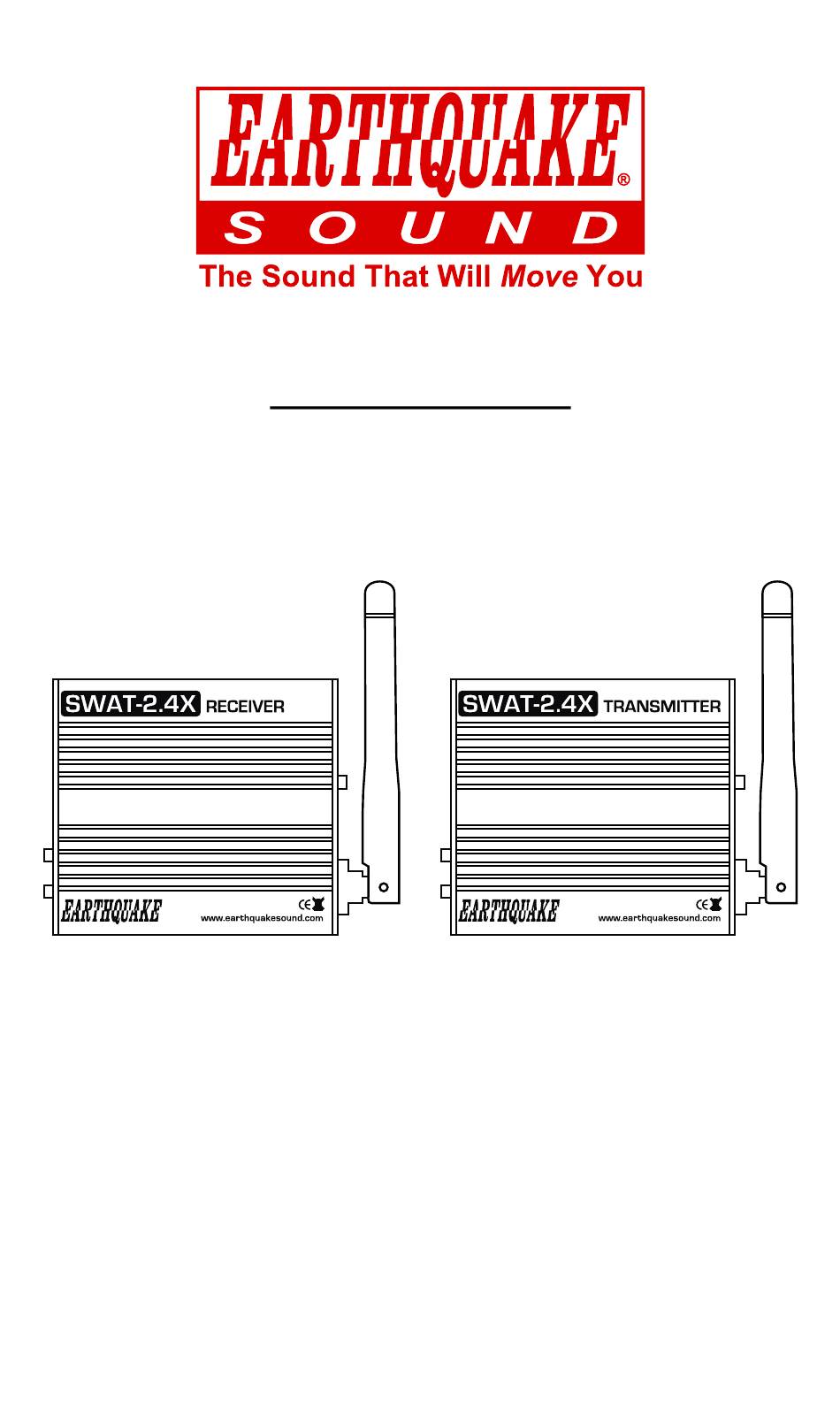

- Page 1 SWAT-2.4X Stereo Wireless Audio Transceiver Transmitter Receiver USER MANUAL Earthquake Sound Corp. | (510) 732-1000 | U.S. Toll Free: (800) 576-7944 www.earthquakesound.com...
-
Page 2: Table Of Contents
© 2024 Earthquake Sound Corporation. All rights reserved. This document should not be construed as a commitment on the part of Earthquake Sound Corporation. The information is subject to change without notice. Earthquake Sound Corporation assumes no responsibility for errors that may appear within this document. -
Page 3: Safety Instructions
Safety Instructions Safety First This document contains general safety, installation, and operating instructions for SWAT-2.4X. It is important to read this user’s manual before attempting to use these products. Pay particular attention to the safety instructions. Symbols Explained: Appears on the component to indicate the presence of uninsulated, dangerous voltage inside the enclosure –... - Page 4 - voltage that may be sufficient to constitute risk of shock. This triangle, which appears on your component, alerts you to important op- erating and maintenance instructions in this accompanying literature. SWAT-2.4X Manual...
-
Page 5: Unpacking Tips
• Keep the original carton and packing materials for future shipment or storage. • Check for any visual signs of damage. If you encounter any concealed dam- age, consult your Earthquake Sound dealer before proceeding with unit installation. • Retain the sales receipt as it establishes the duration of the limited warranty and provides information for insurance purposes. -
Page 6: Introduction
(additional receivers can be purchased separately). With 20 broadcast/pairing channels, the chance of interference with other signals is extremely slim. The SWAT-2.4X is also equipped with an advance auto-connect circuitry which allows the receiver(s) to automatically adjust to match the transmitter channel. -
Page 7: The Swat-2.4X Overview
7. POWER Switch When this 2-way switch is in the ON position, the SWAT-2.4X is powered on. And when it is in the OFF position, then the SWAT-2.4X is off. 8. DC Power Receptacle The SWAT-2.4X requires 3.6–6V DC. -
Page 8: Powering & Pairing The Swat-2.4X
Stereo Audio Input Connection Using the provided 3.5mm to 3.5mm or 3.5mm to RCA cable, connect the 3.5 mm side to the SWAT-2.4X transmitter and the other 3.5mm or RCA end to an audio source. Note: The SWAT-2.4X is designed to accept only one audio input. -
Page 9: Swat-2.4X Applications
The receiver will automatically pair to the transmitter. Point To Mass Setup Audio Source Tactile Transducers Components used: One (1) SWAT-2.4X transmitter One (1) or more SWAT-2.4X receivers Two (2) XJ-300ST amplifiers Transmitter Four (4) MQB-1 tactile transducers Receiver Receiver Step 1. - Page 10 Single Point To Point Setup 8 Zone Whole House Setting Components used in Source Area: One (1) SWAT-2.4X transmitter One (1) Cinénova IR16 8-zone/16 channel amplifier One (1) SWAT-2.4X receiver Components used in zone 1 to 3: Six (6) ECS series speakers...
- Page 11 Point To Point Setup Outdoor Speakers & Subwoofer System Components used: One (1) SWAT-2.4X receiver One (1) XJ-300ST amplifier One (1) ROCK-On series 2.1 woofer and speaker setup 1. Connect the transmitter to the audio source using either the high level or stereo input.
-
Page 12: Troubleshooting
• Check to see if the transmitter is on and none of its buttons are pressed. Intermittent Signal or Sound Keep in mind that the SWAT-2.4X requires 3.6–6V DC power and 0.5–17V RMS high level input. • Check to make sure that the receiver or transmitter is a minimum of 6 feet away from any network router as this can cause channel interference. -
Page 13: Specifications
S/N Ratio 95 dB 0.3% @ 1kHz Dynamic Range 90 dB Channel Separation 70 dB Dimensions (W x D x H) 3.14” x 2.75” x 1” (80mm x 69mm x 25mm) Specifications are subject to change without notice. SWAT-2.4X Manual... -
Page 14: Warranty Guidelines
(1) year from the date of purchase (as shown on the original sales receipt with serial number affixed/written on it). The one (1) year limited warranty period is valid only if an authorized Earthquake dealer properly installs the product and the warranty registration card is properly filled out and sent to Earthquake Sound Corporation. - Page 15 Earthquake Sound Corp. 2727 McCone Avenue, Hayward, CA 94545 Tel: (510) 732-1000 You are responsible for the cost of shipping the product to Earthquake Sound Corpo- ration. (G) Disputes Resolution: All disputes between clients and Earthquake Sound Corporation resulting from the one (1) year limited warranty policy must be resolved according to the laws &...
-
Page 16: For Your Records
For Your Records Date of Purchase: __________________________________________ Authorized Dealer/Installer Info: Name: __________________________________________ Address: __________________________________________ __________________________________________ Phone: __________________________________________ Serial Number: Notes: Specifications are subject to change without notice. SWAT-2.4X Manual... - Page 17 Earthquake Sound reserves the right to amend details of the specifications without notice. © Copyright Earthquake Sound Corporation Earthquake Sound Corporation 2727 McCone Avenue. Hayward CA, 94545. USA Phone: 510-732-1000...
