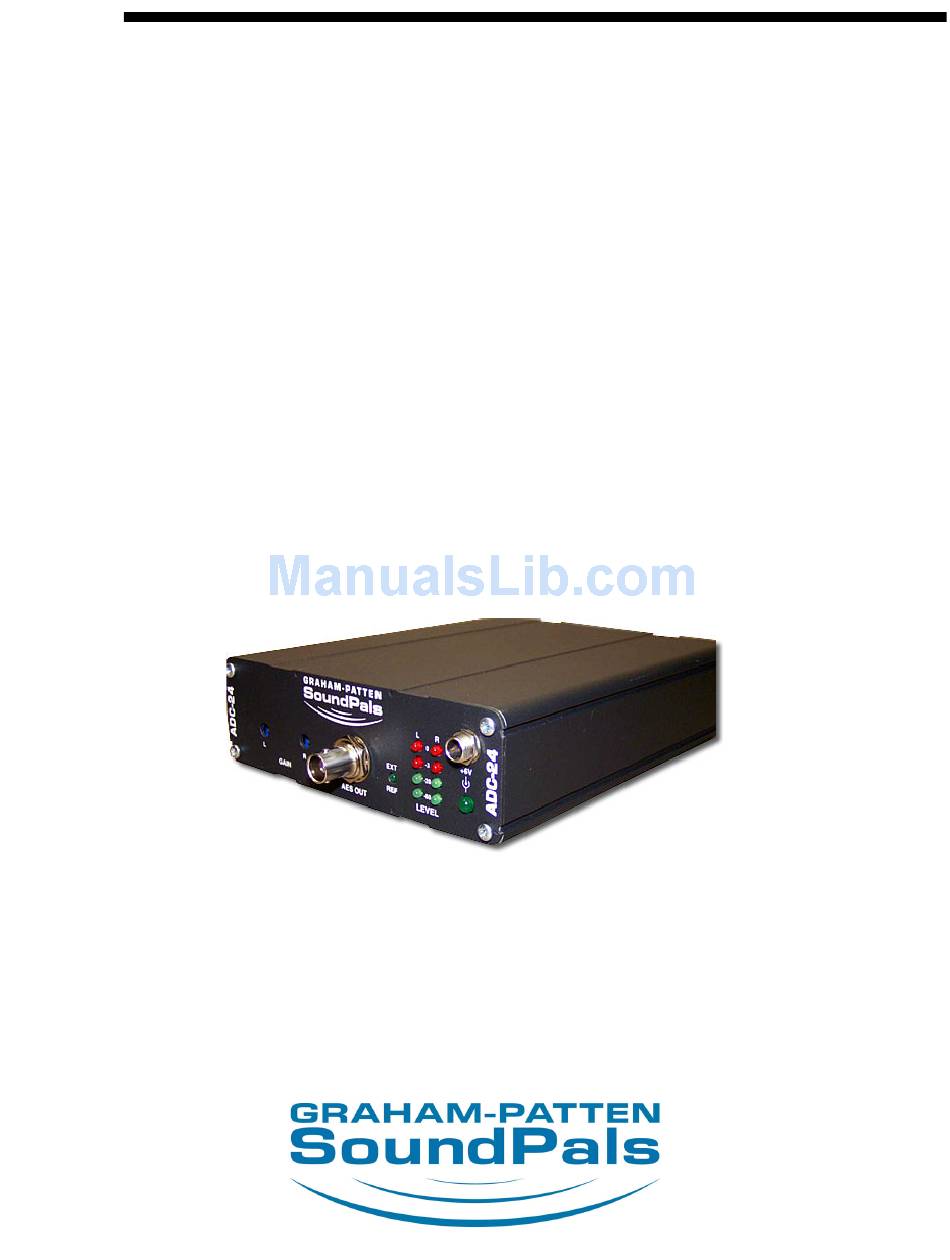

- Page 1 SoundPals™ ADC-24 User Guide Stereo A-to-D Converter...
-
Page 3: Fcc Compliance
Printing History ™ SoundPals ADC-24 A-to-D converter Rev. N/C March 2007 Printed in U.S.A. Part Number 08-2045-00 The information contained in this guide is subject to change without notice or obligation. Copyrights and Trademarks © 2005 GRAHAM-PATTEN SYSTEMS, INC. Contents of this publication may not be reproduced in any form without the written permission of Graham-Patten. -
Page 5: Table Of Contents
Basic - Inserting Analog Equipment .................. 7 Basic - Analog Input to Digital Mixer ................. 7 Advanced - Multiple Analog Inputs to Digital Mixer............8 ADC-24 Internal Jumpers ......................9 ADC-24 Troubleshooting ....................... 11 ADC-24 Specifications......................12 Audio Specifications ......................12 Environmental Specifications and Dimensions ............... -
Page 7: Introduction
Introduction What are SoundPals? Each Graham-Patten SoundPals module is essentially a digital audio building block that can be used independently, or interconnected to perform more advanced mixing and audio processing functions. SoundPals can be used in both standalone and system configurations: •... -
Page 8: Unpacking And Inspection
Unpacking and Inspection When you receive your SoundPals modules, inspect the cartons for signs of damage. Contact your dealer and the shipper immediately if you suspect any damage has occurred during shipping. Check the contents of each box to be sure that all parts are included. If any items are missing, contact your dealer immediately. -
Page 9: About The Adc-24
ADC-24 About the ADC-24 The SoundPals ADC-24 is a stereo 24-bit, analog-to-digital AES converter. The unit takes two line-level analog inputs (on XLR connectors), and converts them to one digital AES output (provided on both XLR and BNC connectors simultaneously). - Page 10 6) Power Connector — accepts the power jack from the 6 VDC power supply. Refer to “External Power” for more information regarding external power. 7) Power LED — the large green LED below the power jack lights when power is applied. The figure below illustrates the ADC-24’s rear panel: AES OUT AES REF...
-
Page 11: Adc-24 Installation
Plug a 6 VDC power supply into the appropriate voltage outlet for your specific country, and connect the end of the cord into the ADC-24 jack marked +6V. Secure the locking ring finger tight. The green LED below the jack lights when power is applied. -
Page 12: Adc-24 Operation
To align the left and right analog outputs: 1. Connect a reference analog tone generator to the ADC-24’s LEFT IN and RIGHT IN connectors. 2. Turn on the reference tone generator, and adjust it to the level that you want to correspond to -20 dB below digital clipping. -
Page 13: Adc-24 Interconnection
ADC (using the AES REF connector). Digital Sources Program Out Digital In AES Out AES Ref AES Out Right In R Trim Analog In Left In L Trim SoundPals ADC-24 D/ESAM Mixer Page 7 ADC-24 User Guide... -
Page 14: Advanced - Multiple Analog Inputs To Digital Mixer
• Advanced — Multiple Analog Inputs to Digital Mixer In this application, ADC and DMIC SoundPals are combined to provide multiple analog inputs to a digital mixer. An analog ATR feeds an ADC, and then to the mixer via AES. -
Page 15: Adc-24 Internal Jumpers
ADC-24 Internal Jumpers This section provides information about the ADC-24’s internal jumpers and adjustments. NOTE For detailed instructions on opening and closing the ADC-24, see Appendix A, “Inside the Module.” The figure below shows the ADC-24’s internal jumper locations: Input... - Page 16 Switches 6 and 7 define the Emphasis. Function Not Indicated None 50/51 CCITT J.17 • Switch 8 determines the Channel Mode. Function Not Indicated Stereo • Switch 5 defines the Copy Mode. Function Inhibited Permitted Page 10 ADC-24 User Guide...
-
Page 17: Adc-24 Troubleshooting
• Switch 8 determines the Generation Table. Function Generation or Higher Original ADC-24 Troubleshooting The table below lists several ADC-24 problems, and provides a variety of “checklist” procedures designed to solve them. Problem Procedure • No signal at either Is power applied? Check power LED and power supply. -
Page 18: Adc-24 Specifications
Parameter Specification Dimensions 5.2W x 1.62H x 6.625D (less connectors) 13.2 x 4.1 x 16.8 cm Power 300 mA @ 6 Vdc Operating Temp. ° 10 – 50 Operating Humidity 10 – 90% RH non-condensing Page 12 ADC-24 User Guide... -
Page 19: Inside The Module
2. Carefully slide the internal circuit board and front panel assembly through the housing. Keep the case horizontal so that the BNC bushing stays with the connectors. 3. Replace, but do not tighten, the four Phillips screws in the front corners of the SoundPals module. -
Page 20: External Power
Repeat with the four rear plate corner screws. 7. Replace all Philips XLR mounting screws at the rear of the SoundPals module. 8. Replace the BNC nut and associated lock washer at the rear of the SoundPals module. CAUTION Do not over tighten the screws. -
Page 21: Power Supply Sources
120V AC, 60 Hz Stancor STAF-0797F 220V AC, 50 Hz with European wall plug (CE compliant). Elpac MI2007 95-250V AC, 47-63 Hz with IEC inlet (line cord required). Will power up to six units (CE compliant). Page 15 ADC-24 User Guide...
