Page 1: User Manual

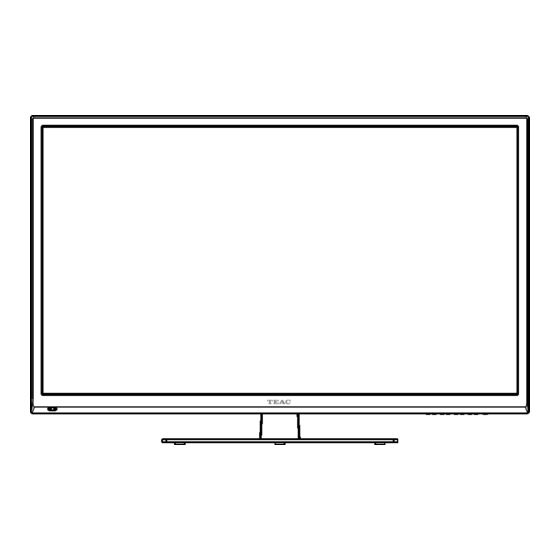

LEB4098FHD BLU-RAY COMBO LED TV USER MANUAL IMPORTANT ! WARRANTY INFORMATION INSIDE. PLEASE READ www.teac.com.au Trademark of TEAC Corporation JAPAN... - Page 2 Keep your purchase receipt to enable you to proceed quickly in the event of a Warranty Service. If you require Warranty Service, please contact the TEAC Customer Support Hotline at 1300 553 315 for assistance. Please ensure that you have the model number, serial number and purchase receipt ready when you call.
- Page 3 Authorised Service Centre for repair. In this event, proof of purchase is required to support a warranty claim. After the repair, the product will be available for collection by or return to the purchaser at a fee upon request. TEAC in- home service can be made available at a fee upon request.
-
Page 4: Table Of Contents
Contents Safety Precautions Power Supply..............................1 Installation................................2 Use and Maintenance............................3 Important Safety Instructions ..........................4-5 User Guidance Information Mounting the Stand ............................6 Accessories/Names of each part(Front View) ....................7 Names of each part(Back View) ........................8 Remote control ..............................9-10 Basic Operation Basic Operation .............................. -
Page 5: Power Supply
Power Supply DO NOT plug several devices DO NOT touch the power DO NOT use a damaged Insert the power plug fully into into the same outlet. plug with wet hands. power cord or plug or a the outlet. loose outlet. loose or improperly the outlet to overheat and start inserted power plug... -
Page 6: Installation
Installation DO NOT place containers with DO NOT place the unit where DO NOT place the unit on an unstable DO NOT use or store flammable liquids such as vases, drink cans, it is exposed to rain, excessive surface, such as a sloped table, or any or combustible materials near bottles or small metallic objects moisture or grease. -
Page 7: Use And Maintenance
Use and Maintenance Although the LED screen is made with high-precision technology and 99.99% or more of the pixels are effective, black dots may appear or bright points of light (red, blue, or green) may appear constantly on the LED screen. This is a property of the LED screen and is not a malfunction. -
Page 8: Important Safety Instructions
Important Safety Instructions power socket. Do not bend the power cord excessively.prevent the cord from being walked on or pinched by weights placed on it. - Page 9 TEAC service personnel for assistance. Servicing of this unit should be conducted by qualified and certified TEAC service personnel. The manufacturer will not be held responsible for any damage caused by any modifications done on the product without authorisation from the manufacturer’s...
-
Page 10: Mounting The Stand
Mounting the Stand 1. Take out the main unit, the stand support and the table-top stand from the carton, place the main unit with display side down on a flat surface covered by a soft cloth or towel. 2. Connect the stand support and the table-top stand, and fix them with 4 screws (ST4X10) included. -
Page 11: Accessories/Names Of Each Part(Front View)
Accessories Quick Start Guide Contact Card 2 x AA Batteries Remote Control User’s Guide * Accessories included may look different from the illustrations shown. Names of each part Front View DVD: Insert a 12cm DVD/ CD with the label side facing towards the back. -
Page 12: Names Of Each Part(Back View)
Names of each part Back View SWITCH AC POWER IN AC POWER IN: Connect to AC power supply. SWITCH: Turn on/off the power supply. VIDEO: Connect to video output terminal of external devices. L/R in: Connect to the audio output terminal of external devices.(shared with YPbPr) YPbPr: Connect to the YPbPr video output sockets of external devices. -
Page 13: Remote Control
Remote Control... -
Page 14: Remote Control
Remote Control (REC): Start recording when in DTV Mode. REPEAT: Toggle Repeat options in USB Mode. : Load/eject DVD disc. : Play/Pause playback, or toggle DTV Time Shift. : Stop playback. : Fast Rewind/Fast Forward up to 16x. : Previous/next chapter/track. : Press this button will at 1/16, 1/8, 1/4, 1/2, normal speed... -
Page 15: Basic Operation
Basic Operation The following section conveys the unit’s general operation, such as, switching the unit on, selecting the input source, and using the automated channel search command. Switching the unit on The following steps are a guide to switch the unit on: 1. - Page 16 Basic Operation Using the On Screen Display Menu The On Screen Display (OSD) menu acts as the Main Menu and aids the user in browsing through the different options/properties available on the television unit. Press the MENU button on the remote control to access the OSD menu as shown below: Main menu PICTURE SOUND...
-
Page 17: Osd Menu
OSD Menu 1. PICTURE menu Picture display settings can be altered as desired. The following options are adjustable: Picture Picture Picture Mode Standard Saturation Brightness Contrast Color Temp Standard Sharpness Saturation Green Blue Color Temp Standard Aspect Ratio Full Advanced Settings Move OK: Select MENU: Return... -
Page 18: Sound Menu
OSD Menu 2. SOUND menu General sound settings can be adjusted according to personal preference with the following options: Sound Sound Standard Sound Mode Treble Treble Bass Bass Balance Balance Surround Sound Surround Sound EQ Setting EQ Setting SPDIF SPDIF Stereo Sound Type Move... -
Page 19: Channel Menu
OSD Menu 3. CHANNEL Menu This menu selection contains scanning preferences (either automatic or manual tuning), Channel, Auto Scan, Manual Scan, Channel Edit, Signal Information. Settings can be altered for individual channels. NOTE: Some menus are available only in DTV Mode while recording is not in progress. - Page 20 OSD Menu Digital Manual Scan Press the OK button to enter the Digital Manual Scan menu. Digital Manual Scan Select a DTV channel, and press OK to start Digital Scan CH36 searching. Start Frequency 585.50 MHz Frequency: Press buttons to select Frequency: Strength Auto or enter digital numbers.
- Page 21 OSD Menu Delete: Select the channel to delete and press the RED button. A confirmation message will pop up. Choose “Yes” to confirm the deletion, or “No” to cancel. Move: Select the channel to be moved and press the BLUE button. Use the CH+/- buttons to change the channel position.
-
Page 22: Lock Menu
OSD Menu 4. LOCK menu This option allows parents to block channels and programs using a password. NOTE: The default password is 0000. If you have forgotten your current password, the master password is 8899. Please take note of this. Lock System Enter Password _ _ _ _... -
Page 23: Setup Menu
OSD Menu 5. Setup menu The option settings allows alterations to the language and regional settings. Setup Time Settings OSD Language English Audio Languages Subtitle Teletext Blue Screen HDMI CEC Control DVR Settings Move MENU: Return EXIT: Exit Description Time Settings: Clock: Use the buttons to select the position, and the... - Page 24 OSD Menu OSD Language: Select the language option for the OSD menu. Audio Languages: (can be selected in DTV mode): Allows you to select first and second audio language. Subtitle: (can be selected in DTV mode) : Allows you to select first and second subtitle language. Teletext: Adjust Teletext settings.
-
Page 25: Multimedia Operation
Multimedia Operation USB Usage Precautions Never turn the unit off or disconnect a USB Storage Device (Flash Drive) when it is being accessed. Doing so could damage the TV and the connected USB storage device. Do not use a device that has a maximum current consumption of 100 mA or more. Do not use a device that has security functions or other special functions. -
Page 26: Multimedia Operation
Multimedia Operation Basic Operation 1). Press the INPUT button on the remote control to display the input source menu and select USB with the buttons. Press the OK button to enter the Multimedia menu as shown below. 2). Press to select the type of media you want to play from the connected USB device, as follows: PHOTO, MUSIC, MOVIE and TEXT. - Page 27 Multimedia Operation To access photo, audio, video, or text files from an external drive, first choose USB Input, then select the type of media to be played to enter the folder/file navigation screen. 1. Photo To display photos, select files from the folder and press PLAY to view in full screen. The image should appear on screen as illustrated below.
- Page 28 Multimedia Operation Press to select the option on the table, and press OK to change. Press to search for music, and press OK to select. Press the EXIT button and select Back to return to the previous menu. Quick Menu: Press D.TOPMENU to enter Quick Menu. Repeat: Select the repeat mode from Repeat All, Repeat 1, Repeat None.
- Page 29 Multimedia Operation 4. Display Text To play text files (most files with the extension .txt), select a file from the folder and press PLAY. ZOOM IN ZOOM OUT Previous / Next D.MENU Press to select options on the toolbar, and press OK to change. Press 0~9 to select specific pages.
- Page 30 Multimedia Operation Supported Formats: MOVIE MPEG1/MPEG2: Up to 1080p @30F (AVI) 72x72 < Baseline resolution < 7680x4320 Progressive Mode Size PHOTO <= 1280x1024 File Size <=10MB MUSIC Sample rate:32KHz,44.1KHz,48KHz, Bit Bitrate: up to 320Kbps Special note: 1. The Media Unit can only support USB memory devices, such as hard disk drives and flash drives, and will not support multimedia devices such as mobile phones and cameras for recording purposes.
-
Page 31: Recording Operation
Recording Operation Digital Video Recording (DVR) settings (In DTV Mode only) The DVR function allows this unit to record live digital TV (DTV) programs, allowing for viewing on demand at any time. This function supports DTV program recording, Time shift and playback as described below. - Page 32 Recording Operation Recorded list Red button: Delete One program. Green button: Delete All programs. Yellow button: Replay the program. Blue button: Zoom In/Out between full screen view and preview mode. After the recording has been done, the stored programs can be viewed through a Recorded List by pressing the 'LIST' button on the remote control.
- Page 33 Ensure that no valuable information is currently stored in the hard disk, as the formatting process means that ALL DATA will be ERASED from the memory drive connected to the USB/HDD port. TEAC does not take responsibility for lost data.
-
Page 34: Schedule List
Recording Operation Schedule List Red button: Delete One scheduled program. Green button: Delete All scheduled programs. Scheduled Recording is a function which allows the user to record future programs without physically being present to initiate the recording. A schedule setup is made to mark recording dates and times of the broadcasted programs stated on the Electronic Program Guide (EPG). - Page 35 Recording Operation Electronic Program Guide (EPG) Press the EPG button to display the OSD menu as below: Details information of selected program. Program list for the current channel. Press direction buttons to navigate the lists. Once the program of choice has been highlighted, press the REC button on the remote control. This will bring you to Record Mode, where you can set the start and end time of the recording.
-
Page 36: Blu-Ray/Dvd Operation
Blu-ray/DVD Operation General Settings BASIC OPERATION FOR THE MENU 1. To access the Setup Menu, enter complete stop mode by pressing twice during playback. STOP 2. Press the D.SETUP button to display the Setup Menu. 3. Select a desired main menu with the LEFT/RIGHT buttons. - Page 37 Blu-ray/DVD Operation LANGUAGE 1. OSD: Selects the menu language used in BD/DVD Mode. 2. Menu: Selects the menu language of the disc. 3. Audio: Selects the audio language for the program. 4. Subtitle: Selects the subtitle language for the program. NOTE: The selected audio/subtitle languages will be used if the corresponding language track is provided on the disc.
- Page 38 Blu-ray/DVD Operation SECURITY 1. Change Password: Changes the password for parental control menu. 2. Parental Control: Set a video rating threshold to to password lock viewing of higher maturity ratings. 3. Country Code: Select the Country code. Note: The default password is 0000. NETWORK ·...
- Page 39 3. Select [System]>[Upgrade], then press OK. Update software via USB 1. Download the software onto a USB flash drive. from http://www.teac.com.au 2. Insert the USB flash drive to the USB1 jack of the rear panel. 3. In the SETUP menu, select [General Setting] >[System] > [Upgrade] > [USB Storage].
-
Page 40: Troubleshooting
Troubleshooting Do not use other functions that are not mentioned in this user manual. If a problem occurs with your LED TV, please take the following steps first. If you still have the problem, turn the power off and contact your dealer or an authorized service center. Action Problem Is the power plugged in? Insert the power plug. -
Page 41: Specifications
Specifications LED Panel Panel Size 40" Max. Resolution VIDEO Input Connector YPbPr AUDIO (L/R) PC AUDIO 2 The HDMI support 1.3, the HDCP support 1.1) HDMI Output Connector HEADPHONE COAX 100-240V ~ 50/60Hz Power Source Power Consumption Standby Power Consumption <... -
Page 42: Specifications
Specifications Supported Formats: MOVIE MPEG1/MPEG2: Up to 1080p @30F (AVI) 72x72 < Baseline resolution < 7680x4320 Progressive Mode Size PHOTO <= 1280x1024 File Size <=10MB MUSIC Sample rate:32KHz,44.1KHz,48KHz, Bit Bitrate: up to 320Kbps Special note: 1. The Media Unit can only support USB memory devices, such as hard disk drives and flash drives, and will not support multimedia devices such as mobile phones and cameras for recording purposes. - Page 44 TEAC CUSTOMER SUPPORT HOTLINE (TCS) 1300 553 315 Between Monday to Friday – AEST 8:30AM to 6PM...
