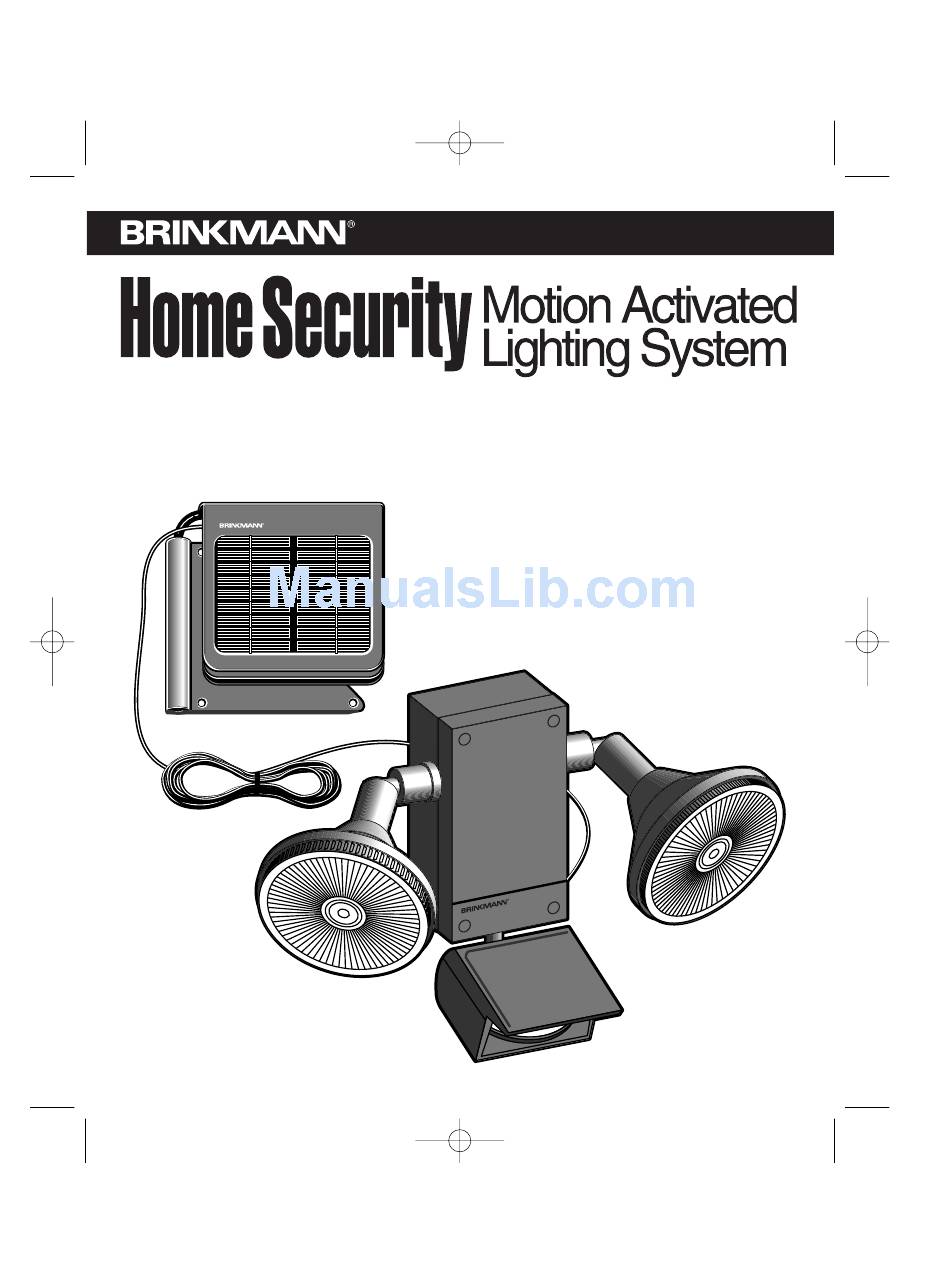

- Page 1 INSTR_821-7000-0_SL7.qxd 5/17/06 4:29 PM Page 1 MODEL SL-7 OWNER’S MANUAL ASSEMBLY AND OPERATING INSTRUCTIONS...
- Page 2 INSTR_821-7000-0_SL7.qxd 5/17/06 4:29 PM Page 2 HOW YOUR HOME SECURITY MOTION ACTIVATED LIGHTING SYSTEM WORKS The Home Security Motion Activated Lighting System is designed to turn on automatically at night when a person enters the detection zone. The light will stay on as long as the motion detector senses motion in the zone.
-
Page 3: Parts List
Home Security Main Housing Main Housing Mounting Screws (2) Solar Panel Module with Cord Solar Panel Module Mounting Screws (3) SL-7 Owner’s Manual Step 1 Select a location and attach the main housing where you want to detect persons or objects moving at night. - Page 4 INSTR_821-7000-0_SL7.qxd 5/17/06 4:29 PM Page 4 Step 3 Slide the two slots in the back of main housing onto the screws. Step 4 Select a location within 15 feet from the main housing to mount the solar panel module. The solar panel module must be mounted where it will receive FULL, DIRECT SUNLIGHT for several hours each day.
- Page 5 INSTR_821-7000-0_SL7.qxd 5/17/06 4:29 PM Page 5 Step 8 Point the two floodlights in the desired direction. You may want to adjust the floodlights after letting the unit operate for a few nights. Motion Detector Head Step 9 Position the detector head in the direction you want to cover.
-
Page 6: Testing Instructions
INSTR_821-7000-0_SL7.qxd 5/17/06 4:29 PM Page 6 TESTING INSTRUCTIONS Step 1 After installing your light, leave the switch in the “OFF” position and charge in FULL, DIRECT SUNLIGHT for THREE FULL SUNNY DAYS. Step 2 After allowing the battery to fully charge, the motion detector can be adjusted and tested. - Page 7 INSTR_821-7000-0_SL7.qxd 5/17/06 4:29 PM Page 7 Changing Bulb Bulb 1. Turn lens counterclockwise and remove. 2. Pull bulb straight out and replace with new bulb. DO NOT PLACE NEW BULB IN BRASS Lens GROMMET HOLES. 3. Replace the lens by aligning the slots with the grooves in the top housing and turning clockwise to lock in place.
-
Page 8: Troubleshooting
INSTR_821-7000-0_SL7.qxd 5/17/06 4:29 PM Page 8 It is important that the solar panel is kept free of dirt and debris. A dirty solar Cleaning panel will not allow the battery to fully charge. This will shorten the life of the battery and cause the light to malfunction. - Page 9 INSTR_821-7000-0_SL7.qxd 5/17/06 4:29 PM Page 9 Troubleshooting & b. If the weather has been cloudy or overcast during the day, the battery will not be charged for operation at night. The light must Important Information have direct sunlight every day to fully charge the battery. If the light (continued) does not receive enough sunlight one day, it will recharge the next sunny day and resume normal operation.
- Page 10 INSTR_821-7000-0_SL7.qxd 5/17/06 4:29 PM Page 10 TEMPLATE Screw Hole Screw Hole...
- Page 11 INSTR_821-7000-0_SL7.qxd 5/17/06 4:29 PM Page 11 HOME SECURITY ACCESSORIES For Visa/MasterCard orders, please call 800-468-5252, Monday through Friday, 8:30 AM - 5:00 PM Central Standard Time. 100-0057-0 Replacement Bulb 070-6001-0 SL-7 Replacement Battery 112-0010-0 15 ft. Extension Cord...
-
Page 12: One-Year Limited Warranty
INSTR_821-7000-0_SL7.qxd 5/17/06 4:29 PM Page 12 © 1996 The Brinkmann Corporation Dallas, TX 75244 www.brinkmann.net ONE YEAR LIMITED WARRANTY For one year from date of purchase, The Brinkmann Corporation warrants the Home Security Motion Activated Lighting System against defects due to workmanship or materials to the original purchaser. The Brinkmann Corporation’s obligations under this warranty are limited to the following guidelines: •...
