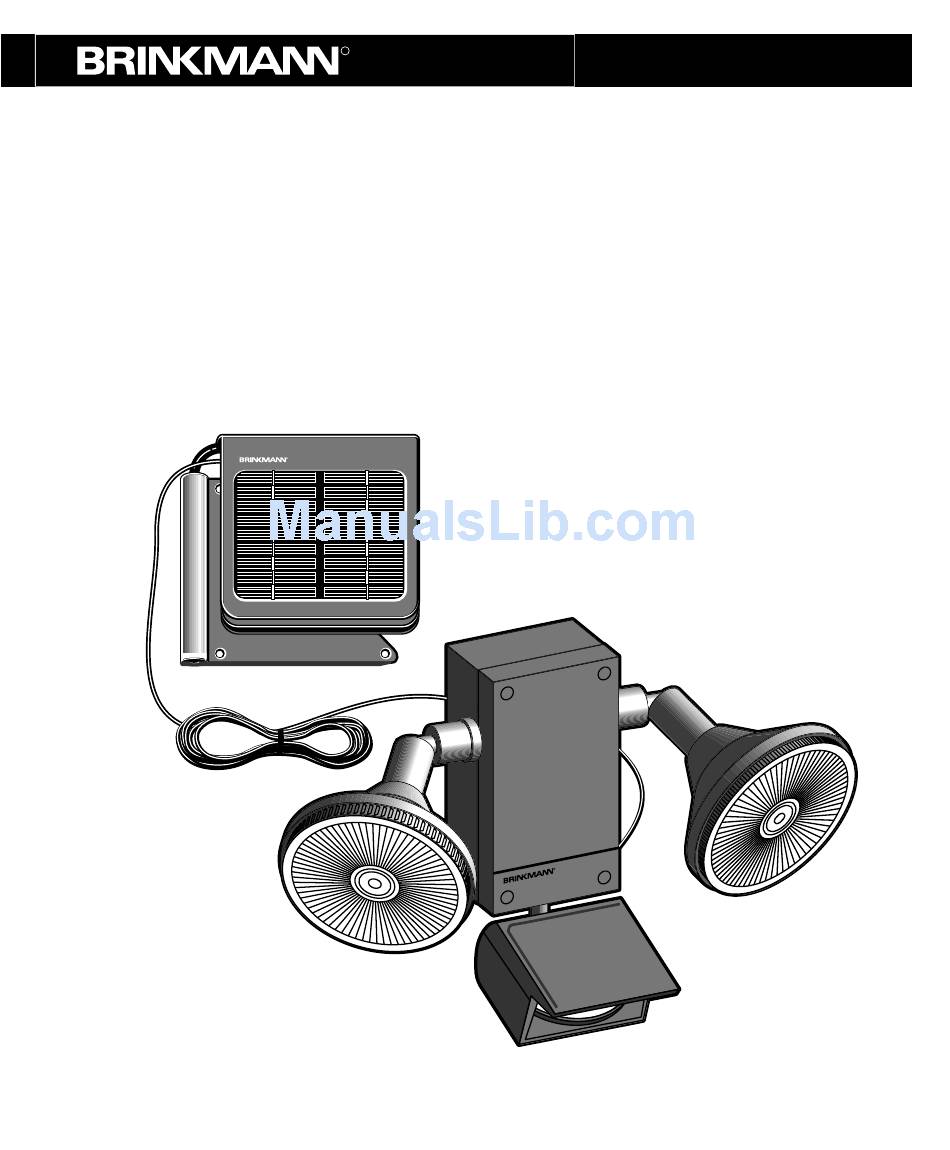

MODEL SL-7 OWNER'S MANUAL
ASSEMBLY AND OPERATING INSTRUCTIONS

Advertisement

loading
Need help?

Need help?

Do you have a question about the SL-7 and is the answer not in the manual?

Questions and answers

Summary of Contents for Brinkmann SL-7

  • Page 1 MODEL SL-7 OWNER’S MANUAL ASSEMBLY AND OPERATING INSTRUCTIONS...
  • Page 2 HOW YOUR HOME SECURITY MOTION ACTIVATED LIGHTING SYSTEM WORKS The Home Security Motion Activated Lighting System is designed to turn on automatically at night when a person enters the detection zone. The light will stay on as long as the motion detector senses motion in the zone.
  • Page 3: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Inspect contents of the box to ensure all parts are included and undamaged. A Phillips screwdriver will be required. PARTS LIST: Home Security Main Housing Main Housing Mounting Screws (2) Solar Panel Module with Cord Solar Panel Module Mounting Screws (3) SL-7 Owner’s Manual Step 1 Select a location and attach the main...
  • Page 4 Step 3 Slide the two slots in the back of main housing onto the screws. Step 4 Select a location within 15 feet from the main housing to mount the solar panel module. The solar panel module must be mounted where it will receive full, direct sunlight for several hours each day.
  • Page 5 Step 8 Point the two floodlights in the desired direction. You may want to adjust the floodlights after letting the unit operate for a few nights. Motion Detector Head Step 9 Position the detector head in the direction you want to cover. Never aim the motion detector head directly at the sun or above a 90°...
  • Page 6: Testing Instructions

    TESTING INSTRUCTIONS Step 1 After installing your light, leave the switch in the “OFF” position and charge in full, direct sunlight for THREE FULL SUNNY DAYS. Step 2 After allowing the battery to fully charge, the motion detector can be adjusted and tested.
  • Page 7: Changing Batteries

    Changing Bulb 1. Turn lens counterclockwise and remove. Bulb 2. Pull bulb straight out and replace with new bulb. DO NOT PLACE NEW BULB IN BRASS GROMMET HOLES. Lens 3. Replace the lens by aligning the slots with the grooves in the top housing and turning clock- wise to lock in place.
  • Page 8 Cleaning It is important that the solar panel is kept free of dirt and debris. A dirty solar panel will not allow the battery to fully charge. This will shorten the life of the battery and cause the light to malfunction. Clean regularly with a dampened cloth or paper towel.
  • Page 9 DAYS. Then remove the switch label cate a dying battery that requires replacement. Replacement battery and slide the switch to the “AUTO” may be purchased from The Brinkmann Corporation Customer Ser- position. The light will turn on auto- vice Department by calling 1-800-468-5252.
  • Page 10 TEMPLATE Screw Hole Screw Hole...
  • Page 11 140-6007-0 2/96...
  • Page 12: One Year Limited Warranty

    Warranty service is limited to repair or replacement or solar security lights which prove defective under normal use and which upon examination shall indicate to Brinkmann’s satisfaction, they are defective. If Brinkmann confirms the defect and approves the claim, Brinkmann will elect to repair or replace the solar security light as covered by the terms of this warranty.
