Specifications
Overall Size ...................... 30" L x 21" W x 35" H
Tub Depth ............................................. 10" Deep
Maximum Liquid Level ......10-Gallons or 5" Deep
Minimum Liquid Level ........ 6-Gallons or 3" Deep
Nozzle Diameter ....................................... 5.5mm
Pump Motor ....................... 110V, 0.7 Amp, 60 Hz
Pump Output .......................................... 50 GPH
Net Weight .................................................57 lbs.
Inventory (figure 1)
Work Basket ...................................................... 1
Pump Box .......................................................... 1
Work Shelf ......................................................... 1
Tub ................................................................... 1
Shelf .................................................................. 1
Legs ................................................................... 4
Bolt Bag ............................................................. 1
—Phillips Head Screws M6-1 X 12 (Legs) 25
—Hex Nuts M6-1 (Legs) ........................... 25
—Lock Washers 6mm (Legs) ................... 25
—Phillips Head Screws M4-.7 X 10
(Switch Box) ............................................ 2
—Hex Nuts M4-.7 (Switch Box) .................. 2
—Lock Washers 4mm (Switch Box) ........... 2
WARNING: NO PORTION Of THIS MANUAL MAy bE REPRODUCED IN ANy SHAPE
OR fORM WITHOUT THE WRITTEN APPROvAL Of GRIzzLy INDUSTRIAL, INC.
Qty
COPyriGHT © AUGUST, 2009 By GrizzLy iNDUSTriAL, iNC.
#Cr12088 PriNTeD iN CHiNA
MODEL G4013
20 GALLON PARTS
WASHER
INSTRUCTIONS
If you need help with your new item, call our Tech
Support at: (570) 546-9663.
Work
Pump Box
Basket
Work
Shelf
Shelf

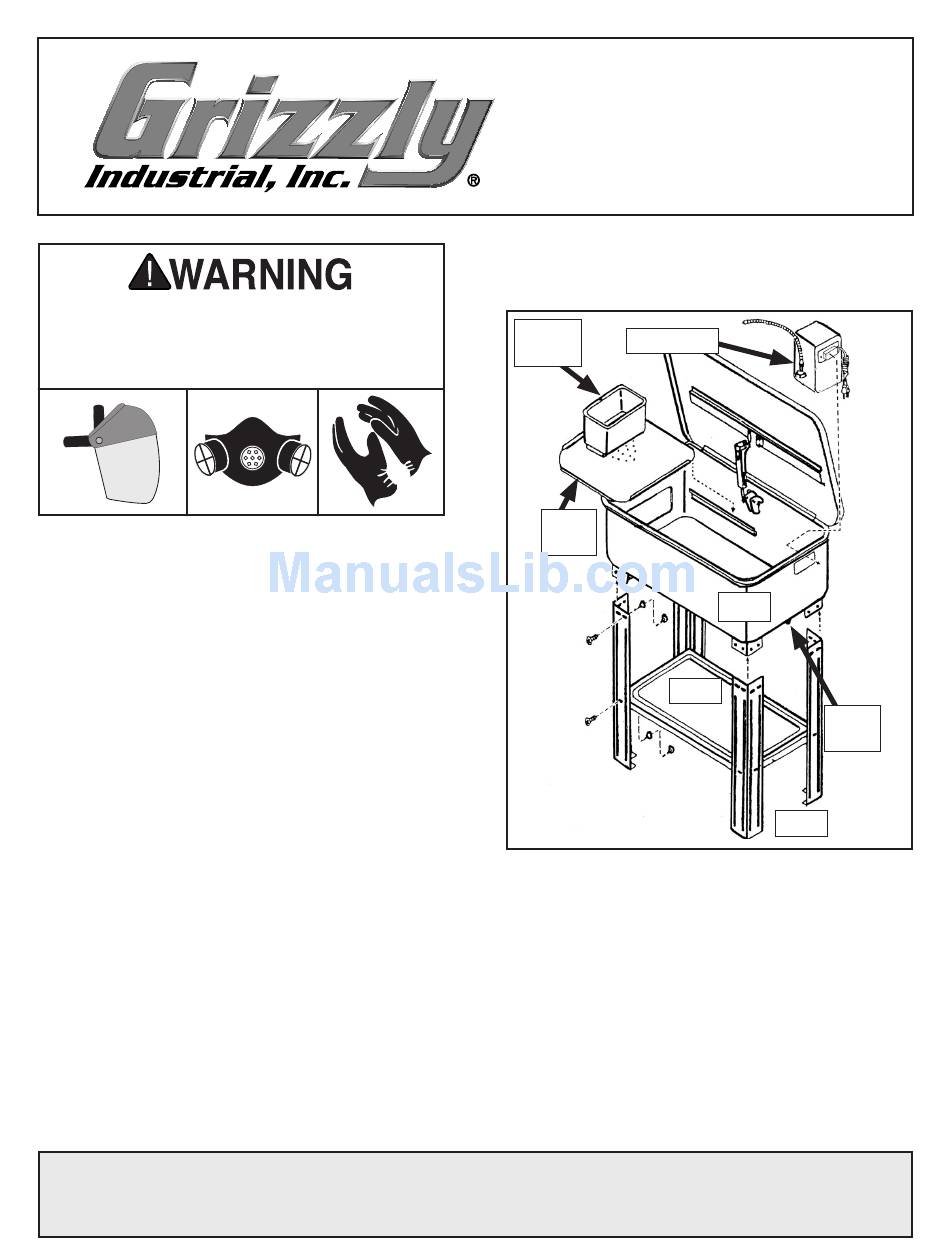

figure 1. Assembly diagram.
Power Supply Circuit Requirements
Only connect this parts washer to a power supply
circuit that is protected with a GFCi (Ground Fault
Circuit interrupt) device. If you are unsure about
the wiring codes in your area or you plan to
connect your machine to a shared circuit, con-
sult a qualified electrician.
Power Supply Voltage ...........................110 Volts
Minimum Circuit Size ............................. 10 Amps
Tub
Drain
Plug
Legs
