Introduction
The Model T34310 40-Gallon Parts Washer fea-
tures all steel construction and a 43
wide x 11" deep cleaning tub. This machine also
features a storage shelf for additional accessories.

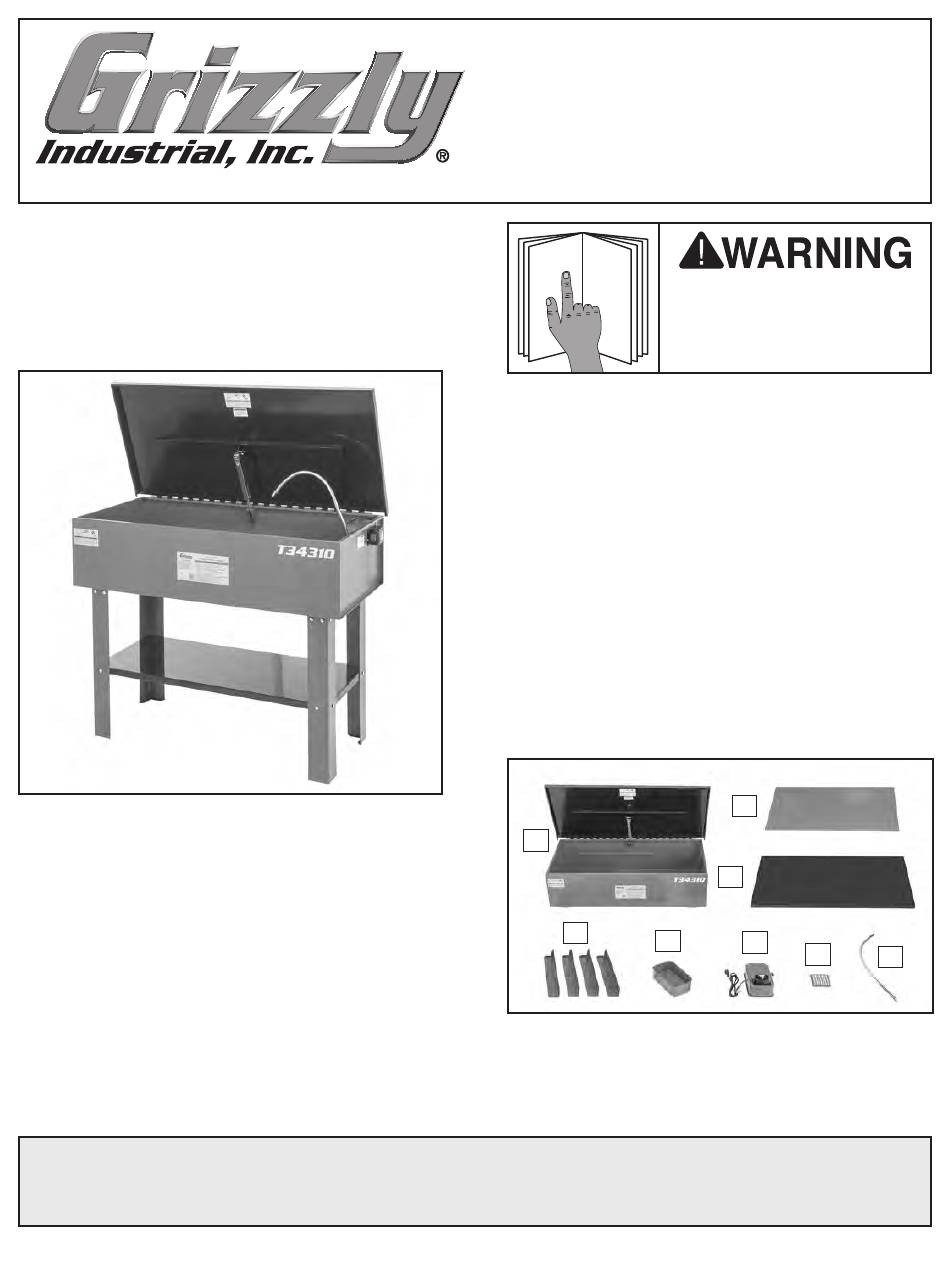

Figure 1. Model T34310 40-Gallon Parts
Washer.
Specifications
Overall Size ................43
Tub Depth ........................................................11"
Minimum Cleaning Fluid Level ........... 15 Gallons
Maximum Cleaning Fluid Level .......... 24 Gallons
Nozzle Diameter ....................................... 5.4mm
Pump Motor ..........43W, 120V, 1-Ph, 60Hz 0.36A
Pump Output ............................................ 5 GPM
Net Weight .................................................93 lbs.
