Connecting

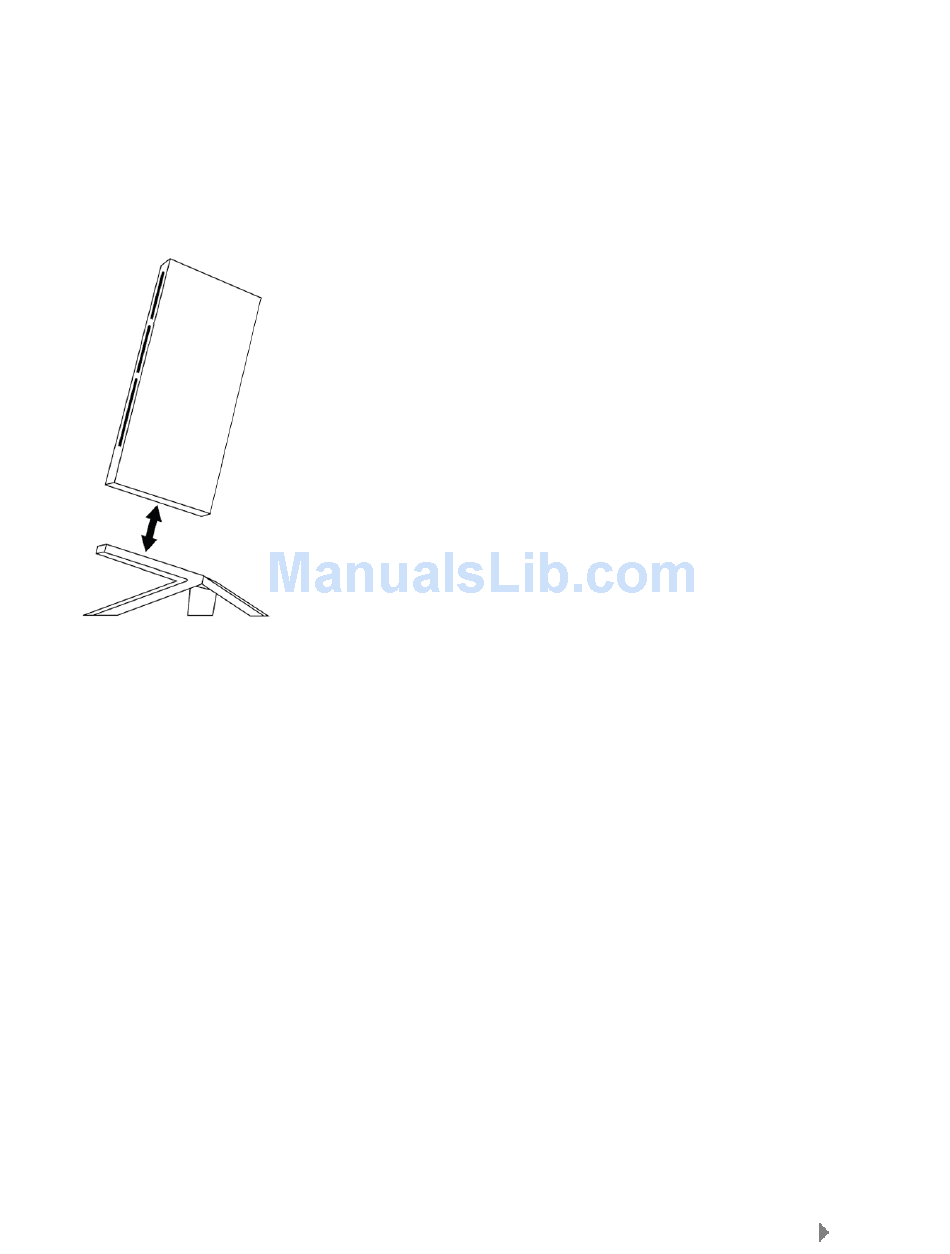

The ImageMate Reader/Writer can be used with and without the metal stand. To attach the
ImageMate USB 3.0 Reader/Writer, put the stand on a flat surface and position the ImageMate USB
3.0 Reader/Writer on the stand as illustrated. To detach the ImageMate USB 3.0 Reader/Writer, hold
the stand down with one hand and pull up the reader with the other hand.
Using the ImageMate USB 3.0 Reader/ Writer

Inserting Memory Card

To install a memory card into the ImageMate® USB 3.0 Reader/Writer's card slot, insert the connector
end of the memory card with the label facing to the right (when placed on the stand).
Do NOT force the memory card into the slot.

LED Activity

Each memory card slot has a blue LED:
• The LED turns on when a memory card is properly inserted
• The LED blinks when data is transferred from or to the memory card
• The LED is OFF when no card is inserted or inserted card is NOT recognized
If the LED is NOT on, check to make sure the ImageMate USB 3.0 Reader/Writer is connected and the
card is inserted properly.
NEVER remove the card when the LED is FLASHING.
