HD-SDeye
Full HD HD-SDI Camera
KP-HD20A
Operation manual
Thank you for procuring this fine Hitachi Kokusai Electric color camera.
Before using the camera, please read this operation manual carefully and
keep this manual on file for ready reference in the future.
Hitachi Kokusai Electric Inc.
E400359115
Advertisement
Table of Contents
Related Manuals for Hitachi KP-HD20A
Summary of Contents for Hitachi KP-HD20A

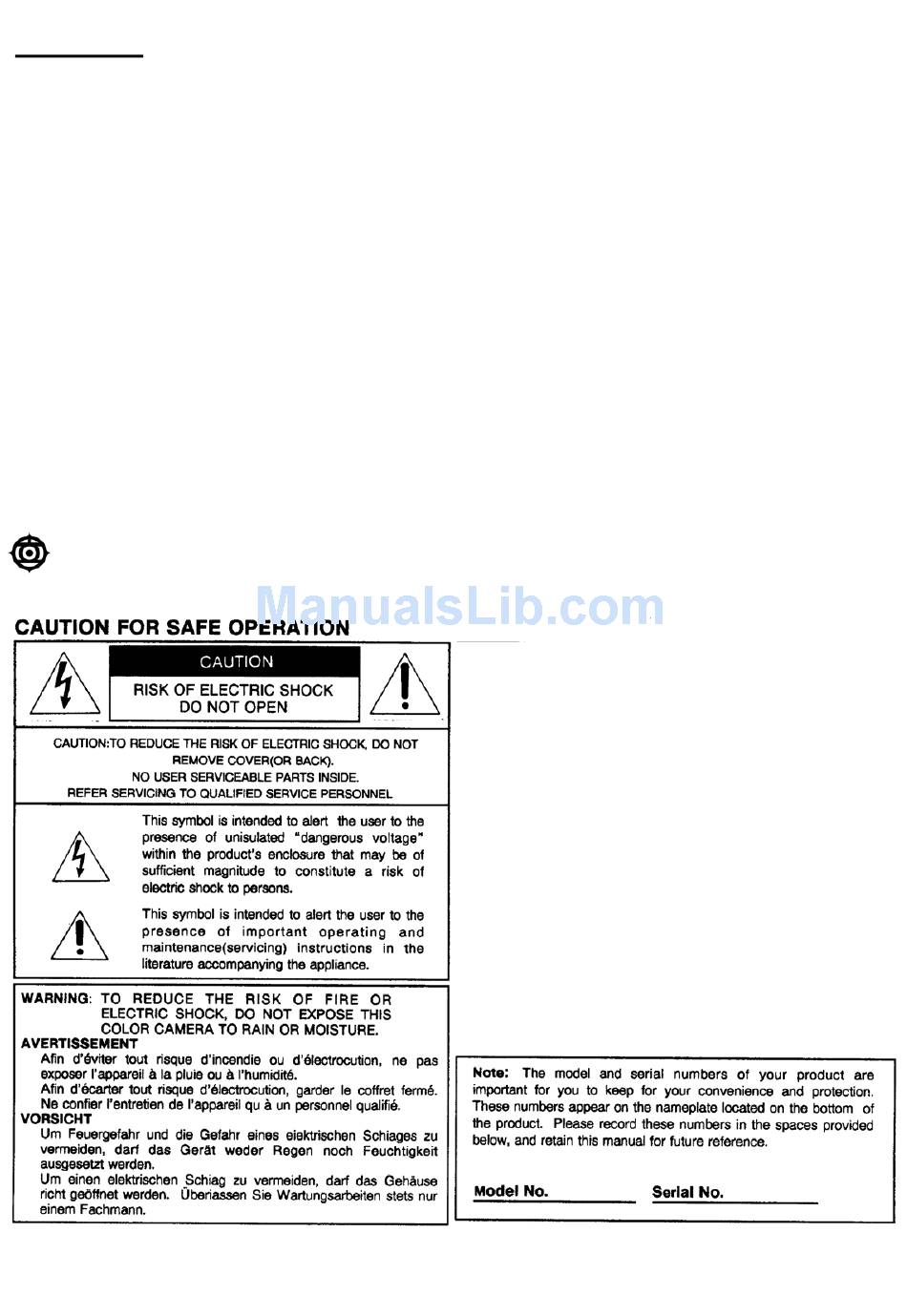

- Page 1 HD-SDeye Full HD HD-SDI Camera KP-HD20A Operation manual Thank you for procuring this fine Hitachi Kokusai Electric color camera. Before using the camera, please read this operation manual carefully and keep this manual on file for ready reference in the future.
-
Page 5: Table Of Contents
Lens·············································· 4-5 Setting ·········································· 6-10 Specifications································ 11 Introduction Features Hitachi’s camera KP-HD20A is HD-SDI interface one High definition ・They are high definition and wide viewing angle because which support Full HD. it is full HD. ・Low delay HD video signal and long-distance transmission... -
Page 6: Name And Function
Name and function Attachment of C mount adapter Attachment of tripod adapter LENS mount ring Tripode adaptor installation screw hole C mount adapter (optional accessories) Lens mount fixing screw Adjust the flange back Refer to page 4 (Flange back adjustment) LENS connector [LENS] Connect the lens cable, when using automatic iris... -
Page 7: Connections
Connections Example of connection Supported formats RGB monitor SXGA 60p RGB cable AC100～230V HD-SDI output HD-SDeye color camera HD-VLC output KP-HD20A MU-HD101 back Coaxial cable Refer to cable length DC12V standard Coaxial superposition DVI-D cable Coaxial cable Supported formats 1080 59.94ｉ... - Page 8 Note ring. KP-HD20A camera has strucuture that user can change lenses. 2) Set the lens to maximum wide angle and pickup the same Therefore dust may adhere to the CCD or the optical filter unit camera subject.
- Page 9 Note If an auto iris lens is used and the object distance is less than few meters, due to focus length of lens, slight blurring can occur at certain iris positions. In such case, please refer to page 9[Lens open setting] and set the lens to full open.
-
Page 10: Setting
Setting Setup by the operating switch in a back part Up(U) Down(D) Right(R) Left(L) button： Movement of a cursor Center (Set) button: Determination of a selection item MENU buttons Composition of camera setting menu MAIN MENU [FILE1 ] GAIN MENU LIGHT CONT. -
Page 11: Main Menu
MAIN MENU LIGHT CONT MENU 1) Press the Set button for at least 2 seconds to display the Main menu on the monitor screen. ……Seting scene files setting ……Exposure control mode ……Shutter speed setting ……Video level adjustment ……Automatic level conrol gate setting ……Light control menu ……AGC setting menu ……WDR function setting... -
Page 12: Sub Menu
GAIN MENU SUB MENU ……Chroma level setting ……Gain mode setting ……Detail correction setting …… Fixed amplification setting ……Black level setting …… Maximum amplification setting ……Gamma correction setting ……KNEE mode setting ……KNEE function setting ……Masking mode setting ……Masking function setting (1) CHROMA： Chroma level setting Gain setting -128 to 0 to 50... -
Page 13: Lens
LENS LENS ……Lens type setting LENS TYPE :DC ……Iris gain setting (SAT) IRIS GAIN : ……Lens open setting LENS OPEN :OFF (HUE) (7) INITALIZE：Initializing in the factory-shipments state for the current scene file. (1) LENS TYPE:DC type or VIDEO type The following message is show after INITIALIZE VIDEO : B/W MODE AUTO does not operate at the time of AGC command execution. -
Page 14: Setting
HD-SDI／HD-VLC mode change TV FORMAT MENU Operation：Select TV FORMAT by Up (Down) button, and Button operation at a camera start-up press Right button. (1) Starting in HD-SDI mode A power supply is started pushing an Up button. (2) Starting in HD-VLC mode ……1080i 59.94Hz ……1080i 50Hz A power supply is started pushing a Right button. -
Page 15: Specifications
Specifications Imaging device 1/3” Progressive Scan MOS Total pixels 2010(H)x1108(V) 2.2M pixels Effective pixels 1944(H)x1092(V) 2.1M pixels Sync system Internal Video output HD-SDI / Analog CVBS Video format HD-SDI: 1080i 59.94/ 50, 1080P 29.97/ 25 CVBS: NTSC/ PAL Transmission distance HD-SDI Std mode: max100m (5C-FB 75ohm) HD-VLC mode: max 300m (5C-2V 75ohm/ Exclusive multiunit MU-HD101 use) *mode selectable...
