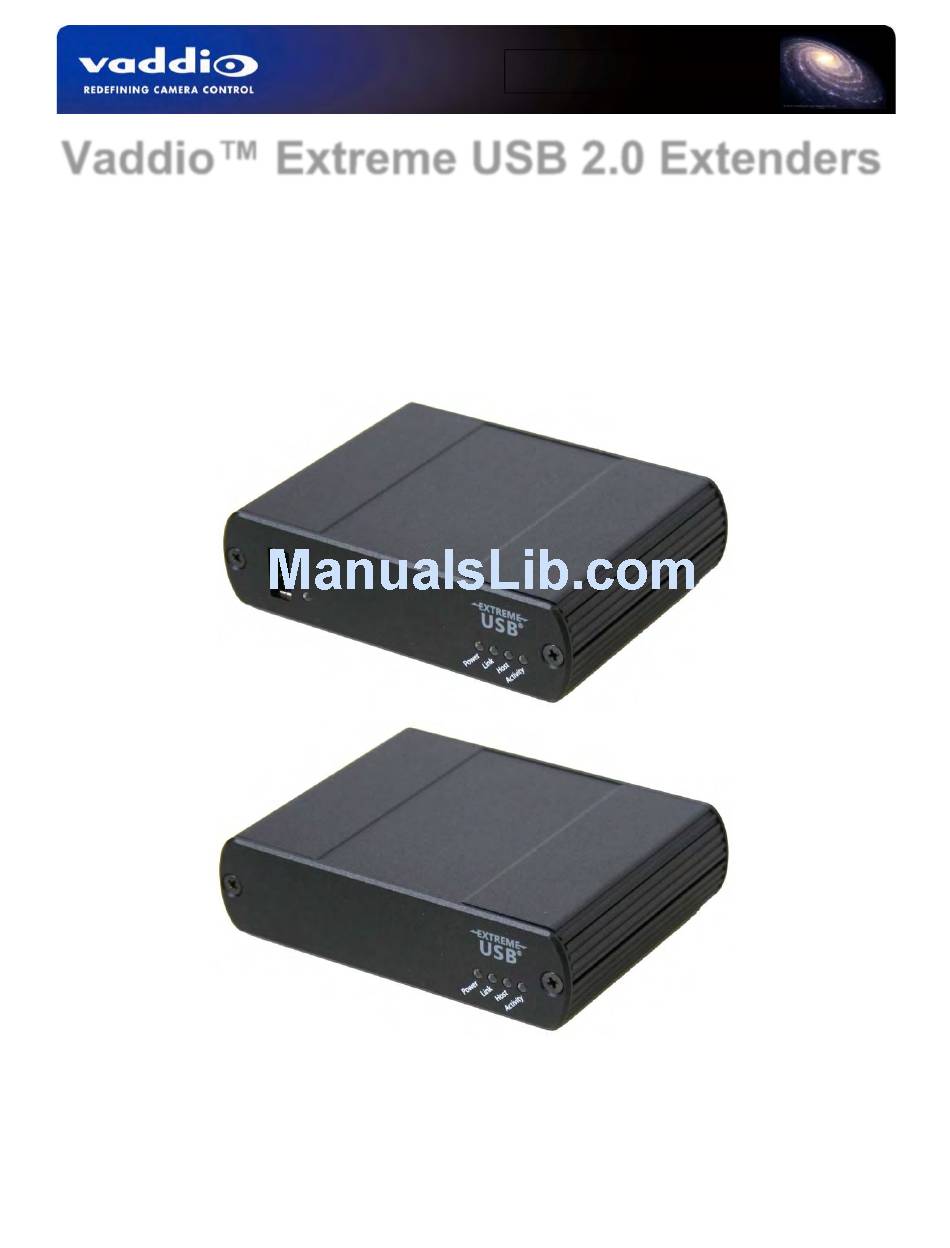

- Page 1 Vaddio™ Extreme USB 2.0 Extenders Part Numbers: 999-1005-022 - North America 999-1005-122 - International Extreme USB 2.0 Extender TX Extreme USB 2.0 Extender RX © 2012 Vaddio - All Rights Reserved. Extreme USB 2.0 Extenders - Document Number 342-0468 Rev B...
-
Page 2: Table Of Contents
Extreme USB 2.0 Extenders Table of Contents Overview ..................................3 Intended Use: ................................. 3 Important Safeguards: ............................3 Save These Instructions: ............................3 Unpacking .................................. 4 Extreme USB Extenders (North America) 999-1005-022 ..................4 ... -
Page 3: Overview
Read and understand all instructions before using. Do not operate any device if it has been dropped or damaged. In this case, a Vaddio technician must examine the product before operating. To reduce the risk of electric shock, do not immerse in water or other liquids and avoid extremely humid conditions. Do not connect Ethernet or Power over Ethernet (PoE) cables directly to the RJ-45 ports on the device as damage may result. -
Page 4: Unpacking
Extreme USB 2.0 Extenders NPACKING All the components within the shipping box are packaged as described in the sections below. Carefully remove all parts included in the packaging. Extreme USB Extenders (North America) 999-1005-022 Unpack and identify the following parts ... -
Page 5: Anatomy Of The Extreme Usb 2.0 Extenders
Orange when the TX unit detects an overcurrent condition and the attached USB device attempts to draw more than the 500mA current. 3) Power LED (Vaddio Blue): LED turns blue when power is supplied and goes OFF when no power is available. -
Page 6: Diagram: Front Panel Of Extreme Usb 2.0 Rx Unit
➌ ➊ ➍ 1) Power LED (Vaddio Blue): LED turns blue when power is supplied and goes OFF when no power is available. 2) Link LED (Green): Indicates a valid Extreme USB link is established between the RX and TX over CAT-5 cabling. -
Page 7: Installation Instructions
Extreme USB 2.0 Extenders NSTALLATION NSTRUCTIONS Step 1: Before installing the Extreme USB 2.0 Extenders: Determine where the computer is going to be located. Determine the location of the USB device. To ensure proper operation it is recommended that only CAT-5 or better, Unshielded Twisted Pair (UTP) cabling be used to connect the RX unit to the TX unit. -
Page 8: Diagram: Basic Connectivity Of The Extreme Usb 2.0 Extenders
Diagram: Basic Connectivity of the Extreme USB 2.0 Extenders Vaddio HD-USB PTZ Camera with Local Power for the camera and the Extreme USB 2.0 TX unit. A CAT-5 cable run from the TX extender (remote side) to the RX extender located at the Host PC to extends USB 2.0 video up to 100m (328.1’). -
Page 9: Specifications
Extreme USB 2.0 Extenders PECIFICATIONS Extreme USB 2.0 Extenders Part Numbers 999-1005-022 North America 999-1005-122 International Range 100m (330ft) over CAT-5 (or better) cable USB device support High-speed devices (480 Mb/s) (USB 2.0) Full speed devices (12 Mb/s) (USB 2.0 &... -
Page 10: Compliance And Ce Declaration Of Conformity
Extreme USB 2.0 Extenders CE D Extreme USB 2.0 Extenders OMPLIANCE AND ECLARATION OF ONFORMITY Compliance testing was performed to the following regulations: FCC Part 15, Subpart B Class B ICES-003 ISSUE 4, 2004 Class B EN55022 A1 2007 Class B ... -
Page 11: Warranty Information
Vaddio Customer Service: Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty and is found to be defective. If the product is out of warranty, Vaddio will test then repair the product or products. The cost of parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair. - Page 12 ©2012 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change without notice. Vaddio and ClearVIEW are trademarks of Vaddio. All other trademarks are property of their respective owners.
