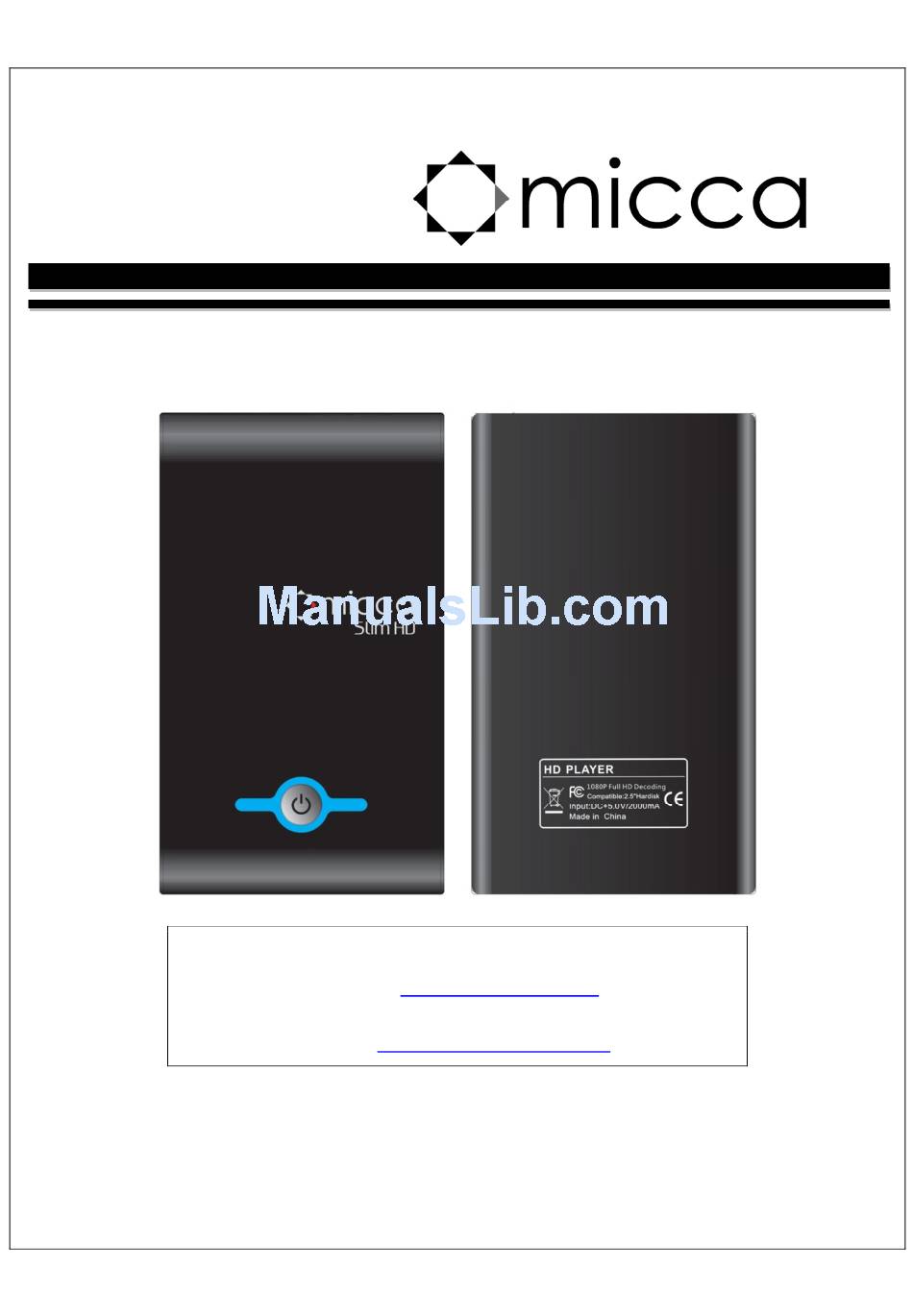

Micca Slim-HD User's Manual

Thank you for purchasing a Micca product. Should you need any

assistance, please contact our technical support before returning the

product to the retailer. Email

support@miccastore.com

Product information, firmware updates, and common questions and

answers can be found at:

http://content.miccastore.com/

This manual may not be reproduced in whole or in part without

permission for any purpose other than personal use.

Table of Contents

Need help?

Do you have a question about the Slim-HD and is the answer not in the manual?

Questions and answers

Summary of Contents for Micca Slim-HD

Page 1 Micca Slim-HD User’s Manual Thank you for purchasing a Micca product. Should you need any assistance, please contact our technical support before returning the product to the retailer. Email support@miccastore.com Product information, firmware updates, and common questions and answers can be found at: http://content.miccastore.com/...
Page 2 Turn off the power when the device will not be used. Do not place heavy objects on top of the player. Do not use strong solvents to clean the surface of the player such as alcohol, benzene, or thinner. Copyright © 2009-2012 Micca, LTD. All rights reserved.
Page 3: General Introduction
General Introduction Thank you for purchasing a Micca product. The Micca Slim-HD is a portable 1080p Full-HD digital media player. It is capable of playing digital videos, music and pictures stored on an internal hard drive or from SD/SDHC flash cards and USB 2.0 compliant storage devices such as USB drives and portable hard disk drives.
Page 4: Features And Specifications
Features and Specifications The Micca Slim-HD is a powerful digital media player, with the ability to decode high bit rate 1080p Full-HD videos. While actual performance can vary depending on the media file, this table of specifications is a summary of the Micca Slim-HD’s capabilities.
Page 5: Hard Disk Drive Installation
III. Hard Disk Drive Installation The Micca Slim-HD has an integrated Serial ATA hard disk drive interface that is compatible with SATA 2.5-inch internal hard disk drives up to 9.5mm in height. Proper hard disk drive installation is critical the player’s proper and reliable function. For best compatibility, use 5400RPM drives by Western Digital, Toshiba, Hitachi, or Samsung.
Page 7 It does not indicate whether the player is on or off. B. USB to Computer The supplied USB cable can be used to connect the Micca Slim-HD to a computer and function as an external hard disk drive. No additional software or drivers are needed for the Micca Slim-HD to be recognized by the computer.
Page 8: Hdmi Output
Yellow Composite Video The Micca Slim-HD must be set to NTSC or PAL Composite mode for the analog AV output to function. If there is no picture or the picture is distorted after connecting the AV Output, press the <AV> button on the remote to toggle between NTSC and PAL.
Page 9 Micca Slim-HD Startup After powering on, the Micca Slim-HD displays the Home screen. The Home screen presents five icons for access to different types of media files or settings: Files Browse and play all compatible file types. Music Browse and playback compatible audio files.
Page 10 6. To play a movie, highlight the movie and press <OK>. NOTE: Only files with compatible video file extensions MKV, AVI, TS/TP, MP4/M4V, MOV, VOB, PMP, RM/RMVB, MPG, M2TS, and WMV are visible in the file/folder Copyright © 2009-2012 Micca, LTD. All rights reserved.
Page 11 Changes video playback sequence between Repeat All, Repeat One, Random. AUDIO Change the audio track, if multiple audio tracks are available. SUBTITLE Turns subtitles on or off. Use the OSD menu to change subtitle track. VOLUME Adjust the audio volume. Copyright © 2009-2012 Micca, LTD. All rights reserved.
Page 12 Change the playback sequence between Repeat One, Repeat All, Sequential, Random, Only Once. Enable or disable subtitle display. Enable Subtitle Change the subtitle track being displayed. Color Change the subtitle text color between White, Gray, Red, Green, Cyan, Magenta, Yellow. Copyright © 2009-2012 Micca, LTD. All rights reserved.
Page 13: Aspect Ratio
Screen C. Subtitles The Slim-HD supports subtitle tracks embedded in video files or as external subtitle files. When a video has both embedded and external subtitle files, the external subtitles will take precedence. When using external subtitle files, be sure to place the subtitle file in...
Page 14 UTF8 encoding. To change to a different encoding, open the OSD menu and change the Subtitle codec field to the desired value and press <OK>. Copyright © 2009-2012 Micca, LTD. All rights reserved.
Page 15: Playing Music
5. To browse thin a folder, highlight the folder and press <OK>. To back out of a folder, press the <EXIT> on the remote. 6. To play a music file, highlight the file and press <OK>. Copyright © 2009-2012 Micca, LTD. All rights reserved.
Page 16 APE are visible in the file/folder directory. Audio files with incompatible file extensions will not be visible. Audio files with compatible file extensions but incompatible codec will generate an error when full screen playback is attempted. Copyright © 2009-2012 Micca, LTD. All rights reserved.
Page 17 Sequential, Random, Only Once. EQ Mode Change the equalizer preset for music playback. Various presets are available for different sound effects. Lyric Change the color of the lyrics currently sung. Focus Color Copyright © 2009-2012 Micca, LTD. All rights reserved.
Page 18 Lyrics Change the color of the lyrics not currently sung. Unfocus Color Lyric Play Change the lyric display stile between Karaoke, or Line Roll. Mode Copyright © 2009-2012 Micca, LTD. All rights reserved.
Page 19: Viewing Photos
5. To browse thin a folder, highlight the folder and press <OK>. To back out of a folder, press the <EXIT> on the remote. 6. To view a photo full screen, highlight the file and press <OK>. Copyright © 2009-2012 Micca, LTD. All rights reserved.
Page 20 ROTATE Rotate the current photo. NOTE: Only files with compatible photo extensions are visible JPG, BMP, GIF, and PNG in the file/folder directory. Photos with incompatible file extensions will not be visible. Copyright © 2009-2012 Micca, LTD. All rights reserved.
Page 21 Description Switch Change the transition effect when going from one photo to the next Mode Play Change the time delay between photos. Interval Background Turn background music playback on or off. Music Copyright © 2009-2012 Micca, LTD. All rights reserved.
Page 22 IX. Settings The setting menu contains numerous configuration parameters that control the behavior of the Micca Slim-HD during use. Press the <SETUP> button on the remote to access the Settings at any time. [Language] Sets the operating language. Available values: English, Simplified Chinese, Traditional Chinese, Japanese, Korean, German, Spanish, French, Italian, Portuguese, Dutch, Russian, Polish, Turkish, Czech.
Page 23 When selected, resets all settings back to factory default [System Information] When selected, displays the current firmware version **Firmware Updates – When available, firmware updates will be posted at http://content.miccastore.com and will include installation instructions. Copyright © 2009-2012 Micca, LTD. All rights reserved.
Page 24: Troubleshooting
MBR partition table and uses NTFS file system. It is recommended to use newer 5400RPM drives made by Western Digital, Toshiba, Hitachi, or Samsung for best compatibility. Copyright © 2009-2012 Micca, LTD. All rights reserved.
Page 25 Information in this manual is believed to be accurate and reliable but Micca Ltd assumes no responsibility for its use nor for any infringement of patents or other rights of third parties which may result from the use of this manual or the product.
