BUBBA SERVER
Users Manual
Please note:
This manual always refers to the latest firmware version.
Press "update" in the web administration interface.
Copyright © 2008 Excito
v. 1.32. Optimized for printing on size A5 paper

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BUBBA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Excito BUBBA

Summary of Contents for Excito BUBBA

  • Page 1 BUBBA SERVER Users Manual Please note: This manual always refers to the latest firmware version. Press “update” in the web administration interface. Copyright © 2008 Excito v. 1.32. Optimized for printing on size A5 paper...
  • Page 2 To shut down, keep the button pressed for five seconds. The front light will blink while shutting down, and turn off when BUBBA is ready to be disconnected. Never remove the power while the LED is lit or blinking!

  • Page 3: Table Of Contents

    9.2. READING EMAILS     9.3. SENDING EMAILS     9.4. THE FETCHMAIL SERVICE     REACHING BUBBA FROM OUTSIDE     10.1. PASSING TRAFFIC THROUGH YOUR FIREWALL     10.2. EXTERNAL IP ADDRESS     10.3. PERSONAL DOMAIN NAME  ...
  • Page 4 12.2. PERSONAL DATA AND EMAIL ON BUBBA     INSTALLING/REINSTALLING SOFTWARE     GETTING INSIDE YOUR BUBBA     14.1.     14.2. INSTALLING OTHER APPLICATIONS     14.3. CUSTOMIZING THE WEB INTERFACE     14.4. INSTALLING A DISK  ...

  • Page 5: Features

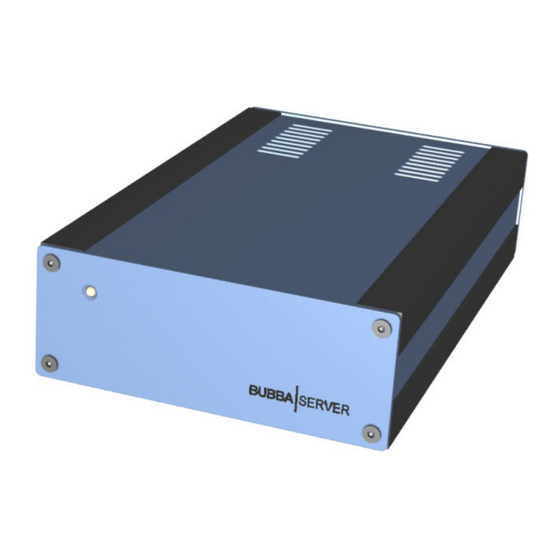

    1. FEATURES BUBBA server is a miniature server, primarily for use at home or in a small business. Nonetheless, BUBBA loaded with functionality, which makes BUBBA very versatile: • Use BUBBA as a home file server, allowing you to reach all your files from work or school.

  • Page 6: Installation

    If you reach Bubba’s default page now, you are connected, and don’t need to read further in this chapter. If not, continue with: 2. Connect your PC directly to your BUBBA via a crossover network cable.
  • Page 7 This opens the Internet Protocol (TCP/IP) Properties window. h) In the General tab, write down your old IP address, Subnet mask and default gateway. i) Change these fields to: IP address: 192.168.0.1 Subnet mask: 255.255.255.0 Default gateway: 192.168.0.1 Copyright © 2008 Excito...
  • Page 8 8. In the ‘IP’ field, change from ‘192.168.0.242’ to something beginning with the same three parts as your original IP address. I.e. if your PC had the IP 192.168.1.10, a suitable IP for BUBBA would be 192.168.1.242. 9. Press ‘Update’. Note that you will now loose contact with BUBBA, this is fully normal.
  • Page 9 8. In the ‘IP’ field, change from ‘192.168.0.242’ to something beginning with the same three parts as your original IP address. I.e. if your PC had the IP 192.168.1.10, a suitable IP for BUBBA would be 192.168.1.242. 9. Press ‘Update’. Note that you will now loose contact with BUBBA, this is fully normal.
  • Page 10 Linux 1. You need to find out what IP address your Bubba has obtained. Open a terminal window, and type: ‘nmblookup bubba’. BUBBA’s IP address will be returned. 2. Open a web browser, and type that IP address in the address field and press enter.
  • Page 11 MAC (for Linux, see the instructions below). If BUBBA can’t find a DHCP server on your LAN, it takes the IP address 192.168.0.242. This is the best guess, since home networks often begin with 192.168.0. If the other devices on the network do begin with 192.168.0, you won’t be in trouble either,...

  • Page 12: Administrator

    3. ADMINISTRATOR 3.1. ADMIN ACCOUNT Logging in as the administrator you get certain privileges and access to the BUBBA settings. The default username and password for the administrator account is: Username: admin Password: admin This is the default administrator log in page.
  • Page 13 Click ‘Edit user’ on the admin row and then ‘Change password’. Read more about users in chapter USERS. Copyright © 2008 Excito...

  • Page 14: Services

    (the checkbox marked) or disable (the checkbox unmarked). • File sharing o FTP - The BUBBA FTP server o Anonymous FTP access - Allow users to log in to FTP server without a password. • Streaming o UPnP streaming - Universal Plug and Play (UPnP) server.

  • Page 15: Settings

    Workgroup - Devices in the same Workgroup may allow each other access to their files, printers, or Internet connection. Use the same workgroup name on BUBBA as on your computer. Copyright © 2008 Excito...
  • Page 16 Use static IP address settings - Static IP address, Netmask, Default gateway and Primary DNS are manually assigned to BUBBA by the administrator. Use this option if you not have a DHCP server in your network. Update saves your changes.

  • Page 17: Users

    4. USERS Most of BUBBA’s services are available on a per-user basis. It is recommended that you add one user for every person using BUBBA.

  • Page 18: Storage

    • All users have full access to installed printers. NOTE: The ‘admin’ user is a special user. Only ‘admin’ can change BUBBA’s settings, add new users and so on. Also note that ‘admin’ can’t be removed. Admin don’t have access to a download manager.
  • Page 19 From the inside, you can reach the storage area simply by browsing to ‘\\bubba\’ using an explorer window: Click ‘home’ to reach your private content, or ‘storage’ to reach general, non-private content. Copyright © 2008 Excito...

  • Page 20: Web Based File Manager

    5.2. WEB BASED FILE MANAGER When you aren’t at home, the simplest way to reach your files on BUBBA is using the web based file manager 1. Browse to: http://www.mydomain.com/web-admin/ or http://my_ip_address/web-admin/. For instance: http://82.214.205.104/web-admin/. If you don’t know your IP...
  • Page 21 You will see your location in the folder structure on the top left side; in the picture above you are located in /home/gargamel catalogue. To change position in the catalogue structure, click on the desired catalogue position (the /home catalogue in the picture below).   Copyright © 2008 Excito...
  • Page 22 In the Action drop down list you find the Filemanager tools: • To download a file from BUBBA to your PC, the easiest is to click on the file name. To download multiple files or folders to a zip archive, mark the items you wish to download and choose ‘Download as zip’...
  • Page 23 Copyright © 2008 Excito...

  • Page 24: Using The Download Manager

    5.3. USING THE DOWNLOAD MANAGER To download large files directly to BUBBA, without needing to leave your PC on at home, or without needing to load your work internet connection with private files, use BUBBA’s Download Manager. Just click ‘Downloads’ in the left menu, past the link to the file you want to download and press ‘add’.

  • Page 25: Using The Ftp Server

    Every user on BUBBA gets an FTP account created automatically. Connecting to the BUBBA FTP In your FTP client, type ‘bubba’ as server name, and your user name and password. If you want to reach Bubba from outside, read chapter REACHING BUBBA FROM OUTSIDE, for more information.

  • Page 26: The Media Servers

    7. THE MEDIA SERVERS Bubba has two media server technologies, DAAP and UPnP. DAAP is used only for music, while UPnP can be used for music, video and pictures (photos). Music All music placed in the ‘\storage\music’ folder will automatically be visible by ITunes (DAAP) or UPnP compatible music players on your network.

  • Page 27: Firefly Media Server

    7.1. FIREFLY MEDIA SERVER You can access the Firefly Media Server by browsing to: http://bubba:3689 User: admin Password: excito 7.2. MEDIATOMB MEDIA SERVER You can access the Mediatomb Media Server by browsing to: http://bubba:49152 Copyright © 2008 Excito...

  • Page 28: The Web Server

    8. THE WEB SERVER Adding your own content Browse to ‘\\bubba\home\web\’ and replace the ‘index.html’ file with your own web content. Your web content will be visible by browsing to http://bubba/ (http://bubba.local/ if using MAC) from inside your home network, or by browsing to ‘http://www.mydomain.com/’ from outside.

  • Page 29: The Email Server

    9.1. HANDLING INCOMING EMAILS If you have your own domain name it is possible to let BUBBA handle your incoming and outgoing email, instead of paying for this service. When adding a user, you automatically get an email account set up on your BUBBA.

  • Page 30: Reading Emails

    ‘http://mydomain.com/webmail/’. PC Email client To be able to read your email from home or from work, add BUBBA as an account in your email client (i.e. Microsoft Outlook). Simply type ‘bubba’ as incoming (IMAP) server, and use your personal user name and password.
  • Page 31 ‘Set up’ above. 2. Create the users user1 and user2 on BUBBA. 3. Open port 25 in your firewall, and point it to your BUBBA server. Now, email to ‘user1@yourdomain.com’ and ‘user2@yourdomain.com’ are received by BUBBA, and made available to the respective users.
  • Page 32 BUBBA uses postfix (a well known Linux email server) to receive email sent directly to BUBBA. Postfix handles email sent locally (within your LAN) to ‘bubba’ or to BUBBA’s IP address, To also handle email sent from outside your LAN you need to forward port 25 in your firewall to BUBBA (actually to BUBBA*s IP address).

  • Page 33: Reaching Bubba From Outside

    (commonly called internet router or gateway) installed between BUBBA and your internet connection, you have to make the firewall let certain traffic through in order to get the BUBBA functionality available from the outside. This is commonly referred to as ‘port forwarding’.

  • Page 34: External Ip Address

    • Your router may support automatic updating of your DynDNS account. Please refer to your router manual. • Install a DynDNS client on your BUBBA. At the moment there is no web interface for controlling the settings but if you have some Linux skills please see: http://forum.excito.net/viewtopic.php?t=790&highlight=dyndns.

  • Page 35: Firmware Upgrade

    11. FIRMWARE UPGRADE BUBBA’s firmware can be easily upgraded to gain new functionality. Browse to http://bubba/web-admin/ (http://bubba.local/web-admin/ using MAC), log in as ‘admin’ and click ‘settings’ and ‘Maintenance’. Press ‘Update software’, and the update is automatically performed. Copyright © 2008 Excito...

  • Page 36: Backup

    12.1. PERSONAL DATA AND EMAIL ON YOUR PC BUBBA is a perfect medium for backup. One simple solution is to create a shortcut on your desktop, pointing directly to your private BUBBA folder.

  • Page 37: Installing/Reinstalling Software

    8. Hold the power button keeping it pressed, and plug in power cord to BUBBA again. 9. Wait until BUBBA begins to flash it’s LED, now it’s safe to release the button. BUBBA will now automatically format the disk, and install the Linux file system on it.
  • Page 38 The Linux kernel is located in internal FLASH (a type of non- volatile memory) on BUBBA, thus not on the disk drive. This allows for the reinstallation functionality described above, even without disk, BUBBA can boot and perform rescue operations. The Linux file system is located on disk though, to allow for unlimited space when installing applications.

  • Page 39: Getting Inside Your Bubba

    14.1. SSH In order to get shell access to your BUBBA, use a SSH client (i.e. PuTTY for Windows). For security reasons, neither ‘admin’ nor ‘root’ have direct SSH access. Log on using your normal user name and password, and use ‘su’...

  • Page 40: Installing A Disk

    This instruction applies to users who wish to exchange their disk, or to those who have bought Bubba without disk. The Bubba server interior is subject to ESD (Electro-Static Discharge) damage, and appropriate measures must be taken to prevent damage.
  • Page 41 5. Gently slide the hard disk and circuit board into the casing. If necessary, loosen the front panel a bit to allow for easier slide. Make sure the LED hits the front panel hole. 6. Fasten all screws securely. All done! Copyright © 2008 Excito...

  • Page 42: Technical Data

    128 MByte internal RAM LAN standard: 10/100BASE-TX USB 2.0 (12 Mbps) type A to hub, printer, memory stick or USB disk Size: 184 x 114 x 43 mm, weight: 1700 g Noise: < 27 dB Power: < 10W (active) Copyright © 2008 Excito...

  • Page 43: Faq

    A: Yes, you can! See our mini-shop for prices. It is however important to consider the following before doing so: • Bubba doesn't work without disk! You have to install a disk yourself. • The warranty doesn't apply if you would break anything during installation.
  • Page 44 (press 'update' or 'reload' in your browser). Sometimes, even a full cache cleanup is required. Q: My Bubba boots forever (LED blinks)! After a reboot, the LED never stops blinking. A: Linux is probably performing a disk scan to check for errors due to an abnormal power-down.
  • Page 45 Q: When using Windows explorer, I can't access other user's folders. A: You have the same user name for your Windows log in as one of Bubba's users. Windows assumes that you want to log in as that user, and denies access to other users folders. There are two workarounds: 1) Change user name for either your windows account, or the user account at Bubba.

  • Page 46: Support

    (or superior) in all material respects to the defective Hardware. Repaired or replacement hardware will be warranted for the remainder of the original Warranty Period or ninety (90) days, whichever is longer, and is subject to the same limitations and exclusions. If a material defect is incapable of correction, or if Excito determines that it is not practical to repair or replace the defective Hardware, the actual price paid by the original purchaser for the defective Hardware will be refunded by Excito upon return to Excito of the defective Hardware.
